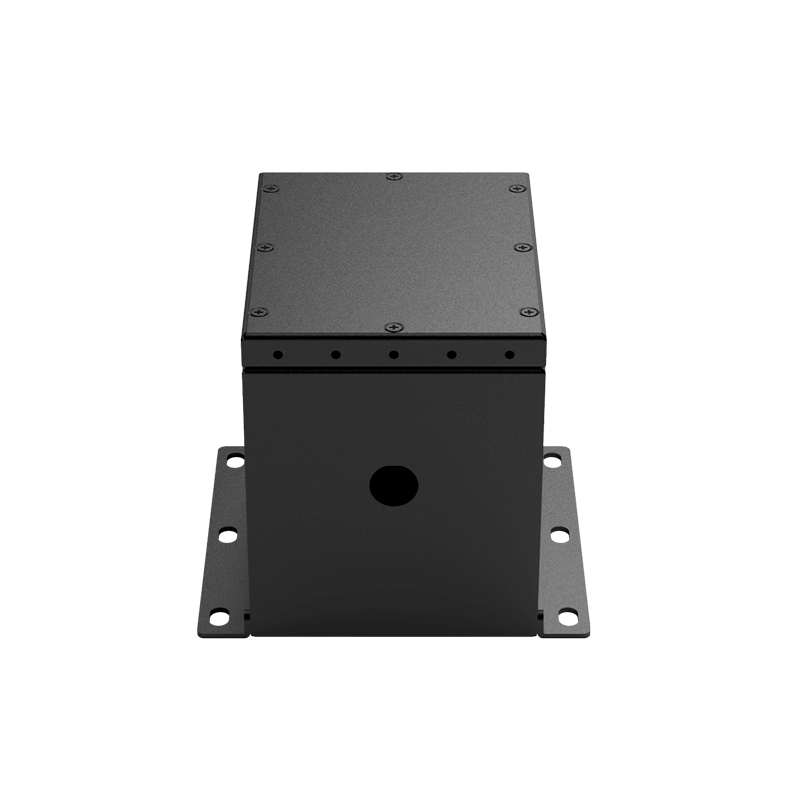

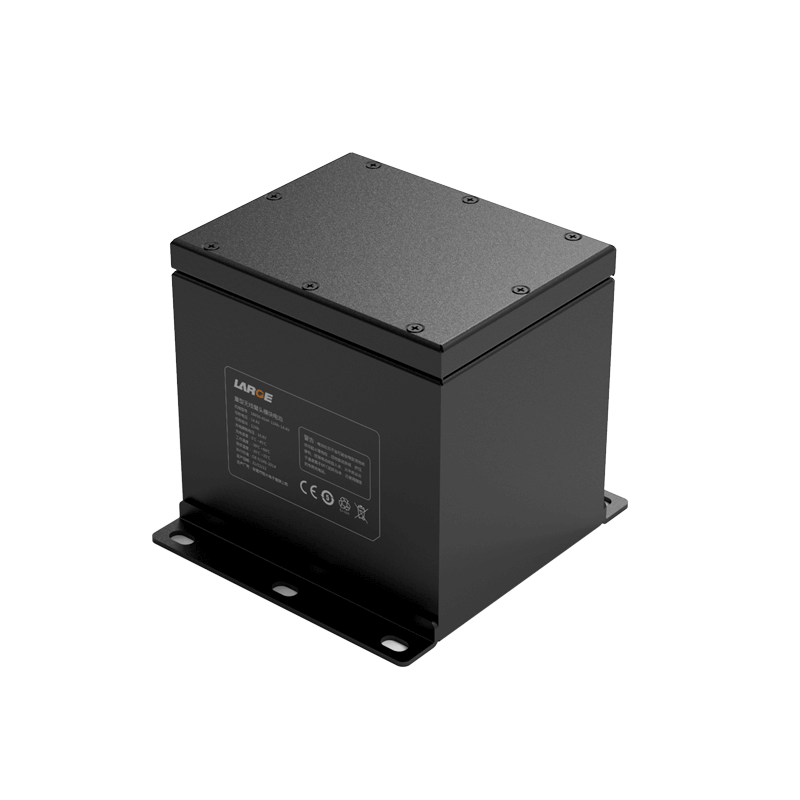

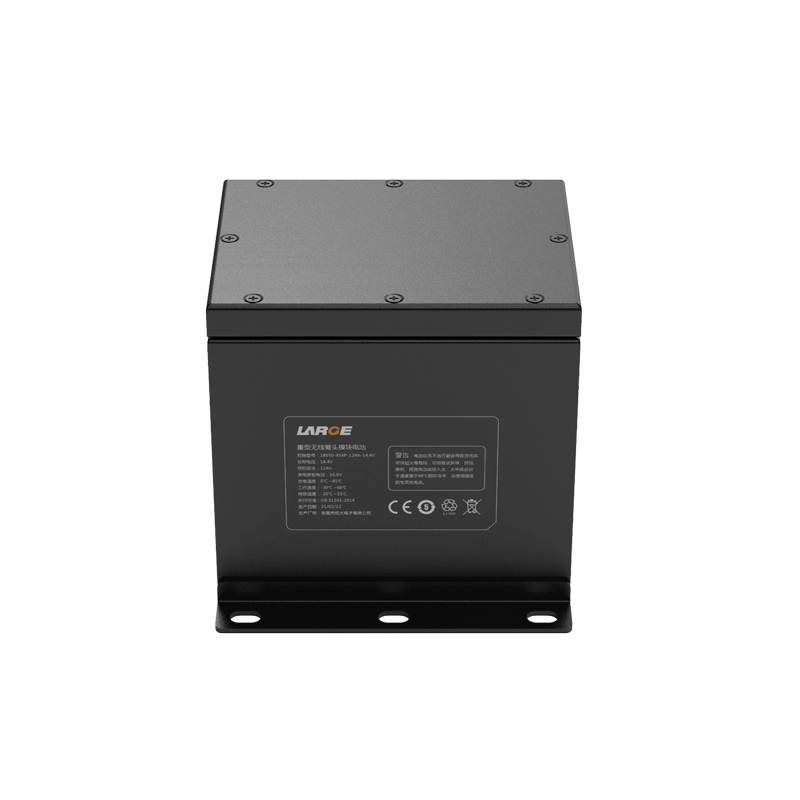

Custom Lithium ion Battery Pack
Product number: 36AQ363-04
Cell model: 18650-3000MAH-3.6V
Specification: 18650-4S4P-12AH-14.4V
Product size: 131*120*115mm (Max)
Nominal voltage: 14.4V
Nominal capacity: 12h
Product internal resistance: ≤180mΩ
Charging voltage: 16.8V
Charging current: ≤ 5.6A
Discharge current: ≤ 5.6A
Discharge cut-off voltage: 11.0V
Battery weight: 1000G
Charging temperature: 0 ~ 45℃
Discharge temperature: -30 ~ 65 ℃
Storage temperature: -20 to 35 ° C
Battery case: aluminum alloy case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection, etc.
Application: heavy wireless arm equipment, lifting equipment
Product Features
1.Aluminum shell increases battery reliability and firmness.
2.Connector plug terminal: Increase electrical conductivity reliability by using an aviation plug output mode.
3.Battery protection management: Adopt dedicated lithium battery protection chip with good stability, high precision monitoring and precise control, temperature protection and other functions to eliminate security risks to the greatest extent.
4.Data communication management adopts 485 communication for precise data transmission, accurate temperature control, and real-time battery status monitoring to minimize security risks.
5.BMS communication uses opto-isolator. The product supports 485 bus for optional communication, which supports networking and communication baud rate of 9600bps.
6.The battery pack is safe, has good discharge performance and long cycle life.
7.The battery pack has a long cycle life and conforms to the values of low-carbon, energy saving and environmental protection.
