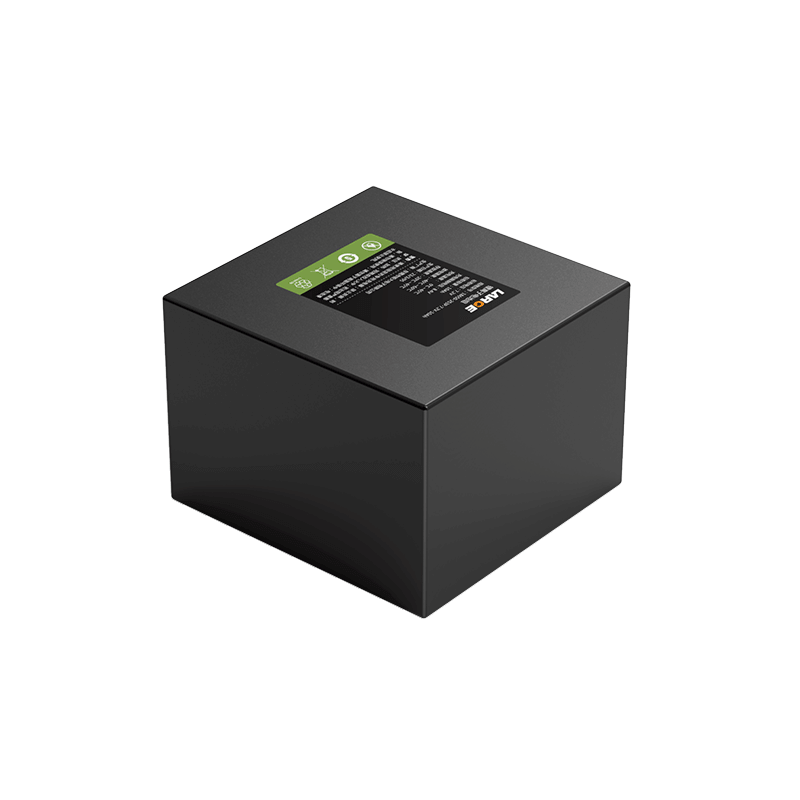

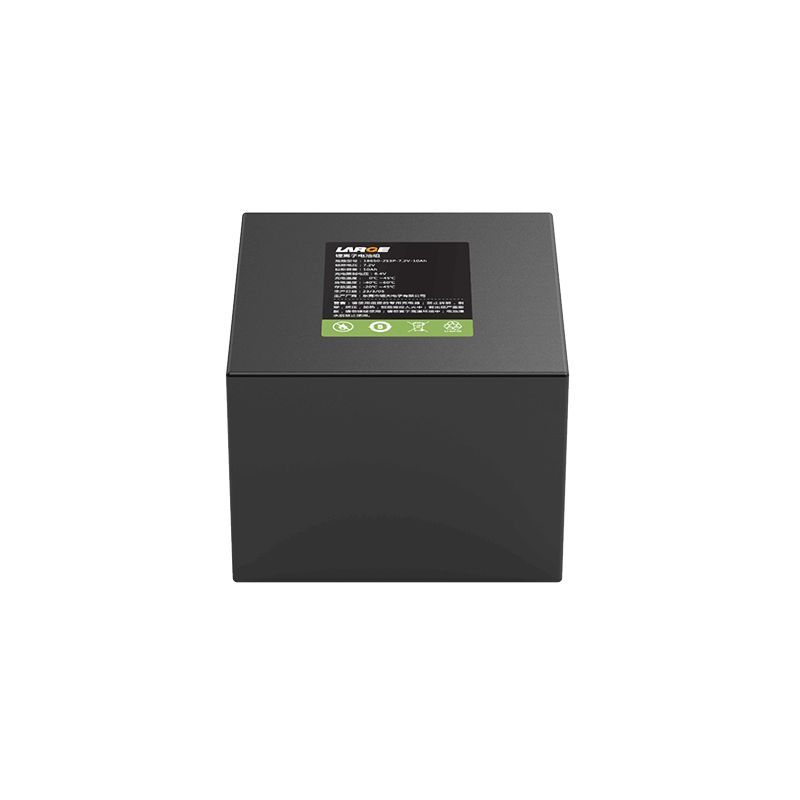

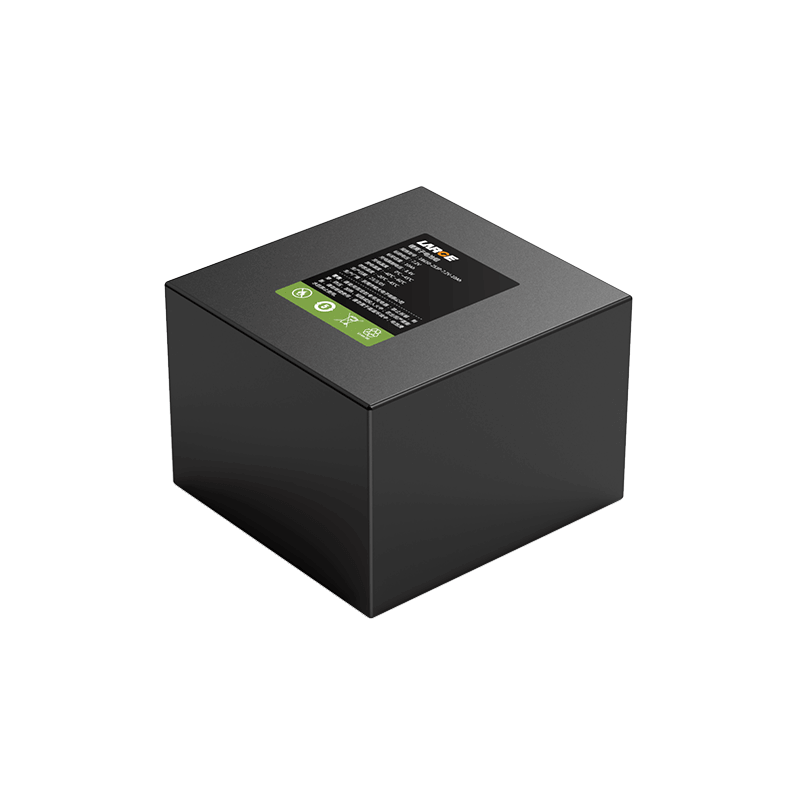

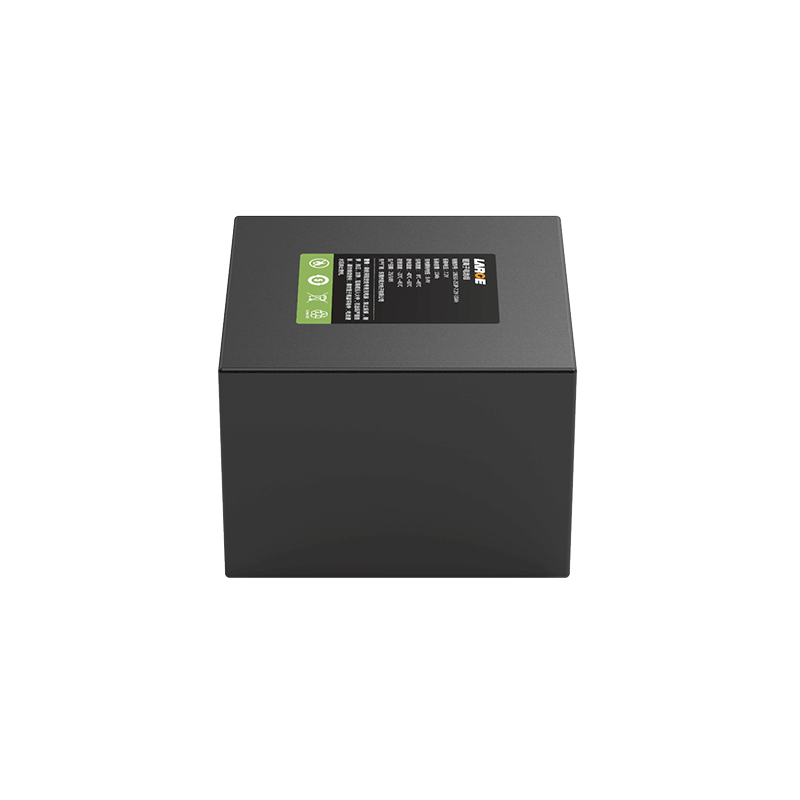

Custom Lithium ion Battery Pack
Product number: 04BQ118-36T
Battery model: 21700-4000mAh-3.6V
Battery specification: 21700-3S2P-8000mAh-10.8V
Product size: 75.5*52.8*72mm
Nominal voltage: 10.8V
Nominal capacity: 8000mAh
Internal resistance of finished product: ≤100mΩ
Charging voltage: 12.6V
Charging current: ≤4.0A
Discharge current: ≤7.0A
Discharge cut-off voltage: 7.5V
Battery weight: 540g
Charging temperature: 0 ~ 45℃
Discharge temperature: -35 ~ 60℃
Storage temperature: 25±3℃
Battery package: Blue PVC heat shrink film
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: multi-function camera lighting device, portable lighting, mobile lighting
Product Features
1.Blue PVC heat shrink film package is simple and reliable,and easy to install;
2.The battery pack is assembled with special battery cell bracket, protected by epoxy plate and connected by special nickel sheet, which has good shock and impact resistance.
3.The battery pack adopts JST special connector for good stability and contact performance;
4.Low temperature -35℃ discharge capacity is more than 80%;
5.Use special lithium-ion battery protection chip, with high stability, high precision monitoring, precise control, temperature protection and other functions, to minimize safety risks;
6.The battery pack has long cycle life, in line with low carbon, energy saving, environmental protection value concept.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
