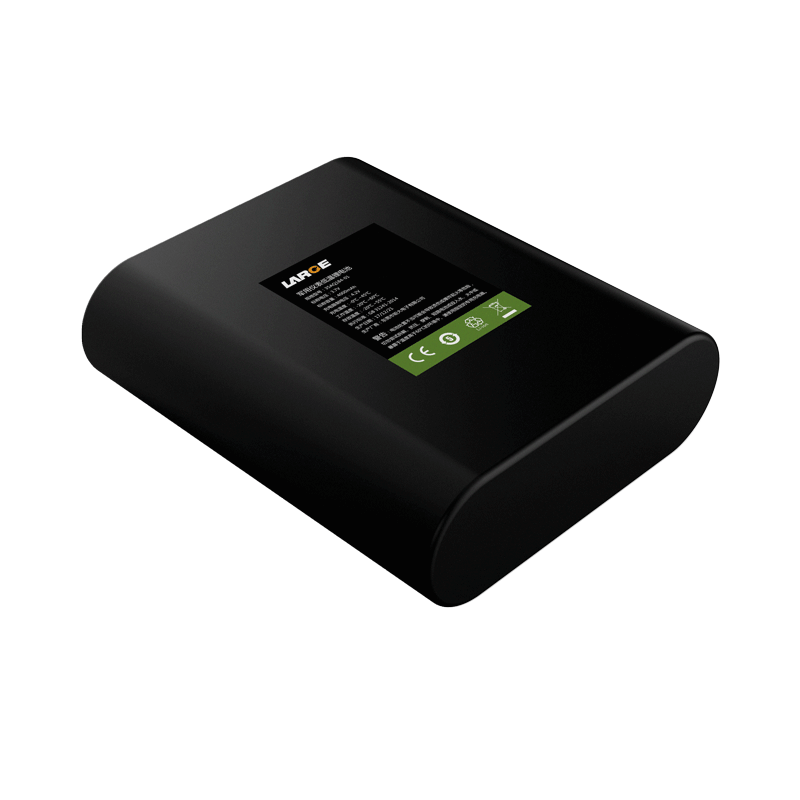

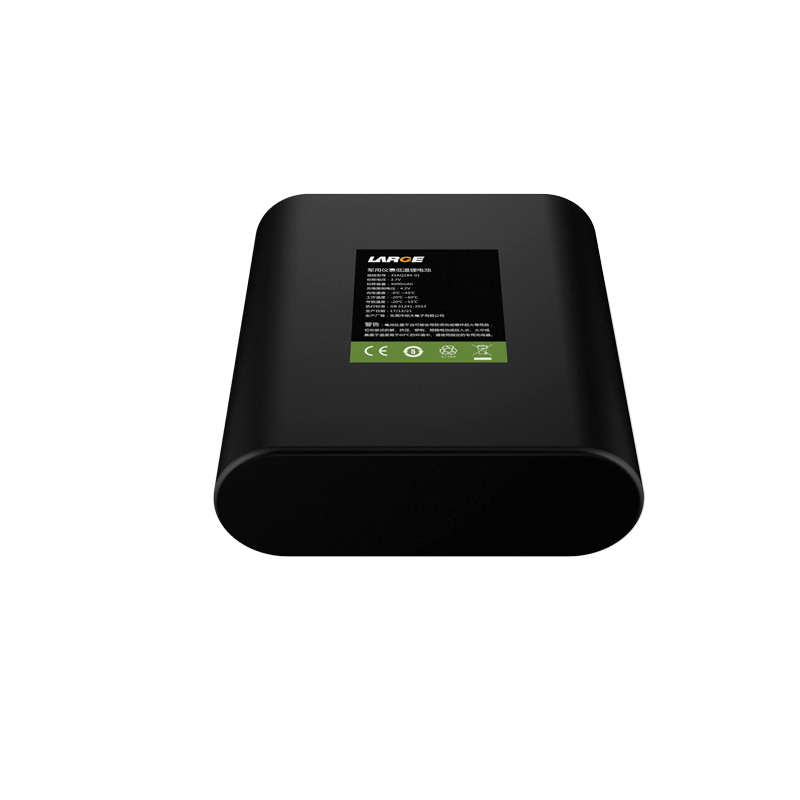

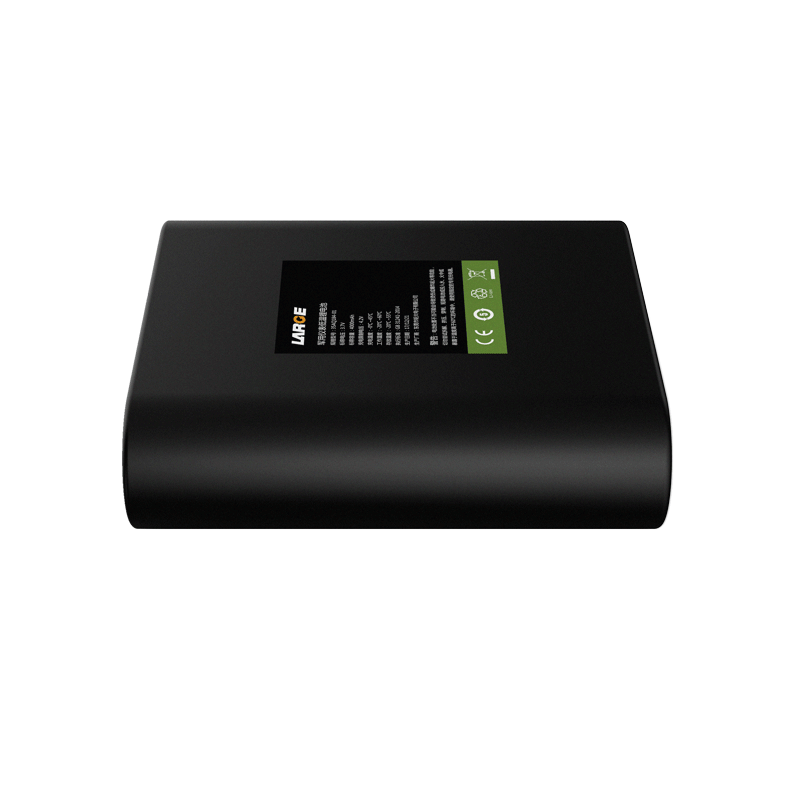

Custom Lithium ion Battery Pack
Product number: 35AQ184-01
Cell model：18650/3.7V/2000mAh
Battery specification: 18650-1S2P/3.7V/4000mAh
Nominal voltage：3.7V
Nominal capacity：4000mAh
Charging voltage: 4.2V
Charging current: ≤2A
Discharging current: 2A
Instant discharging current: 4A
End-off voltage: 2.5V
Internal resistance: ≤120mΩ
Battery weight: 90g
Product dimension: 70*40*20mm（Max）
Charging temperature：0～45℃
Discharging temperature: -40～60℃
Storage temperature: -20～35℃
Battery case: PVC
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: low temperature instrument
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
