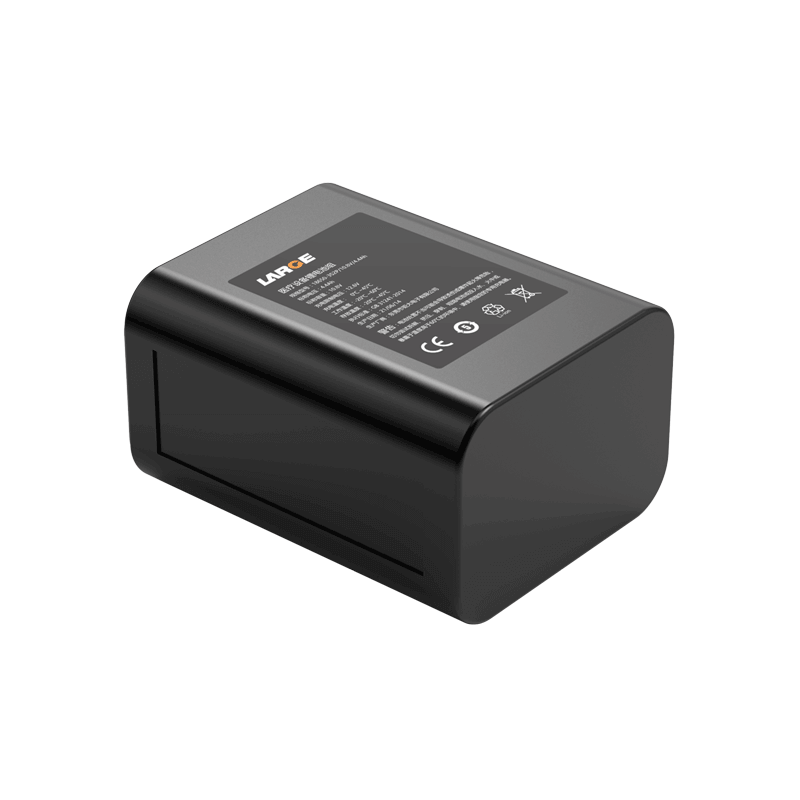

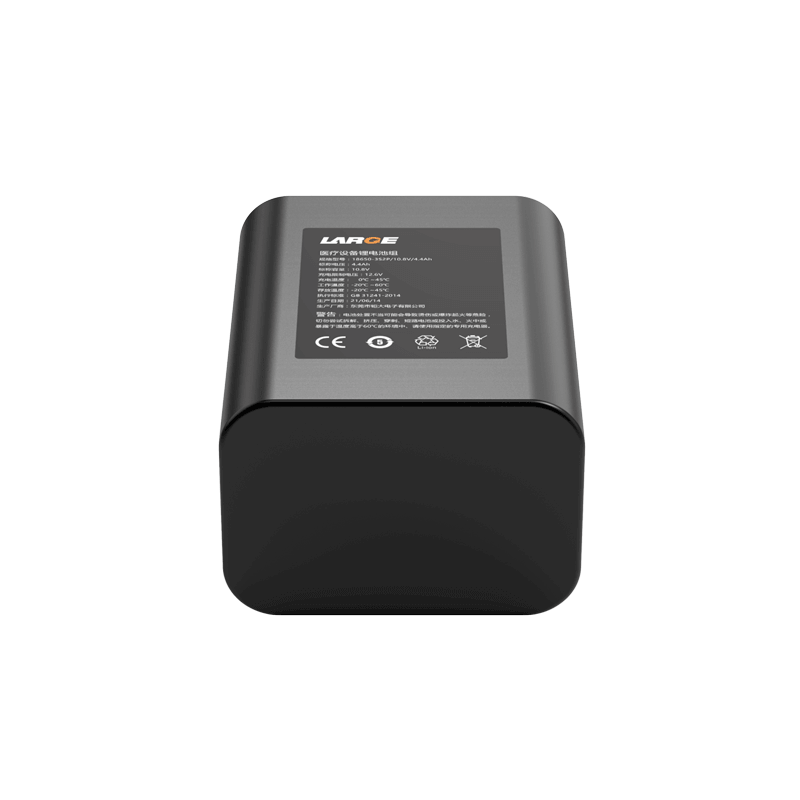

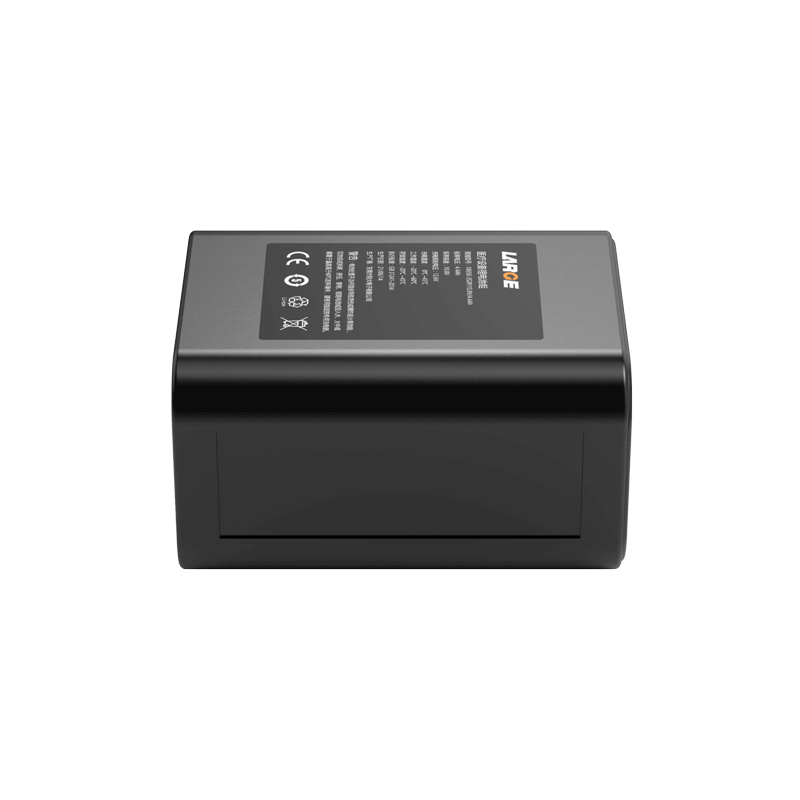

Custom Lithium ion Battery Pack
Project number: 33DZ029-01
Cell model: 18650/3.6V/ 2.5AH
Battery specification: 18650-3S2P/10.8V/4.4Ah
Nominal voltage: 10.8V
Nominal capacity: 4.4Ah
Charging voltage: 12.6V
Charging current: ≤ 2.2A
Discharge current: 2.2A
Instantaneous discharge current: 6-8A
Discharge cut-off voltage: 7.5V
Finished product internal resistance: ≤150mΩ
Battery weight: 300G
Product size: 74*57*38mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Medical batteries
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
