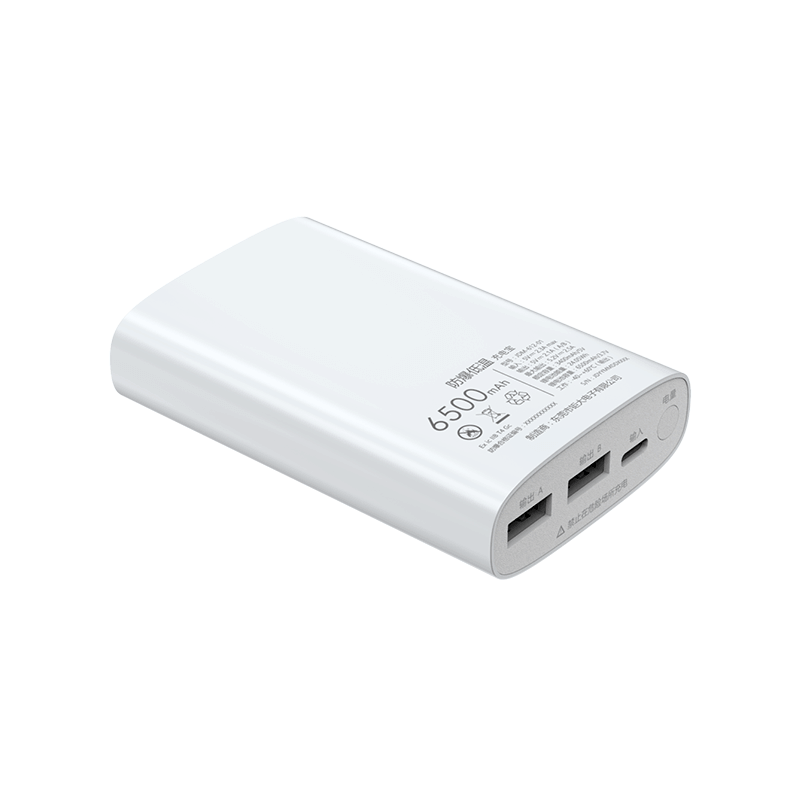

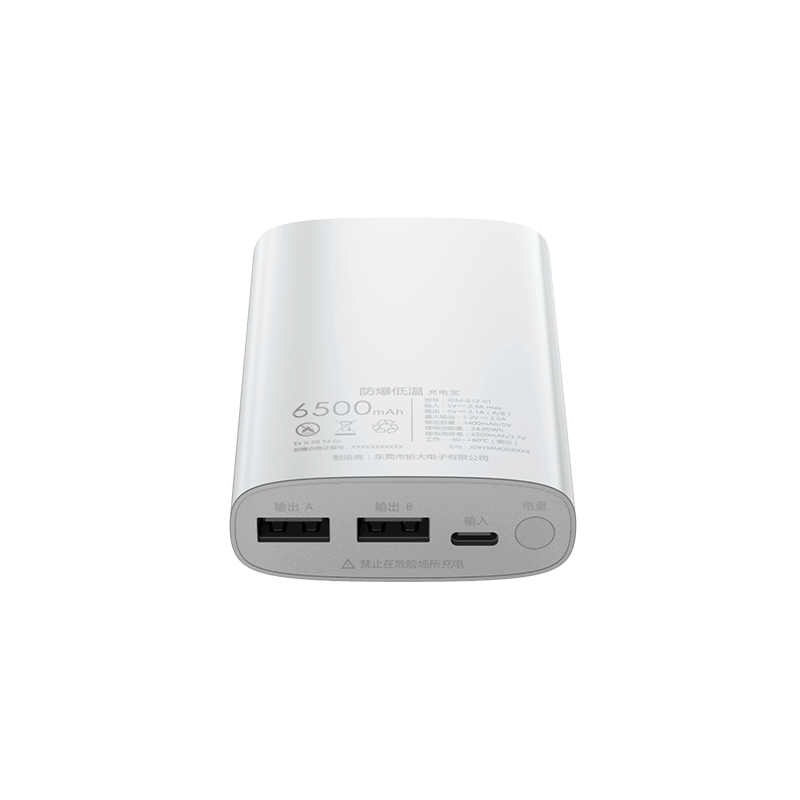

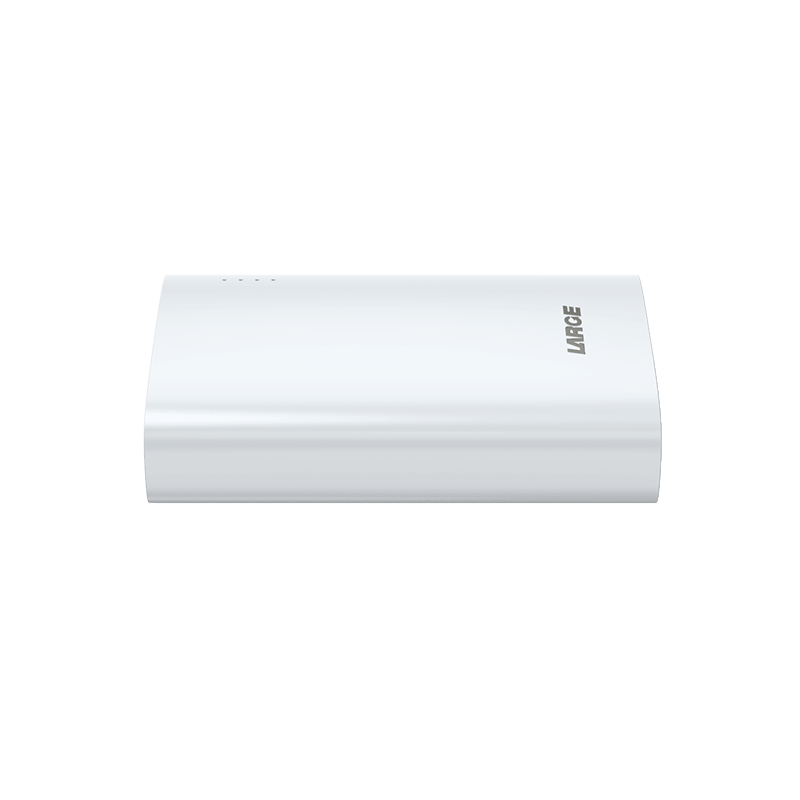

Custom Lithium ion Battery Pack
Product number: 40AQ038-01
Battery model: ICR18650L-2200
Battery specification: 5V-6500mAh
Nominal voltage: 3.7V
Nominal capacity: 6500mAh
Charging voltage: 5V
Charging current: ≤2.3A
Discharge current: 2.2A
Instant discharge current: 2.2A
Discharge cut-off voltage: 3.0V
Finished internal resistance: ≤120mΩ;
Battery weight: 183±30g
Product size: 94*61.5*23mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ +55℃
Storage temperature: -20 ~ +35℃
Battery package: plastic
Lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection, ESD protection, etc
Application: Mobile equipment backup power supply (mainly used in explosion-proof field)
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
