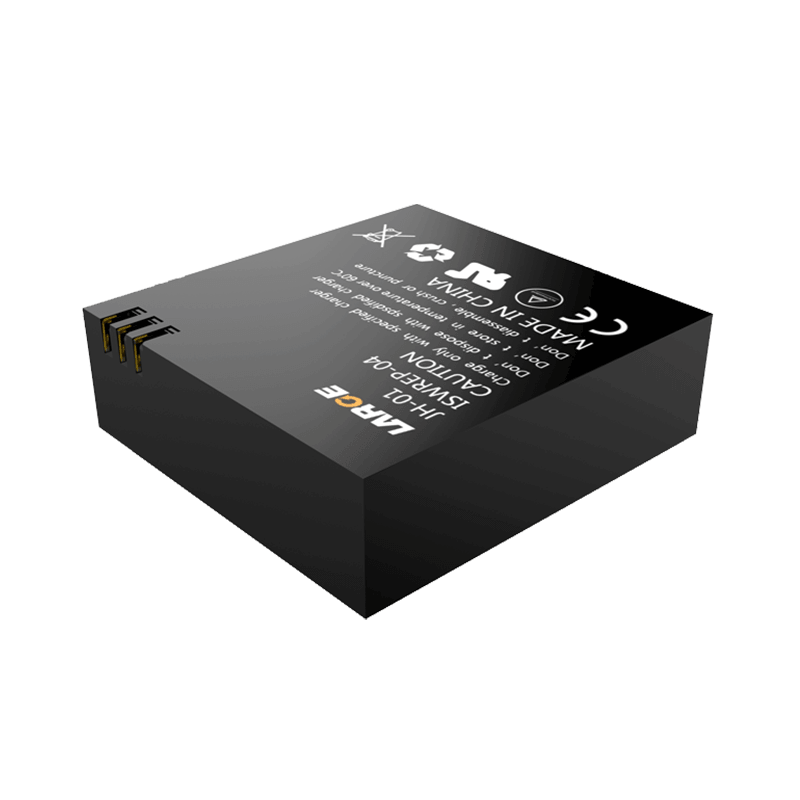

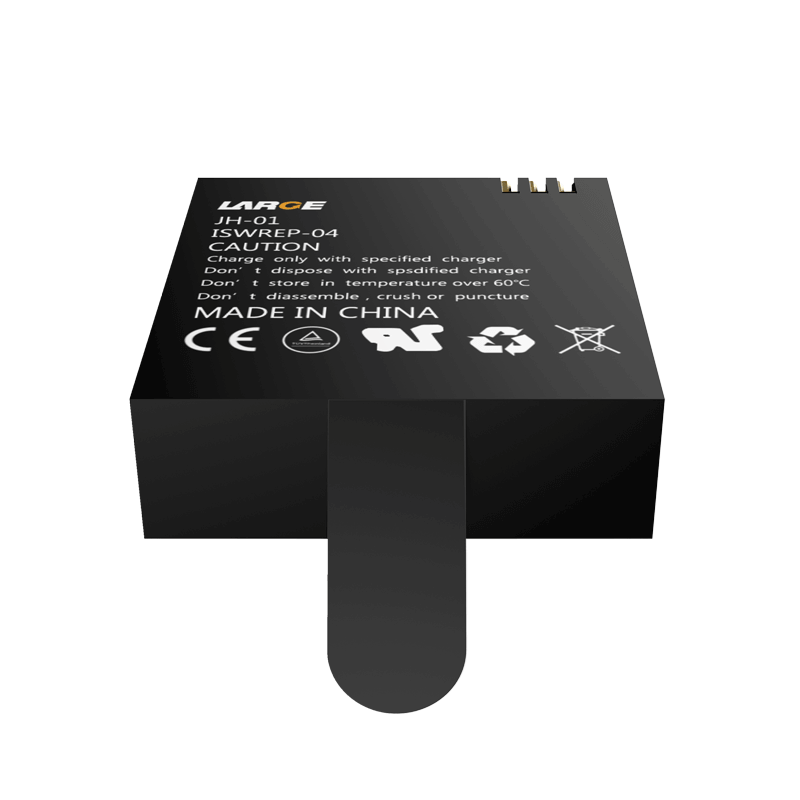

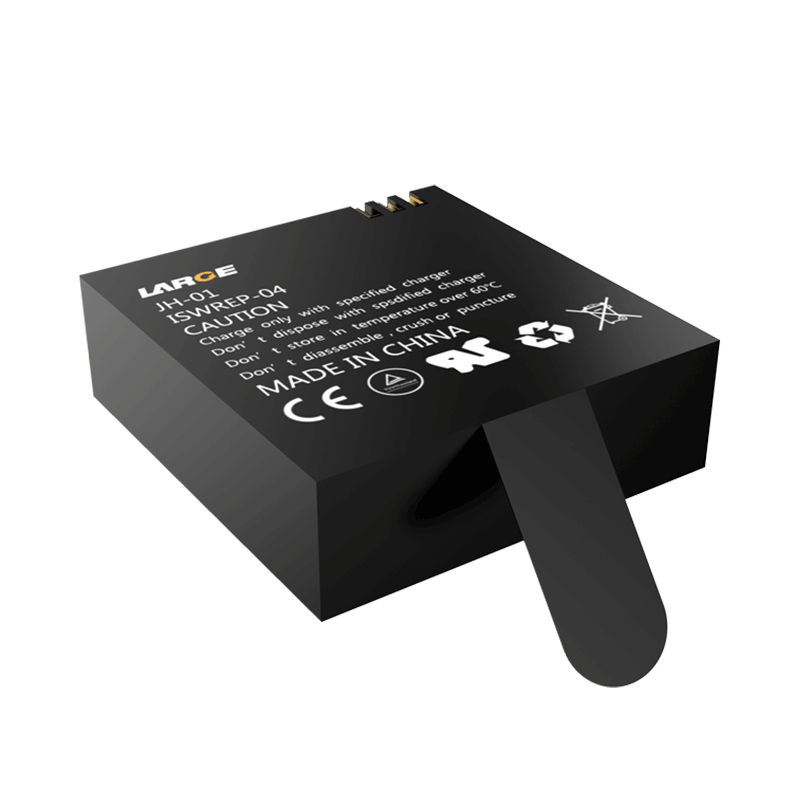

3.7V 1000mAh Lithium Polymer Battery for Sports Camera

Product number: 04DQ0335-01

Cell model：963030/3.7V/1000mAh

Battery specification: 963030-1S1P/3.7V/1000mAh

Nominal voltage：3.7V

Nominal capacity：1200mAh

Charging voltage: 4.2V

Charging current: ≤1.0A

Discharging current: 1.0A

Instant discharging current: 1.0A

End-off voltage: 3.0V

Internal resistance: ≤180mΩ

Battery weight: 20g

Product dimension: 10.2*34*32mm（Max）

Charging temperature：0～45℃

Discharging temperature: -20～60℃

Storage temperature: -20～45 ℃

Temperature protection: /

Battery case: engineering plastic ABS+PC

Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.

Application field: sports camera, motion DV
