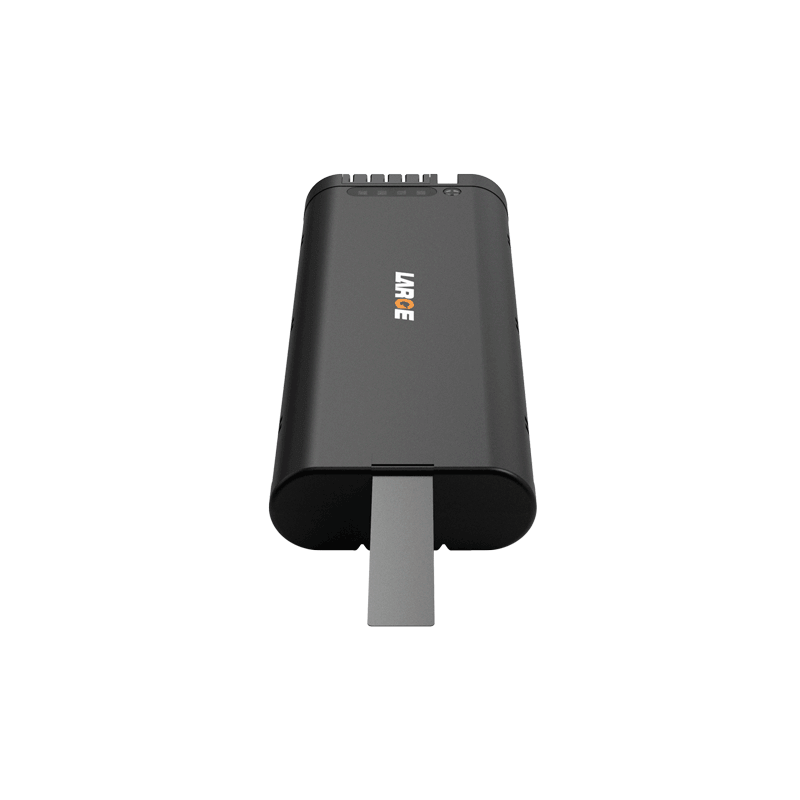

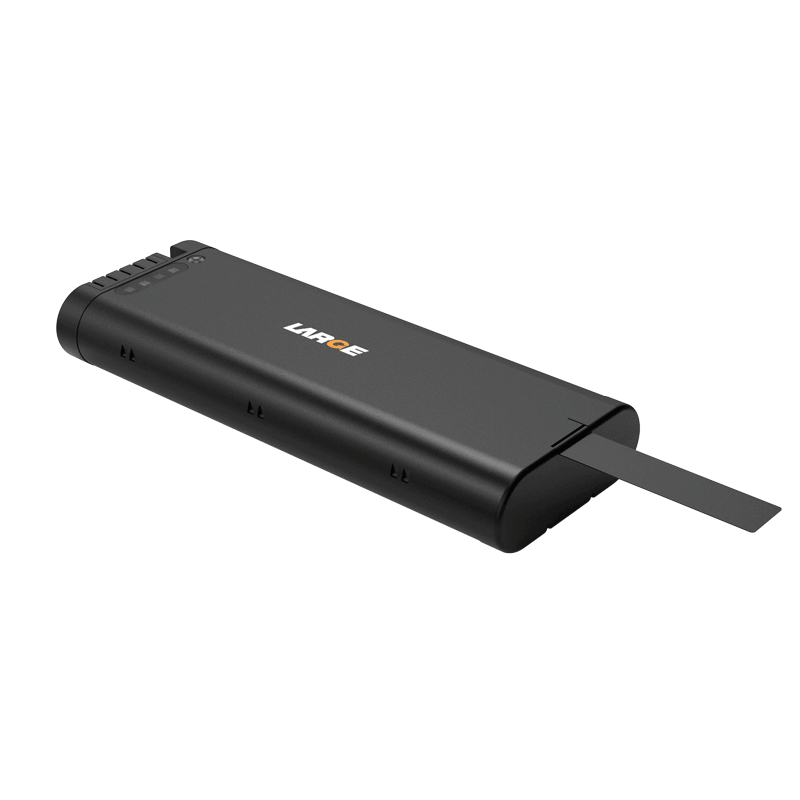

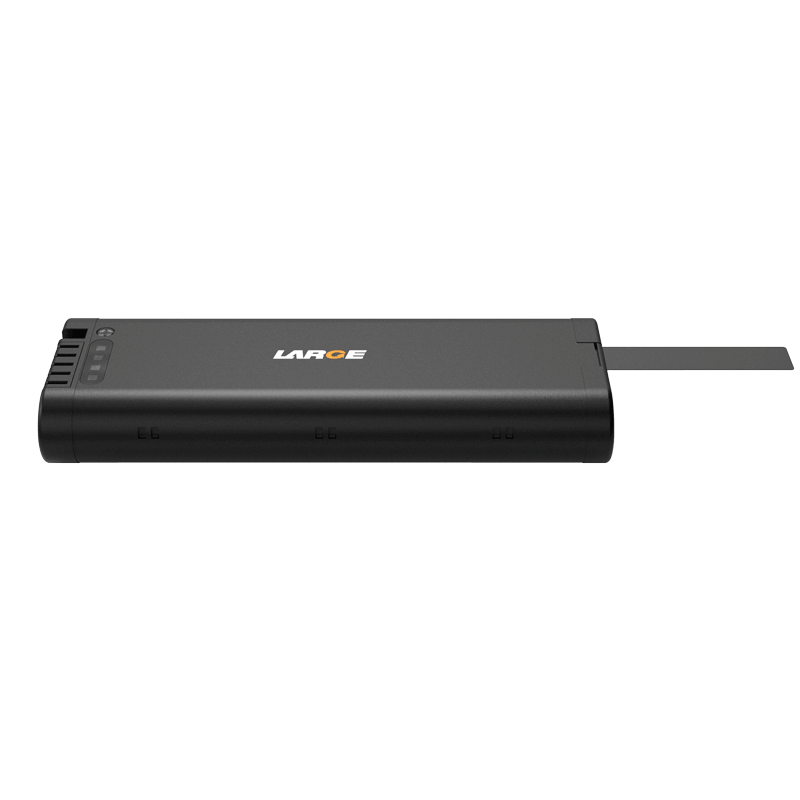

10.8V 6.4Ah 18650 Samsung medical ventilator ternary lithium battery pack
- Product Number: 41DZ012-01
- Nominal voltage: 10.8V
- Nominal capacity: 6400mAh
- Battery size: 154.65×59×22.2mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Medical equipment
18650 10.8V 6.4Ah medical ventilator lithium battery pack
Product Number: 41DZ012-01
Battery cell model: INR18650-35E/3350mAh/3.6V
Battery specification: 6.4Ah-10.8V
Nominal voltage: 10.8V
Nominal capacity: 6.4Ah
Charging voltage: 12.6V
Charging current: ≤3.2A
Discharge current: 3.2A
Instantaneous discharge current: 6.4A
Discharge cut-off voltage: 8V
Finished product internal resistance: ≤150mΩ
Battery weight: 400g
Product dimensions: 154.65×59×22.2mm (L×W×H)
Charging temperature: 0-45℃
Discharge temperature: -20 to 55℃
Storage temperature: -20 to 45℃
Battery housing: Industrial grade
Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, balancing, with Smbus communication, etc
Application field: Notebook category
Product features
The maximum sustainable discharge is 6.4A.
It adopts imported software management chips and Smbus communication function, with precise data transmission and accurate temperature control, eliminating potential safety hazards to the greatest extent.
It adopts imported high-capacity 18650 ultra-reliable and safe battery cells.
The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
