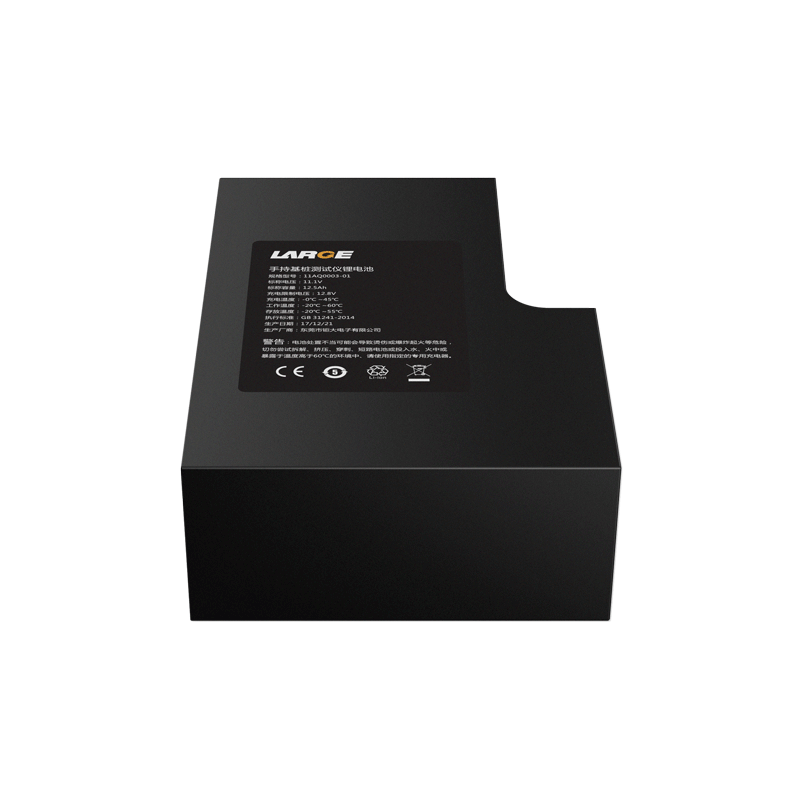

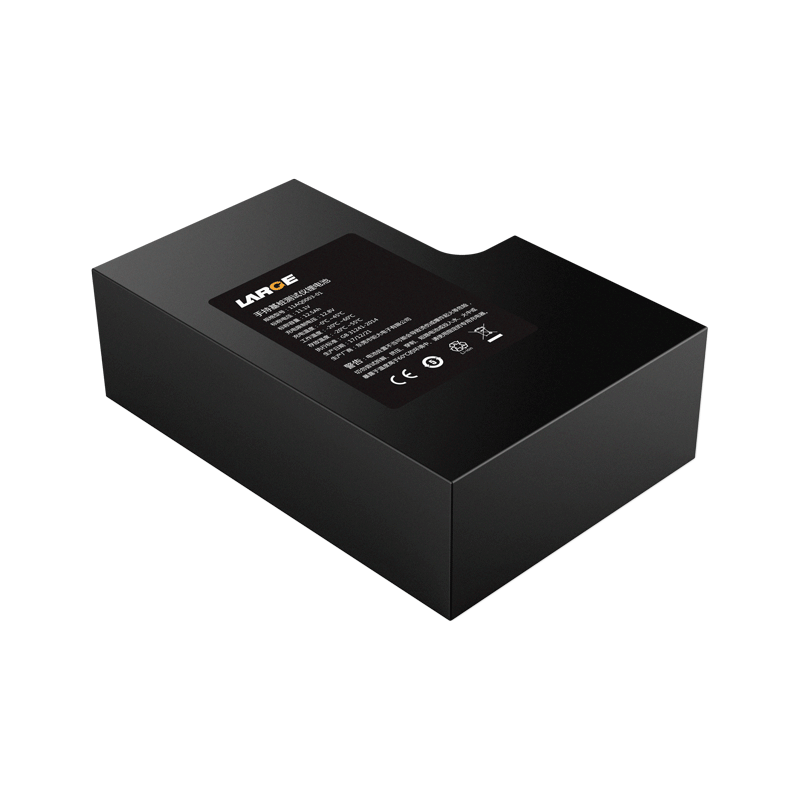

11.1V 12500mAh Lithium-ion Battery (18650)
Using Sanyo Cells, For Handheld Foundation Pole Tester
Product number: 11AQ0003-01
Cell model：18650/3.7V/2.5Ah
Battery specification: 18650-3S5P/11.1V/12.5Ah
Nominal voltage：11.1V
Nominal capacity：12.5Ah
Charging voltage: 12.8V
Charging current: ≤2A
Discharging current: 2A
Instant discharging current: 3.0A
End-off voltage: 9.0V
Internal resistance: ≤200mΩ
Battery weight: 800g
Product dimension: 131*90*40mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60℃
Storage temperature: -20～35℃
Battery case: blue PVC
Lithium-ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: handheld pile detector, measurement and control instrument for rail traffic, etc.
