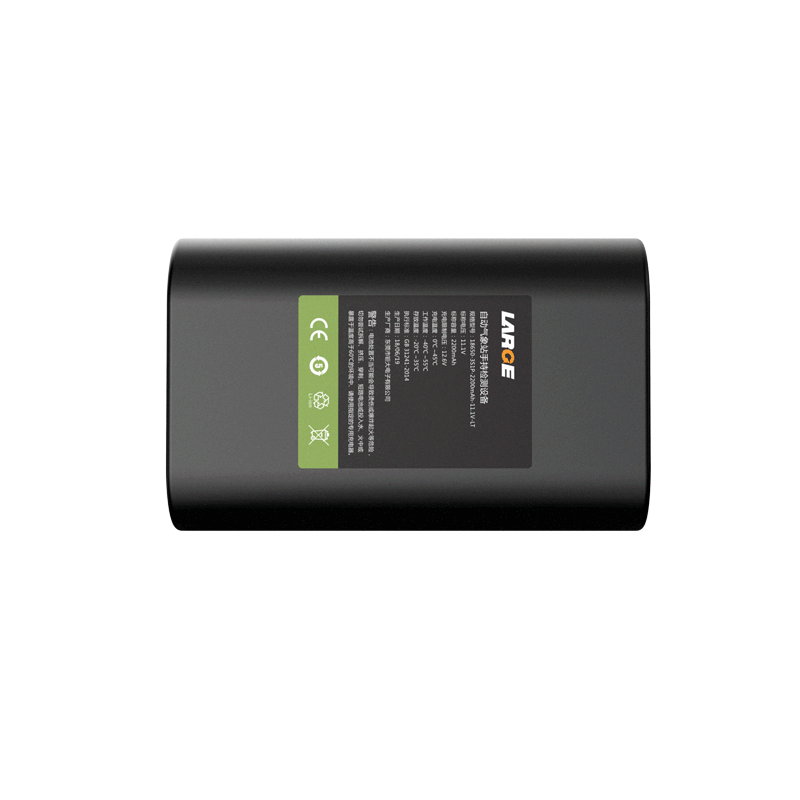

11.1V 2200mAh Lithium-ion Battery (18650)
- Model number:05DQ0035-01
- Nominal voltage:11.1V
- Nominal capacity:2200mAh
- Battery cell:18650-2200mAh-3.7V
- Dimension:67.5*37.5*37mm（MAX）
- Application:handheld testing equipment of automatic meteorological station
Product number: 05DQ0035-01
Cell model：18650-2200mAh-3.7V
Battery specification: 18650-3S1P-2200mAh-11.1V-LT
Nominal voltage：11.1V
Nominal capacity：2200mAh
Charging voltage: 12.6V
Charging current: ≤1100mA
Discharging current: ≤2200mA
End-off voltage: 7.5V
Internal resistance: ≤250mΩ
Battery weight: about 149g
Product dimension: 67.5*37.5*37mm（MAX）
Charging temperature：0～45℃
Discharging temperature: -40～55 ℃
Storage temperature: -20～35 ℃
Battery case: PVC
Lithium ion battery protection: overcharge protection, over-discharge protection, discharge overcurrent protection and discharge short circuit protection.
Application field: handheld testing equipment of automatic meteorological station
