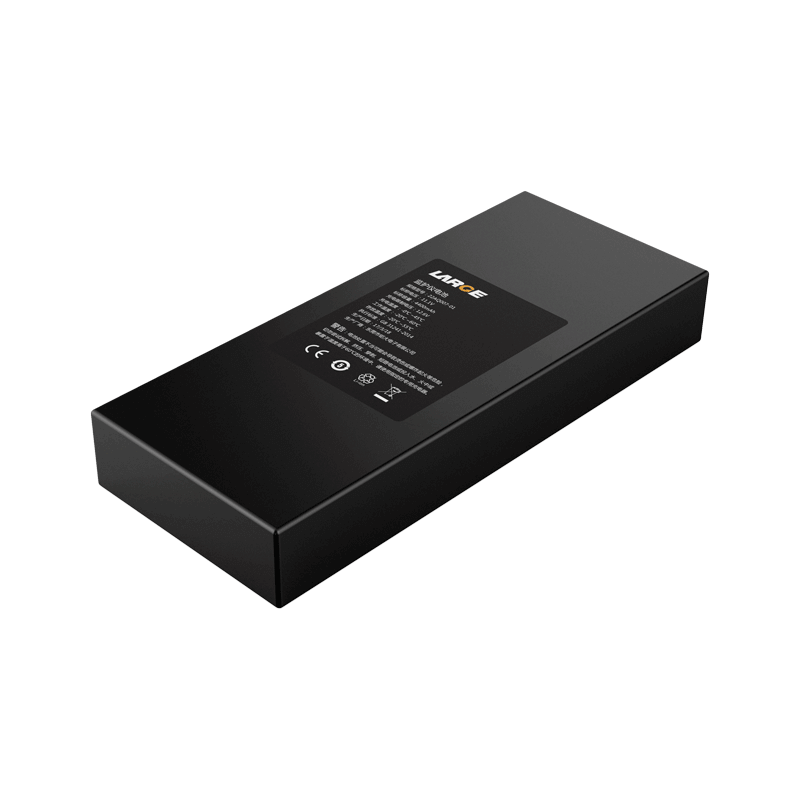

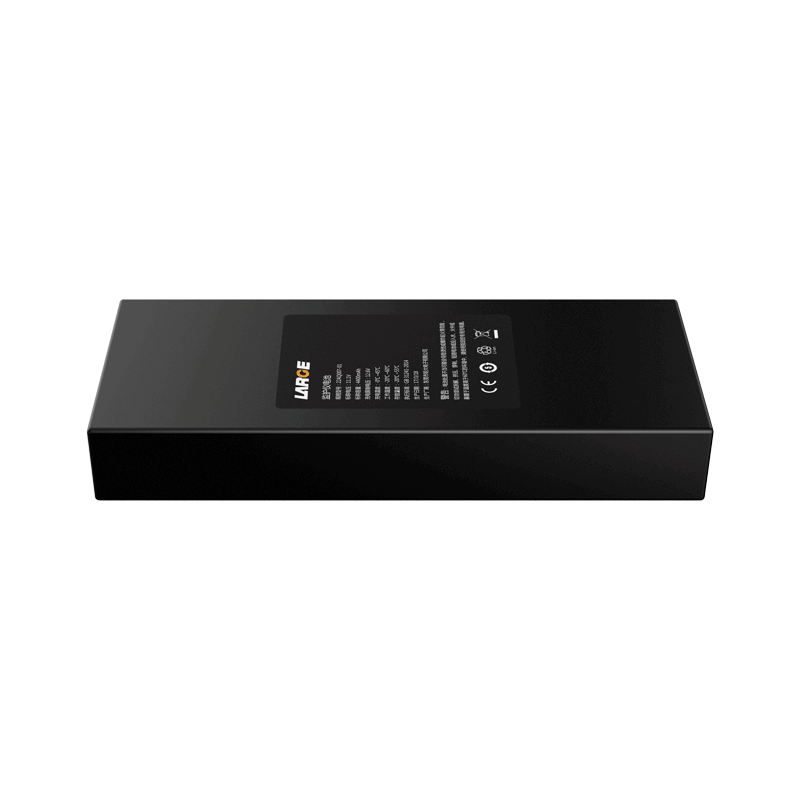

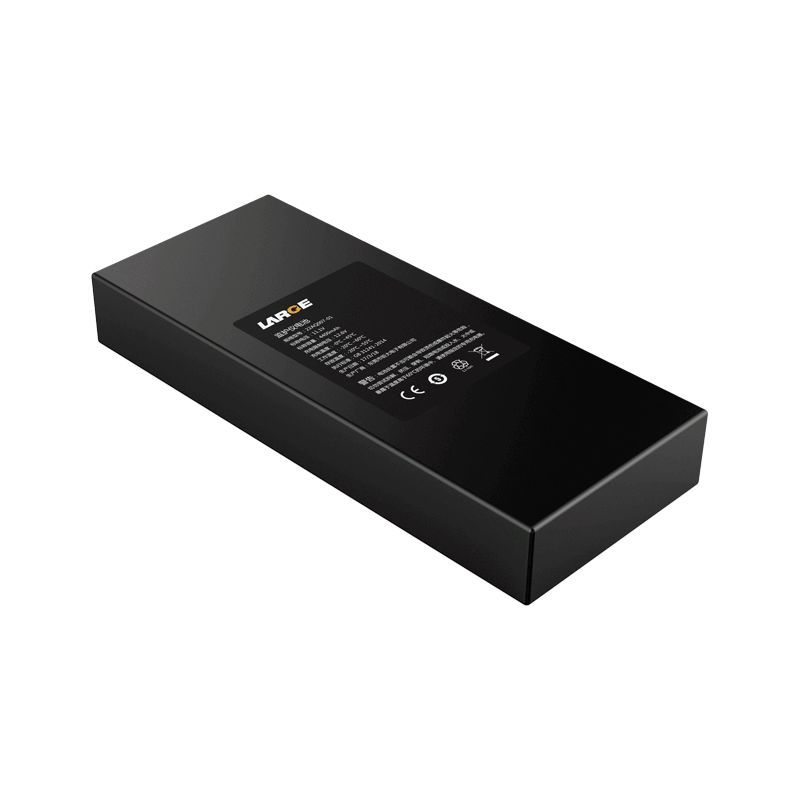

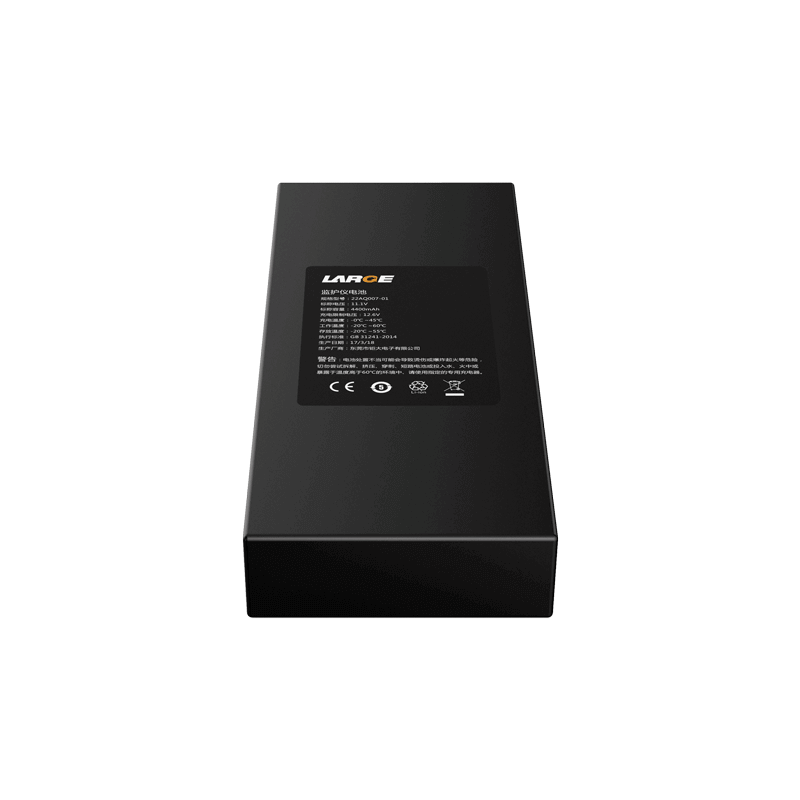

11.1V 4400mAh 18650 Medical Monitoring Device Lithium Battery
Lithium battery packs suitable for medical equipment
Product Number: 22AQ007-01
Rated voltage: 11.1V
Rated capacity: 4400mAh
Battery size: 135.5mm x 56.5mm x 19.5mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Medical equipment
Project Number: 22AQ007-01
Battery Model: SANYO18650/4400mAh/11.1V
Nominal Voltage: 11.1V
Nominal Capacity: 4400mAh (discharged at 0.2C to 8.25V)
Factory Voltage: ≥11.1V
Product Size: MAX 135.5×56.5×19.5mm
Product Resistance: ≤380mΩ
Output Type: UL1007 22# 350mm (red and black), stripped wire 3±0.5mm
Execution Standard: GB/T 18287-2000
Shelf Life: 12 months
Operating Temperature: 0~45℃ (charging), -20~60℃ (discharging)
Battery Charging: Charging Limit Voltage: 12.6V Charging Current: 2200mA (standard), 4400mA (maximum)
Battery Discharging: Discharge Cut-off Voltage: 8.25V Discharge Current: 880mA (standard), 4400mA (maximum)
