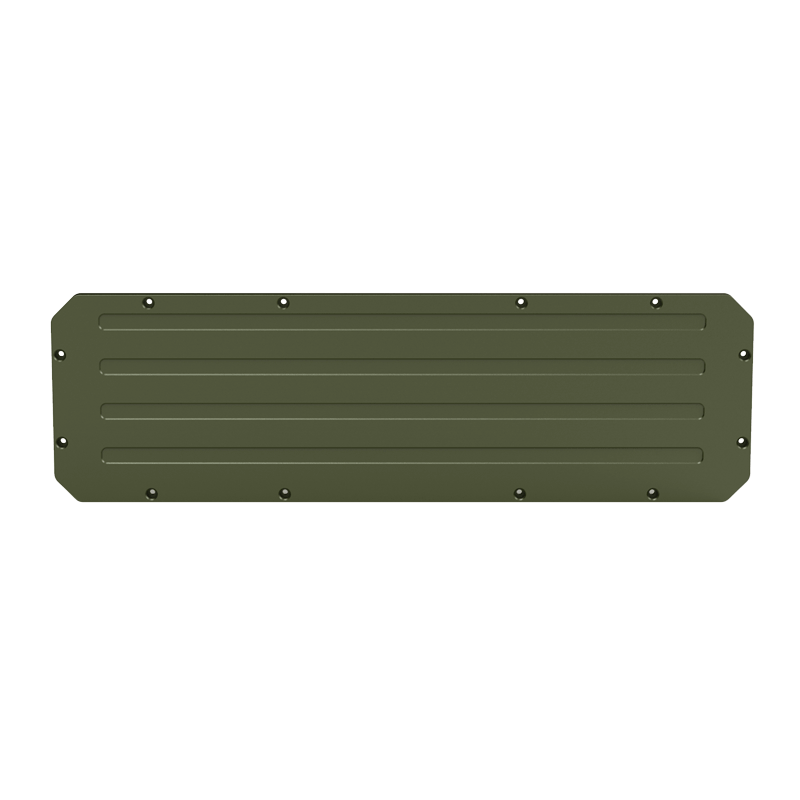

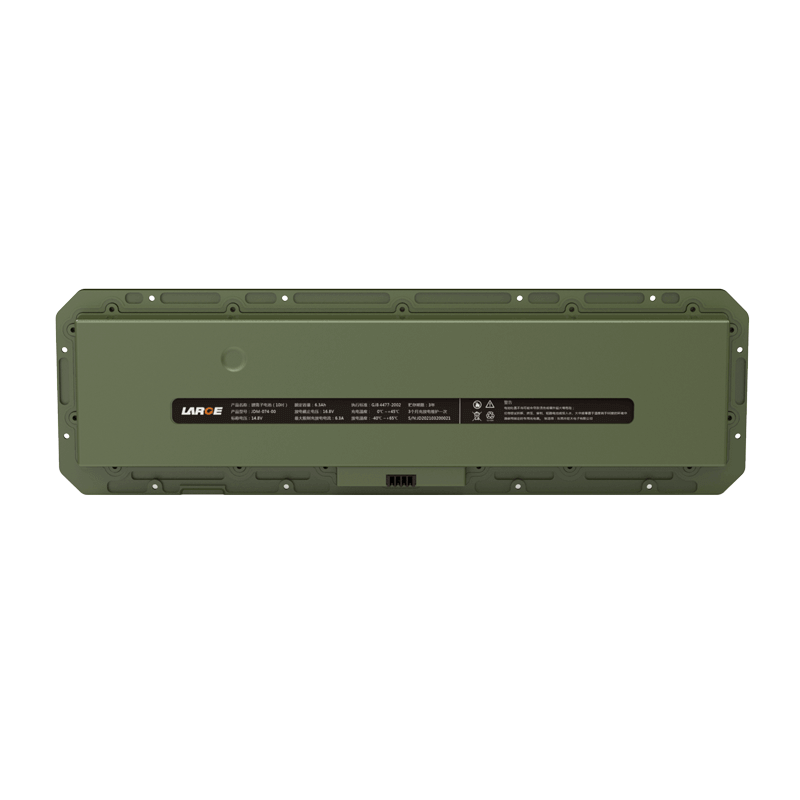

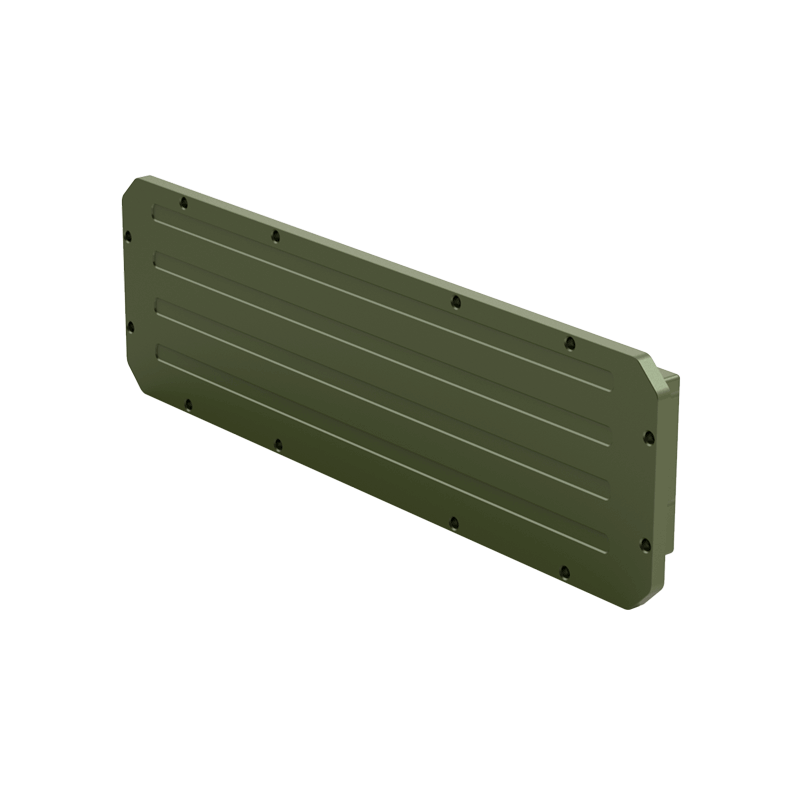

11.1V 8800mAh Lithium-ion Battery (18650)
For Laptop with SMBUS Communication Protocol
Product number: 35AQ528-04
Cell model: INR18650-2200
Specification: 11.1V-8.8AH
Product size: 287.1±0.1mm×86.4±0.1mm×20.5±0.2mm
Nominal voltage: 11.1V
Nominal capacity: 8.8Ah
Charging voltage: 12.6V
Charging current: 6.3A
Discharge current: 6.3A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤180mΩ
Battery weight: 800G
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 65℃
Storage temperature: -40 to +45 ° C (less than 1 month) -20 to 35 ° C (less than 3 months); -20~+25℃ (less than 12 months)
Battery case: hardware case
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, over temperature protection, etc.
Application: laptop
1.Hardware package makes it simple, reliable and easy to install.
2.SMBUS communication protocol
3.Input terminal: Adopt the output mode of GB UL wire to increase conductive reliability.
4.Battery protection management: Adopt imported well-known brand protection chips with good stability, high precision monitoring and precise control, to eliminate safety risks to the maximum.
5.The battery pack is safe, has good discharge performance and long cycle life.
6.The battery has long cycle life, in line with low carbon, energy saving, environmental protection values;
