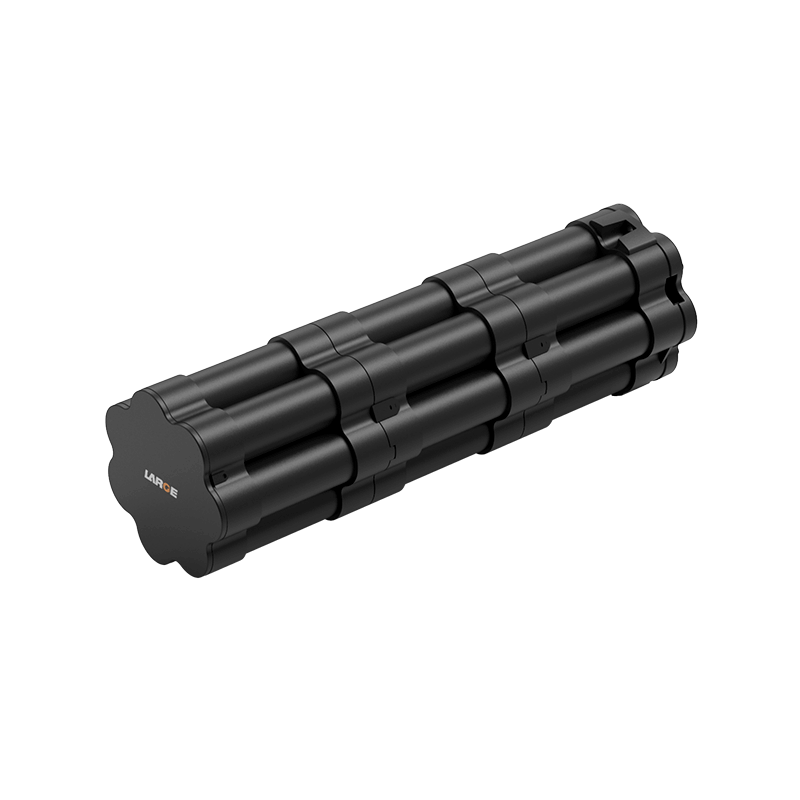

14.4V 20000mAh Lithium-ion Battery (18650)
- Product Number: 08DQ0028-02
- Nominal voltage: 14.4V
- Nominal capacity: 20,000 mah
- Battery size: Diameter 65.6*210
- Charging temperature: 0-45
- Discharge temperature: -20 to 60
- Application field: Exploration equipment
- Project Number: 08DQ0028-02
- Batteries models: NCR18650GA6W / 3350 mah / 3.6 V
- Battery Specification: 18650-4S6P/20Ah/14.4V (Smart + Bracket)
- Nominal voltage: 14.4V
- Nominal capacity: 20.0Ah
- Charging voltage: 16.8V
- Charging current: ≤6.0A
- Discharge current: 10.0A
- Instantaneous discharge current: 15.0A
- Discharge cut-off voltage: 11.2V
- Finished product internal resistance: ≤90mΩ
- Battery weight: 1400g
- Product size: 65.6*210mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Storage temperature: -20 to 23℃
- Battery casing: ABS+PCS
- Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
- Application field: Exploration equipment
