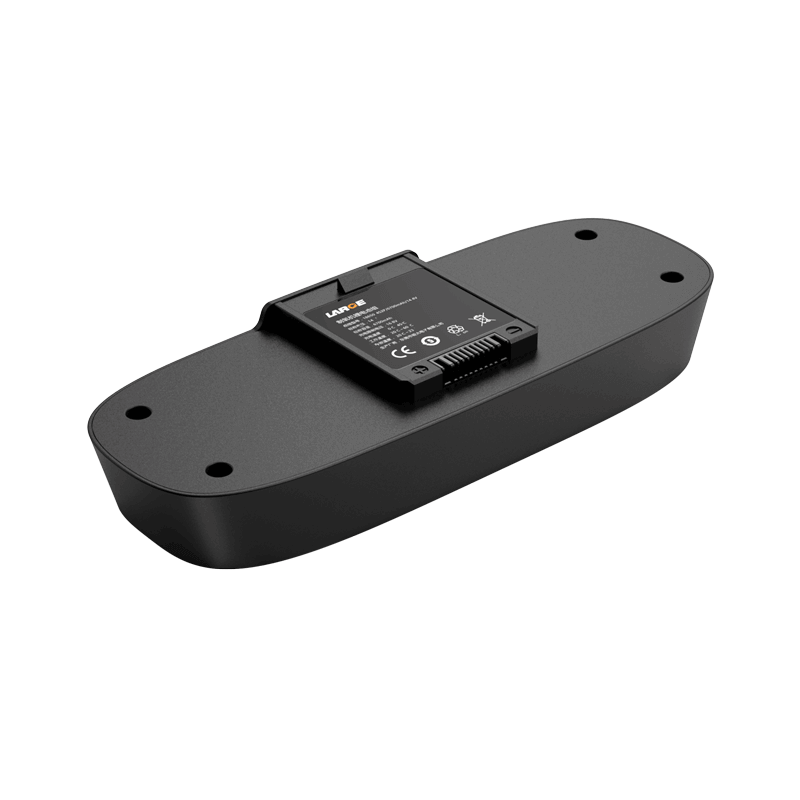

14.4V 6700mAh Lithium-ion Battery (18650)
- Product Number: 04DQ0086-01
- Nominal voltage: 14.4V
- Nominal capacity: 6700mAh
- Battery size: 35.09*80.39*220.69mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Oxygen generator
- Project Number: 04DQ0086-01
- Cell model: NCR18650GA/3350mAh/3.6V
- Battery specifications: 18650-4S2P/6700mAh/14.4V (Smart + Case)
- Nominal voltage: 14.4V
- Nominal capacity: 6700mAh
- Charging voltage: 16.8V
- Charging current: ≤3.35A
- Discharge current: 6.70A
- Instantaneous discharge current: 15.0A
- Discharge cut-off voltage: 11.2V
- Finished product internal resistance: ≤250mΩ
- Battery weight: 550g
- Product dimensions: 35.09*80.39*220.69mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Storage temperature: -20 to 23℃
- Intelligent lithium battery protection: power management, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
- Application fields: Oxygen generators, medical equipment
