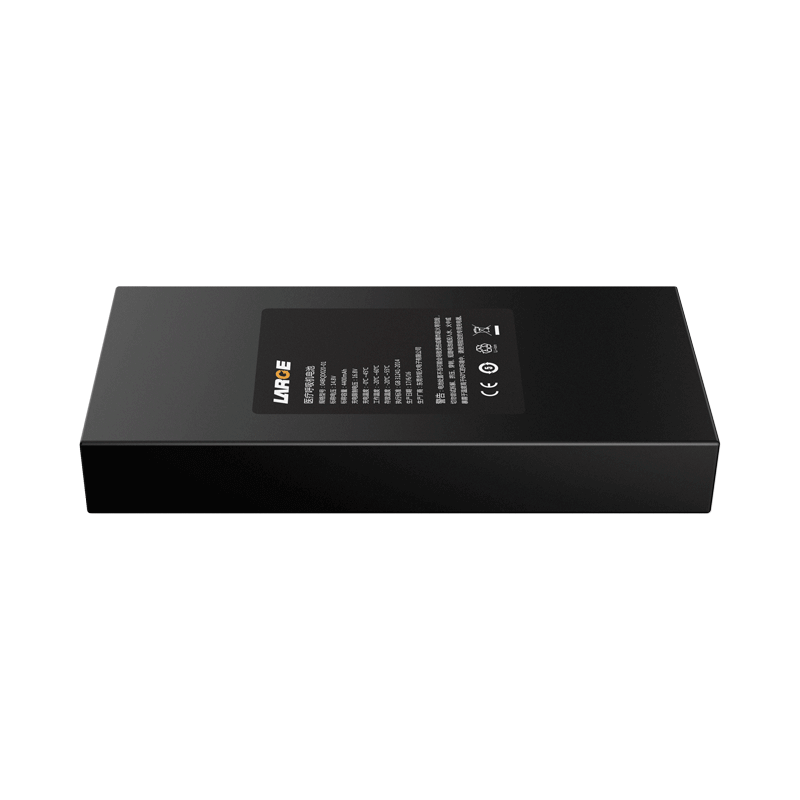

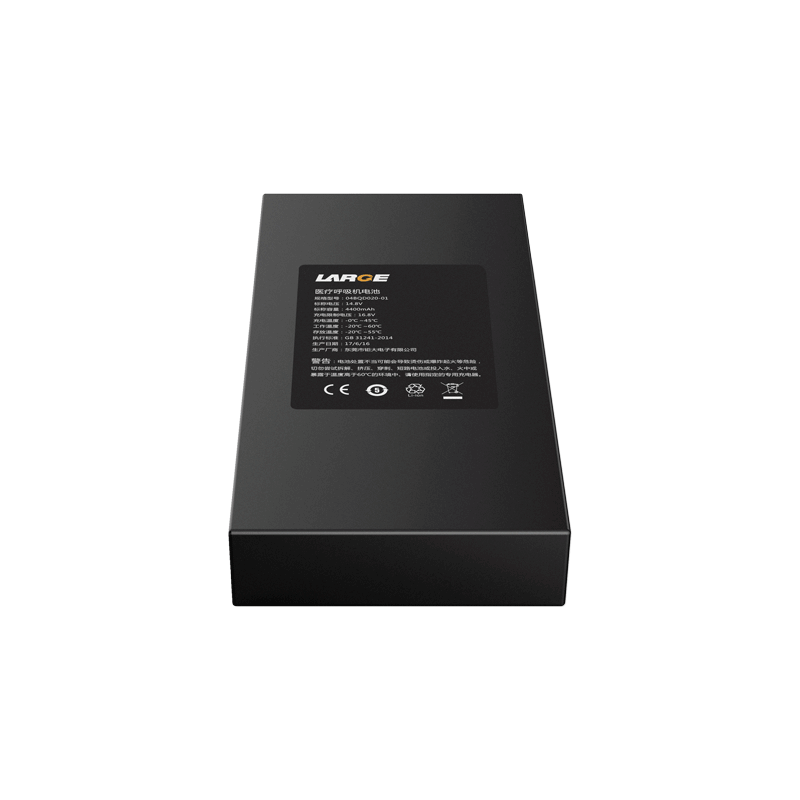

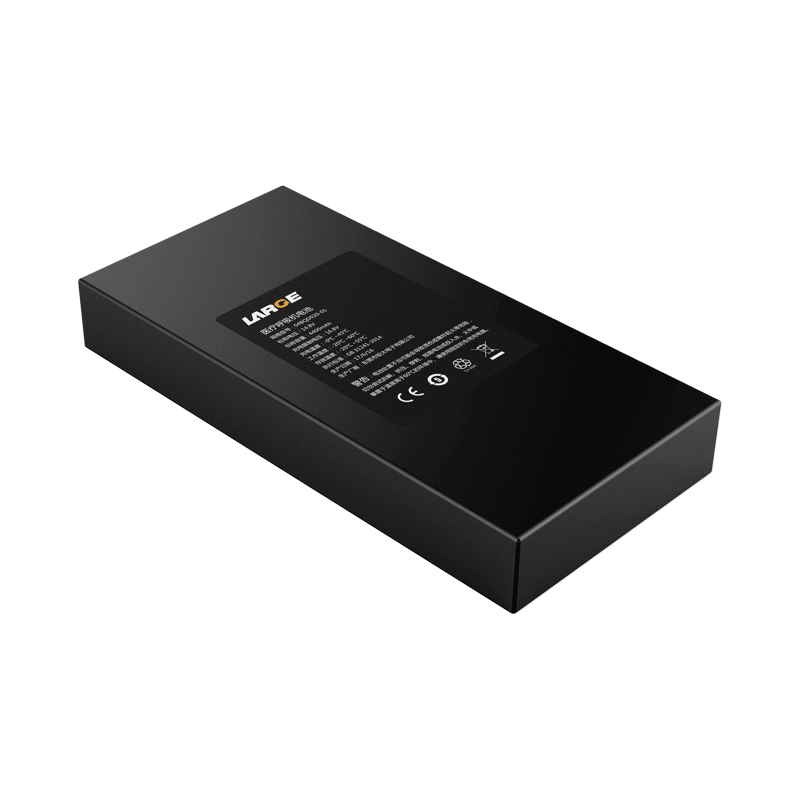

14.8V 4400mAh 18650 medical ventilator ternary lithium battery
Medical ventilator lithium battery 14.8V 4400mAh
- Product Number: 04BQD020-01
- Nominal voltage: 14.8V
- Nominal capacity: 4400mAh
- Battery size: MAX155×75×22mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Medical equipment
Project Approval Number: 04BQD020-01
Battery type: UR18650/4 s2p / 4400 mah / 14.8 V
Nominal voltage: 14.8V
Nominal capacity: 4400mAh (Discharge from 0.1C to 12V)
Factory voltage: 14.8V to 16V
Product dimensions: MAX155×75×22mm
Product internal resistance: ≤250Mω
Weight: 370g
Output mode: UL1007 16# VH3.9mm male plug, red and black, stripped wire 2±0.5mm
Execution standard: GB/T 18287-2000
Shelf life: 12 months
Operating temperature: 0 to 45℃ (charging), -20 to 60℃ (discharging)
Battery charging: Charging limit voltage: 16.8V Charging current: 2200mA(standard), 4400mA(maximum)
Battery discharge: Discharge cut-off voltage: 12V Discharge current: 3000mA(standard), 4400mA(maximum)
