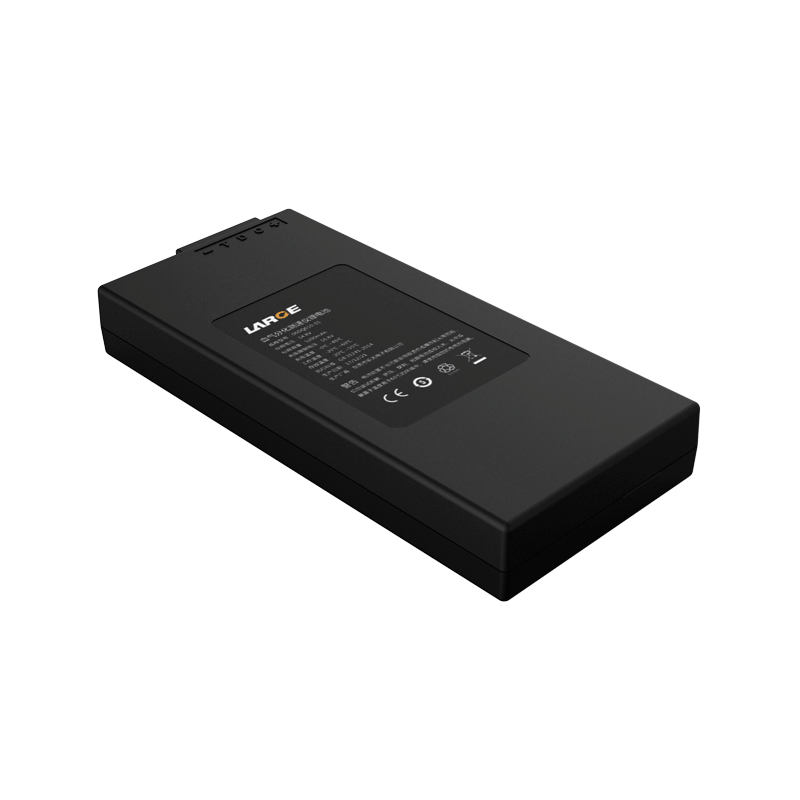

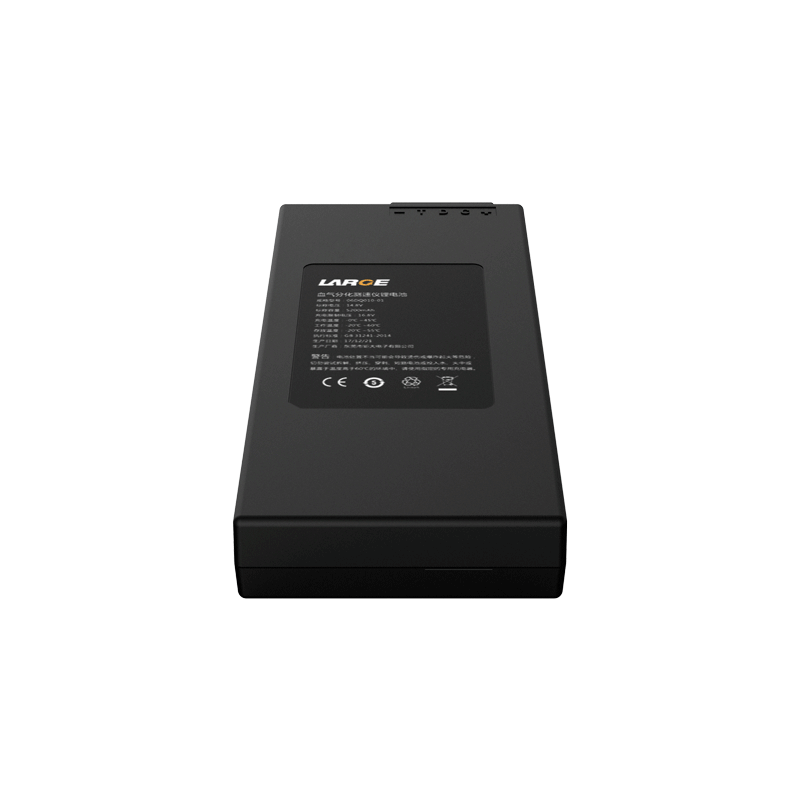

14.8V 5200mAh 18650 Samsung NCM Lithium Battery for Blood Gas Analyzer
- Product Number: 06DQ010-01
- Nominal Voltage: 14.8V
- Nominal Capacity: 5200mAh
- Battery Dimensions: 166.5 × 74.5 × 23mm (Max)
- Charging Temperature: 0 to 45°C
- Discharging Temperature: -20 to 60°C
- Application Fields: Blood Gas Analyzer / Patient Monitor / Medical Equipment
14.8V 5200mAh Lithium Battery for Blood Gas Analyzer
- Product Number: 06DQ010-01
- Cell Type: 18650 / 3.6V / 2600mAh
- Battery Configuration: 18650-4S2P / 14.8V / 5200mAh
- Nominal Voltage: 14.8V
- Nominal Capacity: 5200mAh
- Charge Voltage: 16.8V
- Charge Current: ≤2.5A
- Discharge Current: 2.5A
- Peak Discharge Current: 5A
- Cut-off Discharge Voltage: 5.4V
- Internal Resistance: ≤350mΩ
- Battery Weight: 420g
- Product Dimensions: 166.5 × 74.5 × 23mm (Max)
- Charging Temperature Range: 0 to 45°C
- Discharging Temperature Range: -20 to 60°C
- Storage Temperature Range: -20 to 35°C
- Temperature Protection: 70°C ± 5°C
- Battery Casing Material: ABS + PC
- Battery Protection Features: Short Circuit Protection, Overcharge Protection, Over-discharge Protection, Overcurrent Protection, Battery Communication Function
- Application Fields: Blood Gas Analyzer / Patient Monitor / Medical Equipment
Product Features
- Metal Output Terminal: Utilizes gold-plated spring contact design to enhance conductivity and reliability.
- Battery Connector: Equipped with 7PIN TSA0-03007-12T2 connector for easy disassembly and assembly.
- Data Communication Management: Features Seiko IC and TI software management chip for precise data transmission and accurate temperature control, effectively minimizing potential safety risks.
- High-Quality Cells: Uses imported Samsung brand cells, ensuring high safety and long cycle life of the battery pack.
- Sustainable Performance: The battery pack maintains a high cycle retention rate, aligning with low-carbon, energy-saving, and environmentally friendly values.
