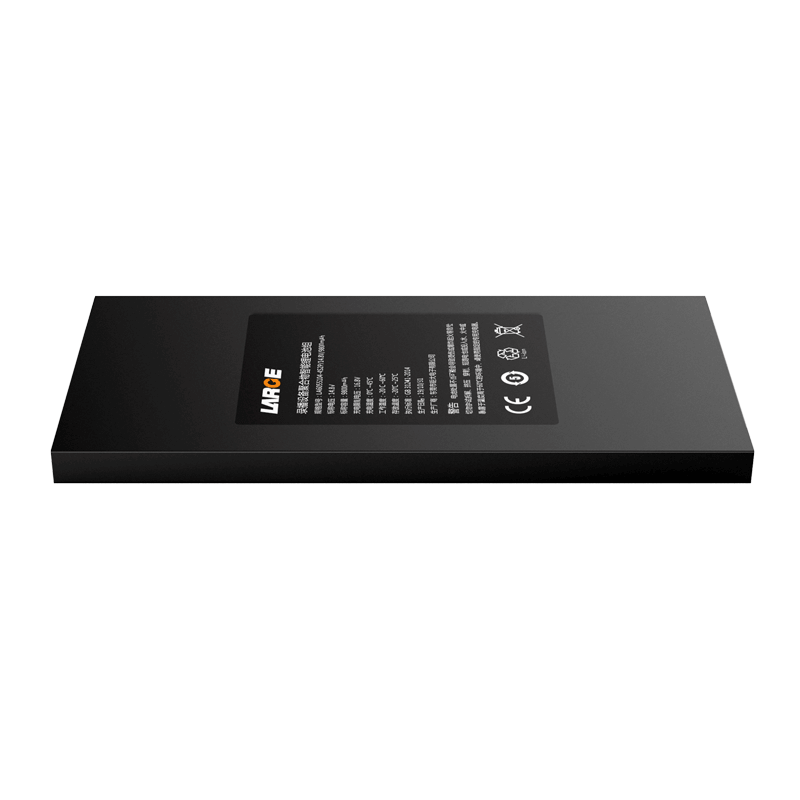

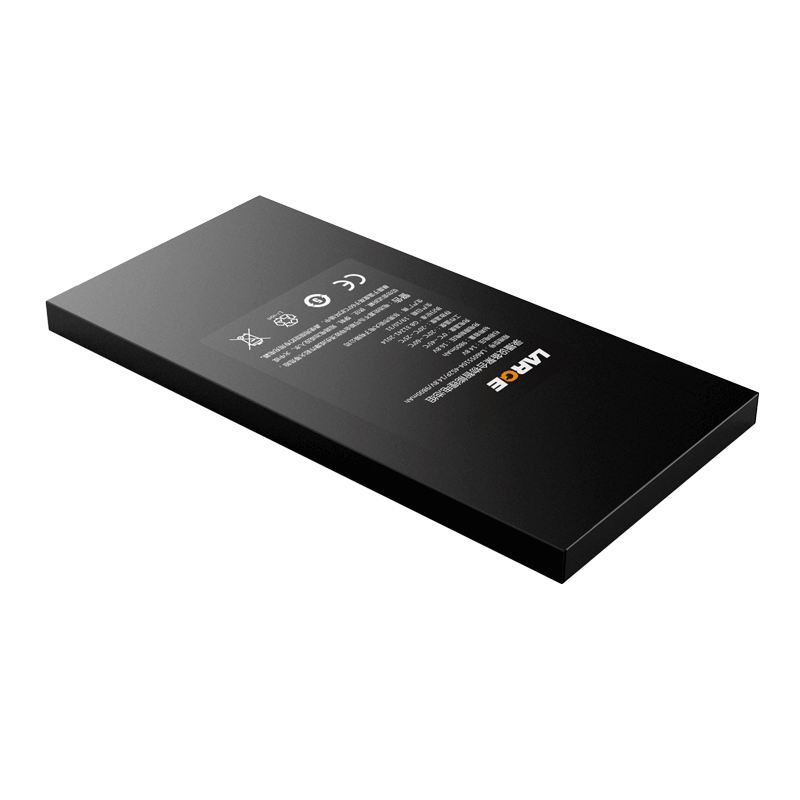

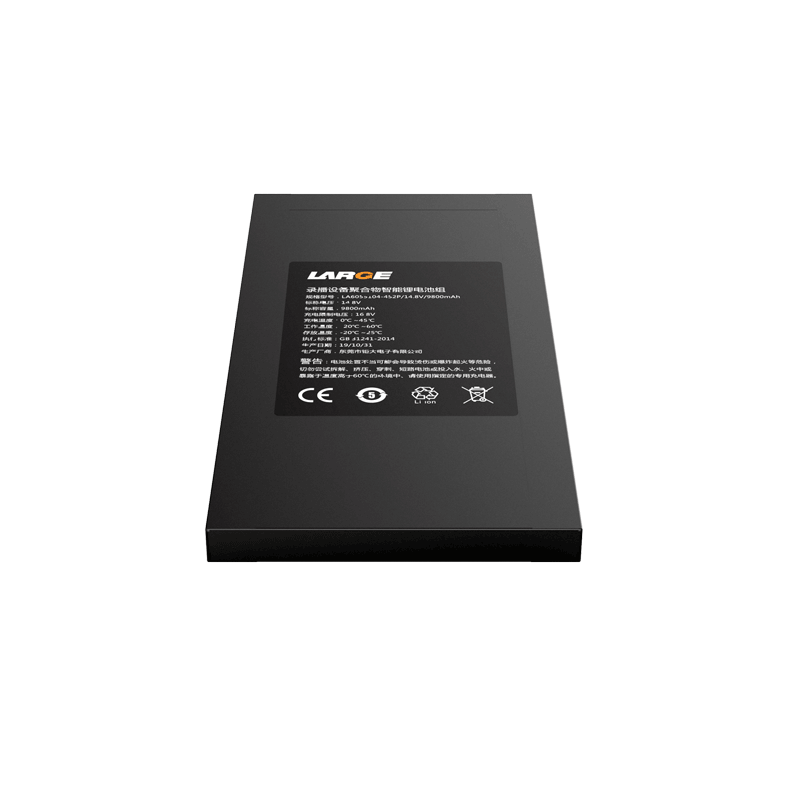

14.8V 9800mAh SMBus Li-Polymer Battery
Designed for Professional Recording Systems, Supports Smart Battery Management via SMBus Protocol
- Product number: 37AQ233-01
- Nominal voltage: 14.8V
- Nominal capacity: 9800mAh
- Battery size: 12.5*112.5*230 (±0.2mm)
- Charging temperature: 0～45℃
- Discharging temperature: -20～60℃
- Application areas: education industry, indoor recording and broadcasting equipment, smart classroom
- Project No.: 37AQ233-01
- Cell Model: LA6055104/4900mAh/3.7V
- Battery Specifications: LA6055104-4S2P/14.8V/9800mAh
- Nominal Voltage: 14.8V
- Nominal Capacity: 9800mAh
- Charging Voltage: 16.8V
- Charging Current: ≤1.5A
- Discharge Current: 3A
- Instantaneous Discharge Current: 10A
- Discharge Cut-off Voltage: 13.2V
- Finished Product Internal Resistance: ≤120mΩ
- Battery Weight: 650g
- Product Size: 12.5*112.5*230 (±0.2mm)
- Charging Temperature: 0～45℃
- Discharge temperature: -20～60℃
- Storage temperature: -20～25℃
- Battery packaging: PC sheet + Mara glue, fire protection level UL94-V0
- Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, overcurrent protection, overtemperature protection, SMbus communication, etc.
- Application areas: education industry, indoor recording and broadcasting equipment, smart classroom
- Low power consumption;
- The battery pack is safe and has a long cycle life;
- The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection;
- The product design focuses on protection and anti-drop
- It can accurately monitor the battery power
