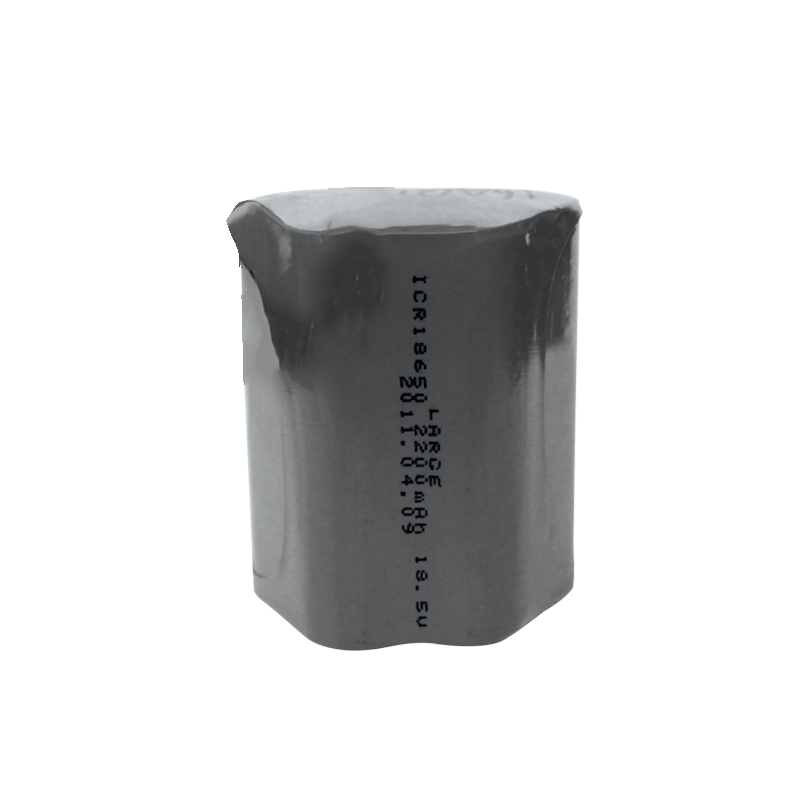

18.5V 2200mAh Ternary Lithium-ion Battery (18650)
Using Sanyo Cells
- Model number:16AQ009-03
- Nominal voltage:18.5V
- Nominal capacity:2200mAh
- Battery cell:Sanyo18650/2200mah /18.5V
- Dimension:MAX71×54.6×36.5mm
- Application:other
Project number: 16AQ009-03
Battery model: Sanyo18650/2200mah /18.5V
Nominal voltage: 18.5V
Nominal capacity: 2200mAh (0.2C discharge to 13.75V)
Factory voltage: ≥18.5
Product dimension: MAX71×54.6×36.5mm
Internal resistance: ≤550mΩ
Output: UL1007 20# 200±5mm red black, stripping 2±0.5mm
Execution standard: GB/T 18287-2000
Warranty period: 12 months
Operating temperature: 0~45℃ (charging), -20~60℃ (discharging)
Battery charging: Charging limit voltage: 21V Charging current: 1100mA(standard), 2200mA(maximum)
Battery discharge: Discharge cut-off voltage: 13.75V Discharge current: 440mA(standard), 2200mA(Max)
