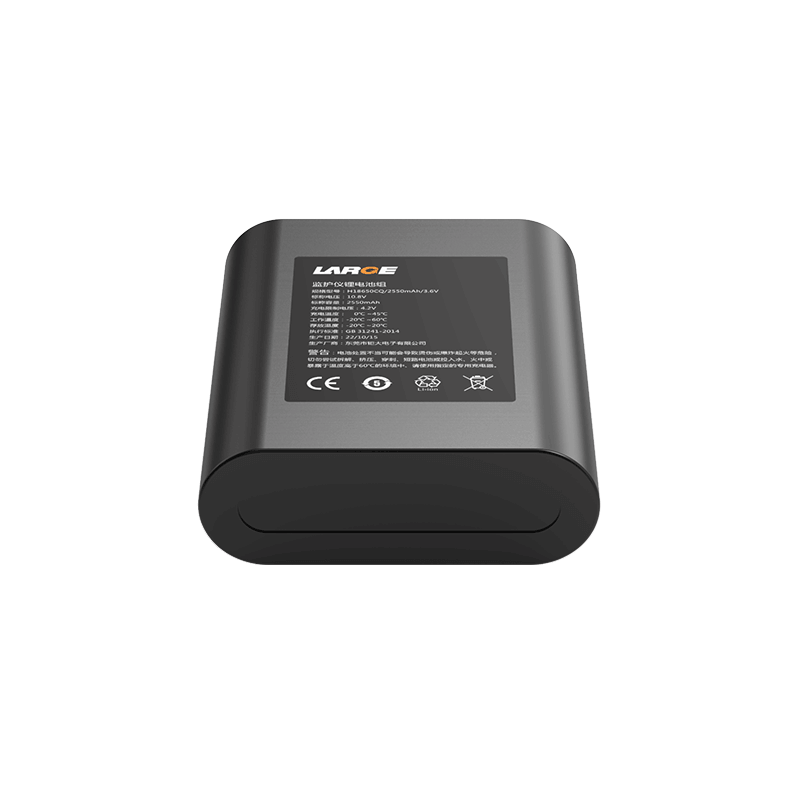

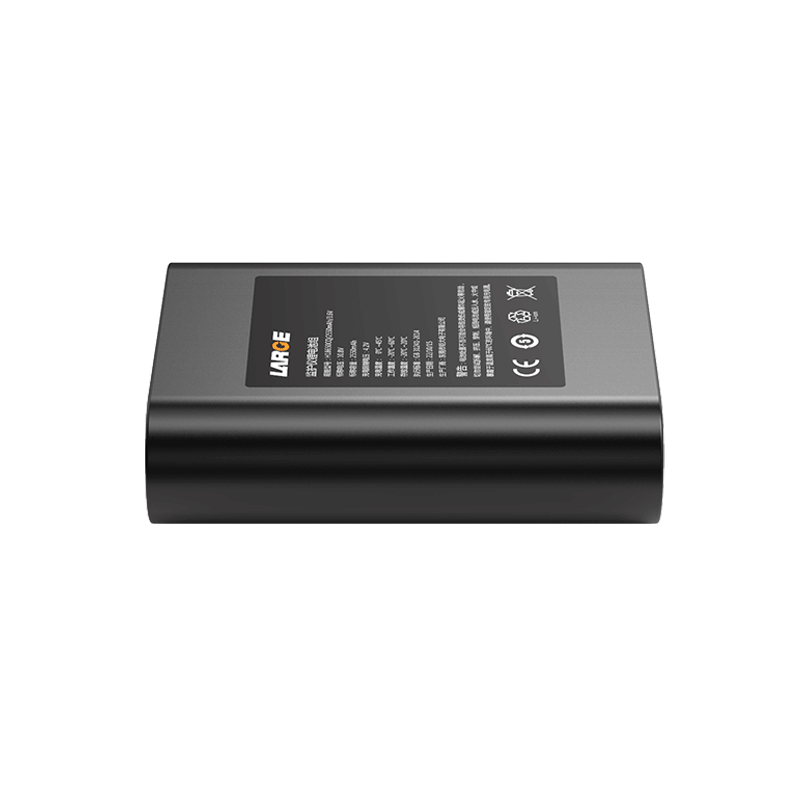

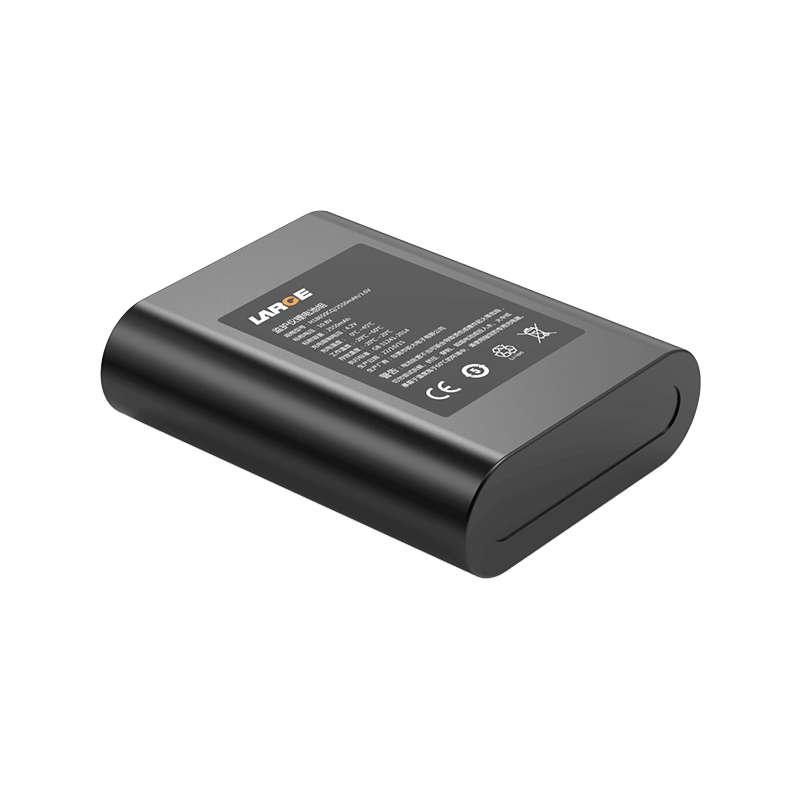

18650 10.8V 2550mAh monitoring instrument lithium battery pack
Lithium battery packs suitable for medical equipment
Product Number: 08DQ0082-20
Rated voltage: 10.8V
Rated capacity: 2550mAh
Battery size: 19.5 * 56 * 70 mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Medical equipment
Project Number: 08DQ0082-20
Cell model: H18650CQ/2550mAh/3.6V
Battery specification: 18650 – 3S1P / 2550mAh / 10.8V
Rated voltage: 10.8V
Rated capacity: 2550mAh
Charging current: ≤ 3.35A
Discharge current: 3.0A
Instantaneous discharge current: 6A
Discharge cut-off voltage: 8.1V
Internal resistance of the finished product: ≤ 230 mΩ
Battery weight: 180g
Product dimensions: 19.5 * 56 * 70 mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Storage temperature: -20 to 20 degrees Celsius
Battery housing: /
Intelligent lithium battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc.
Application field: Monitor
