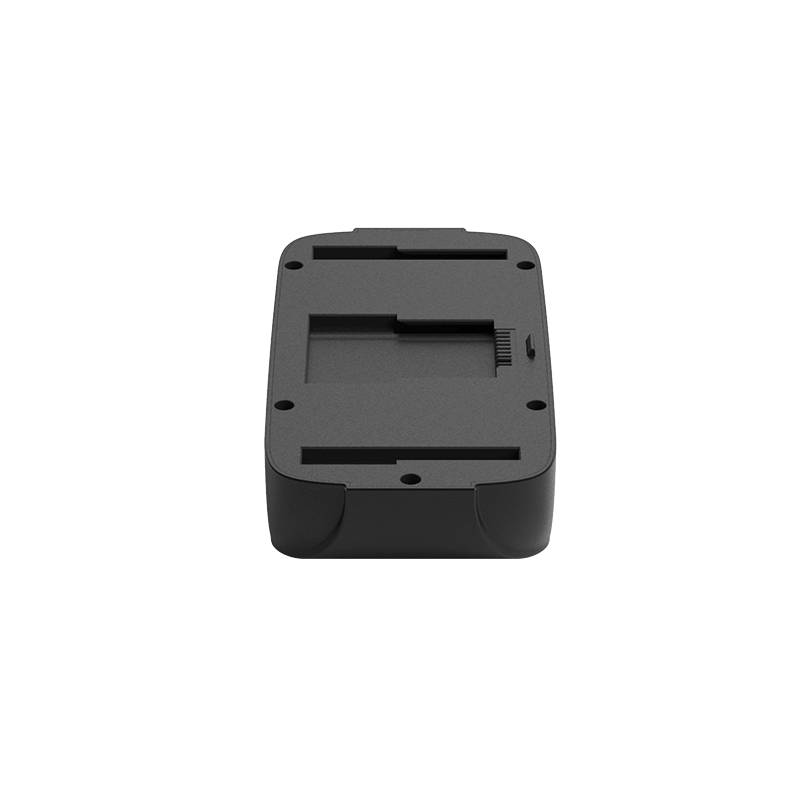

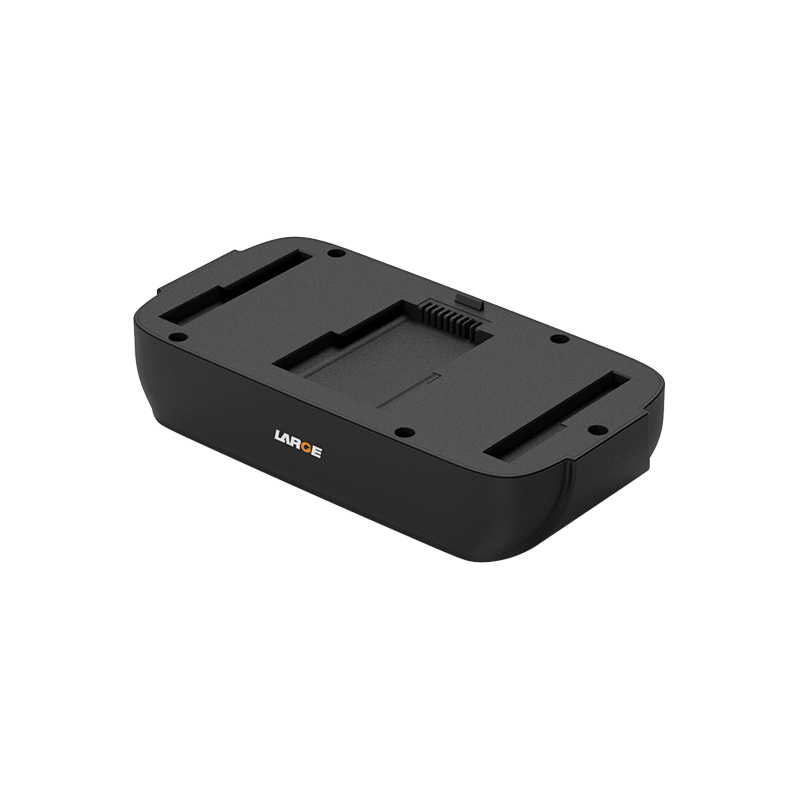

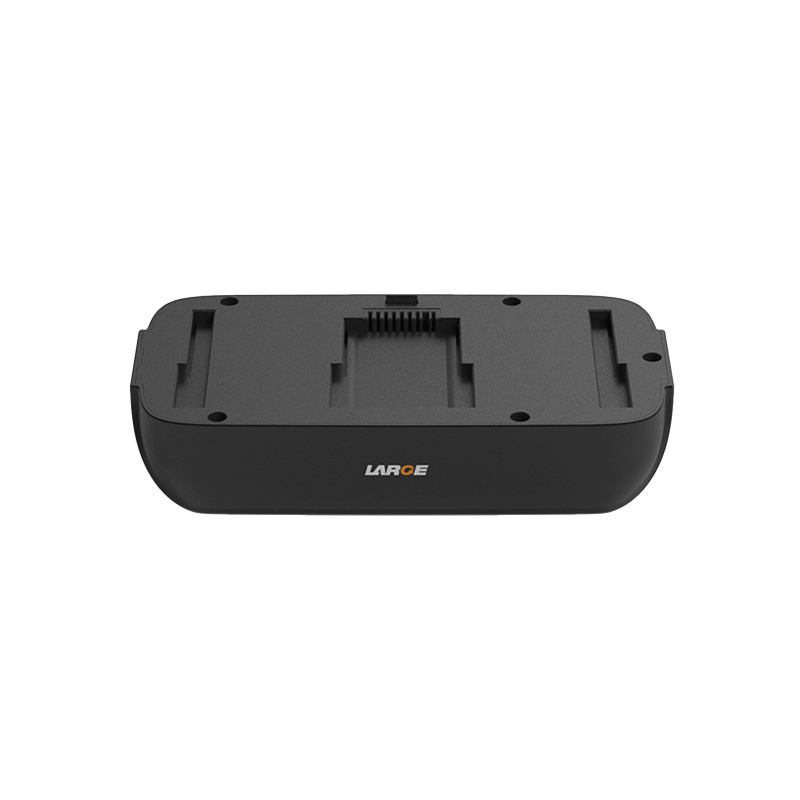

18650 14.4V 6.7Ah Breathing Machine Lithium Battery Pack
- Product Number: 33DZ052-01
- Nominal voltage: 14.4V
- Nominal capacity: 6800mAh
- Battery size: 165*85*32
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Medical equipment
Project Number: 33DZ052-01
Cell model: 18650/3.6V/3.35Ah
Battery specification: 18650-4S2P/14.4V/6.7Ah
Nominal voltage: 14.4V
Nominal capacity: 6.8Ah
Charging voltage: 16.8V
Charging current: ≤3.35A
Discharge current: 5A
Instantaneous discharge current: 10A
Discharge cut-off voltage: 7.5V
Finished product internal resistance: ≤200mΩ
Battery weight: 478g
Product size: 165*85*32
Charging temperature: 0-45℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 45℃
Battery casing: Plastic casing
Communication protocol: SMBUS
Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection during charging, overcurrent protection during discharging, temperature protection, battery gauge, SMBUS communication, etc
Application fields: Handheld devices, ventilators, medical equipment
Product features
Data communication management: Utilizing Seiko IC+TI software management chips, precise data transmission, and accurate temperature control to eliminate potential safety hazards to the greatest extent.
The battery pack is safe, has good low-temperature performance and a long cycle life.
Low self-consumption of power;
