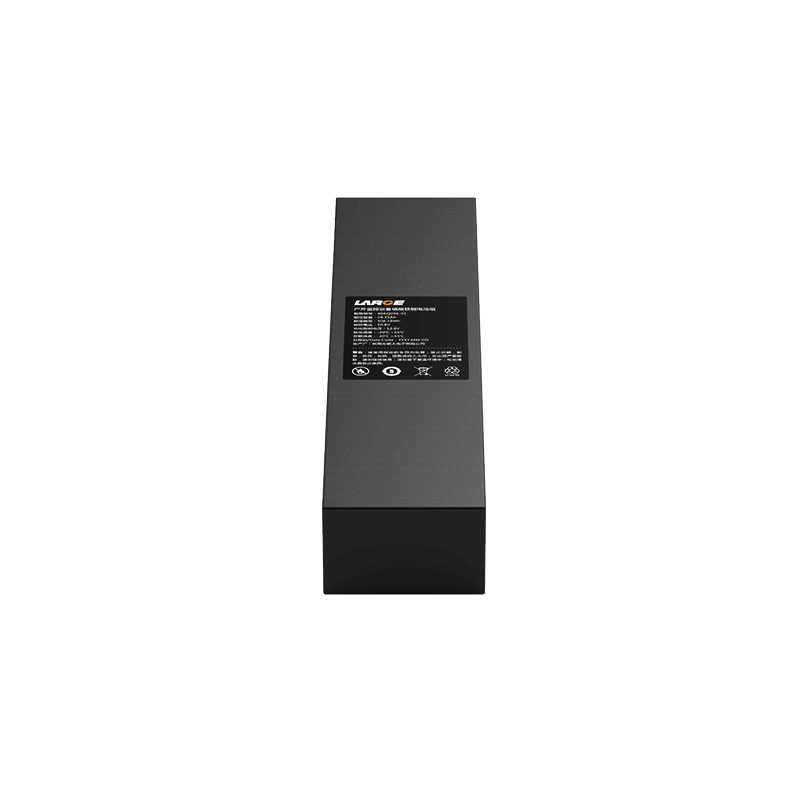

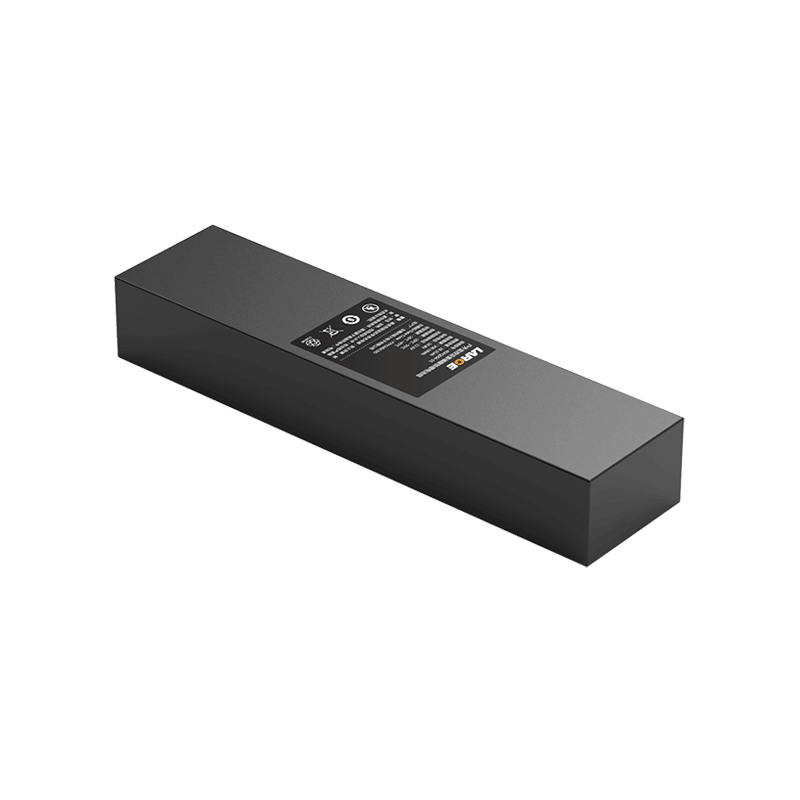

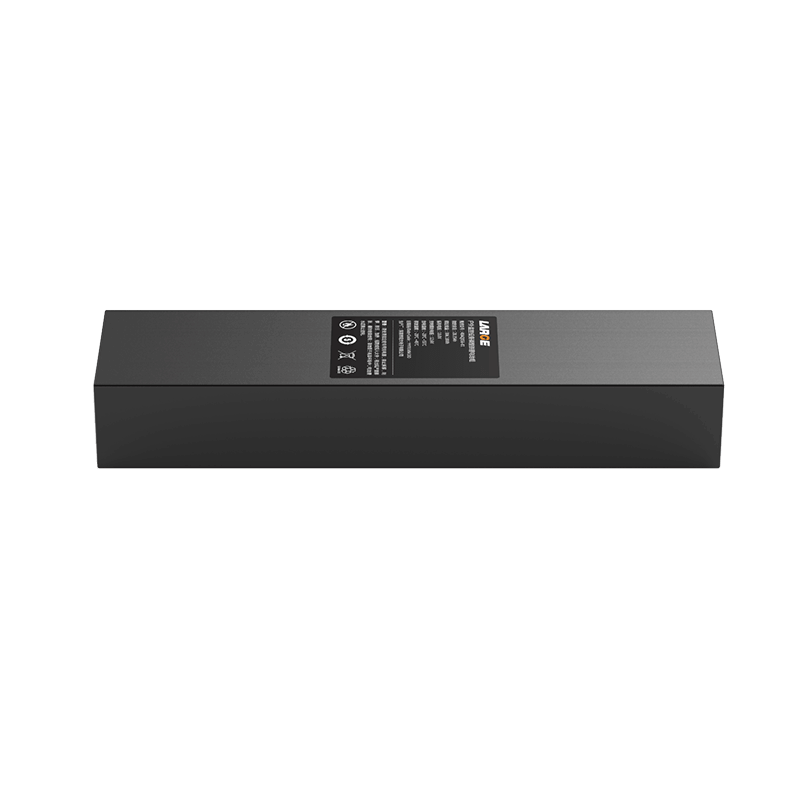

18650 36V 40.8Ah Intelligent Robot Lithium-ion Battery

Supports autonomous navigation, real-time processing, and continuous operation scenarios.

Product number: 06DQ063-01
Battery model: 18650-3350mAh-3.6V
Battery specification: 18650-10S12P-40.8Ah-36V
Product size: 471*114*71mm (Max)
Nominal voltage: 36V
Nominal capacity: 40.8Ah
Internal resistance of finished product: ≤100mΩ
Charging voltage: 42V
Charging current: ≤20A
Discharge current: ≤20A
Discharge cut-off voltage: 27V
Battery weight: 7000g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Battery package: Blue PVC heat shrink film
Communication protocol: RS485 communication
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overtemperature protection, overcurrent protection,ESD protection, etc.
Application: Robot, intelligent robot, AGV
