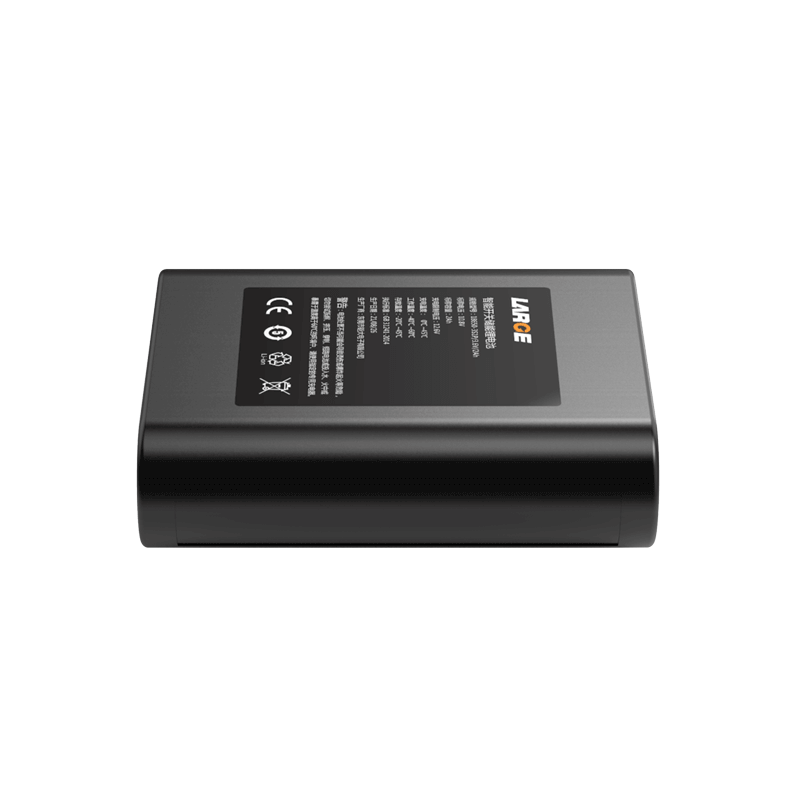

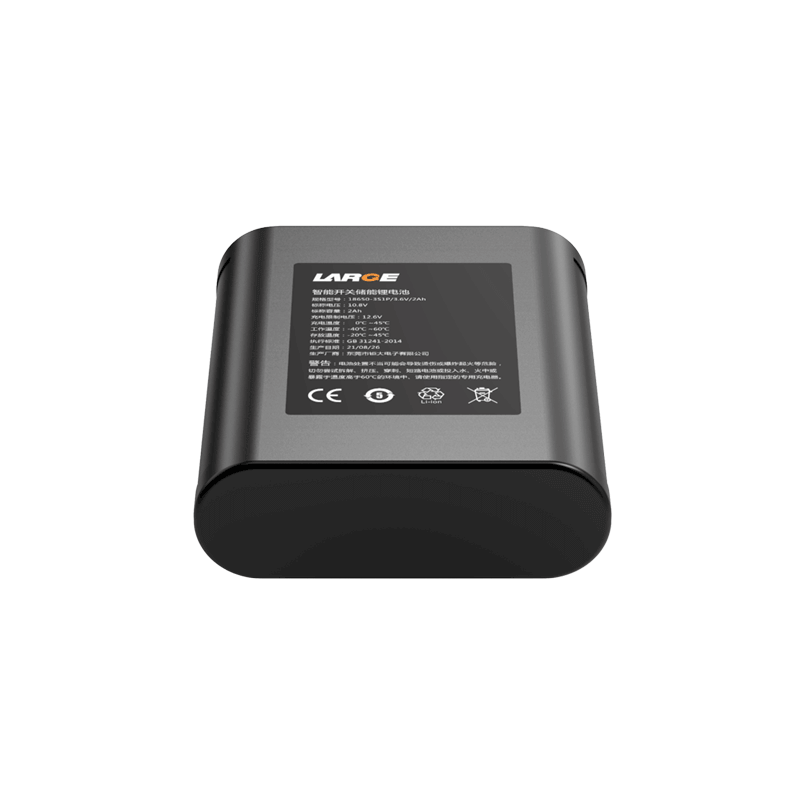

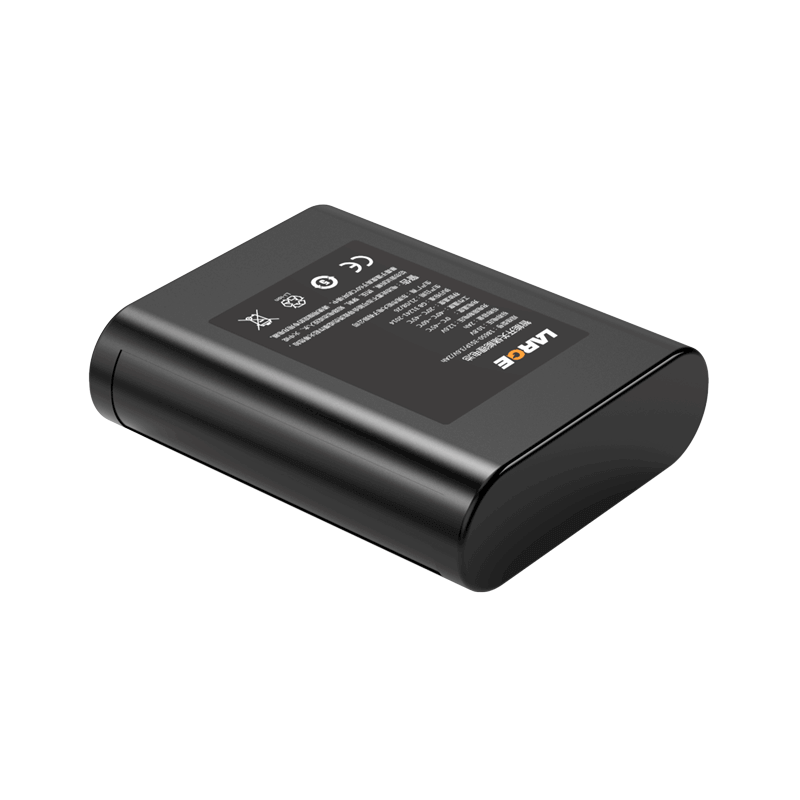

Custom Lithium ion Battery Pack
Project number: 37DZ081-03
Cell type: 18650/3.6V/2Ah
Specification: 18650-3S1P/3.6V/2Ah
Nominal voltage: 10.8V
Nominal capacity: 2.0Ah
Charging voltage: 12.6V
Charging current: ≤1A
Discharge current: 2A
Instantaneous discharge current: 6-12A
Discharge cut-off voltage: 7.5V
Product internal resistance: ≤180mΩ
Battery weight: 200G
Product size: 19.5×56×71mm (Max)
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 45 ° C
Battery case: PVC
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: intelligent agriculture, intelligent switch
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
