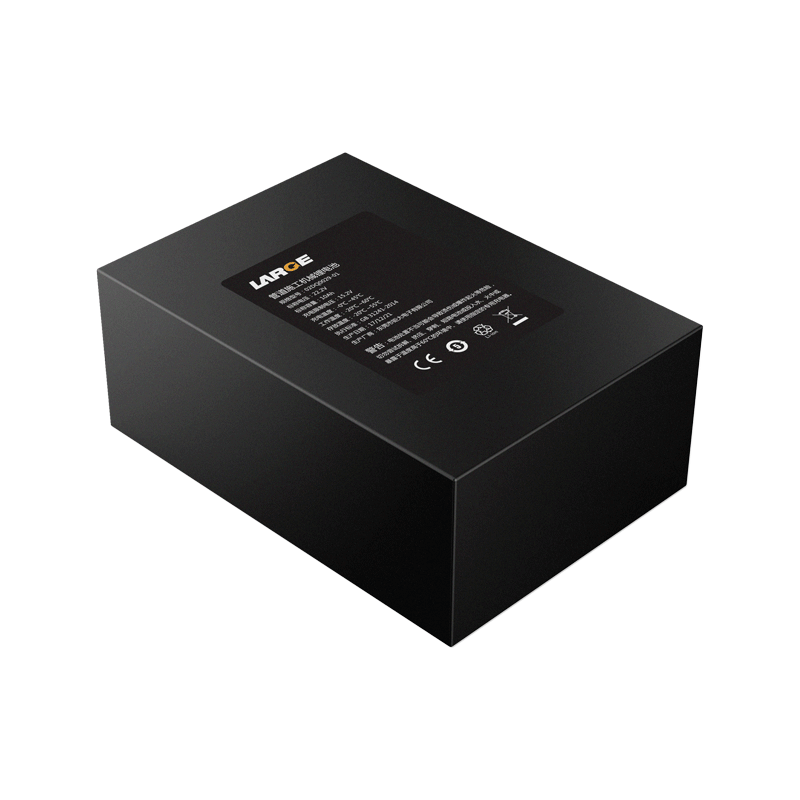

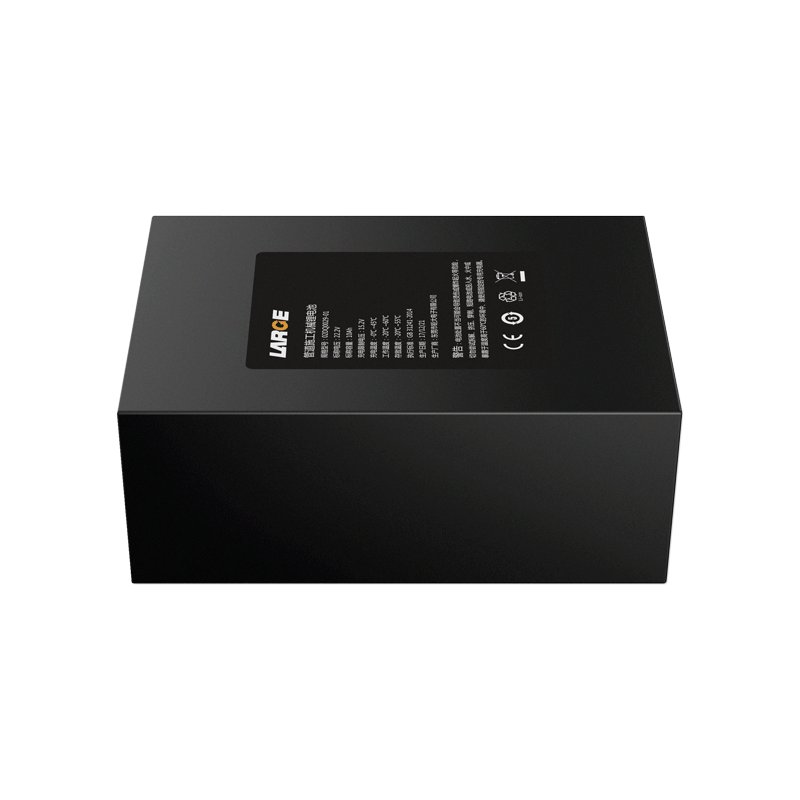

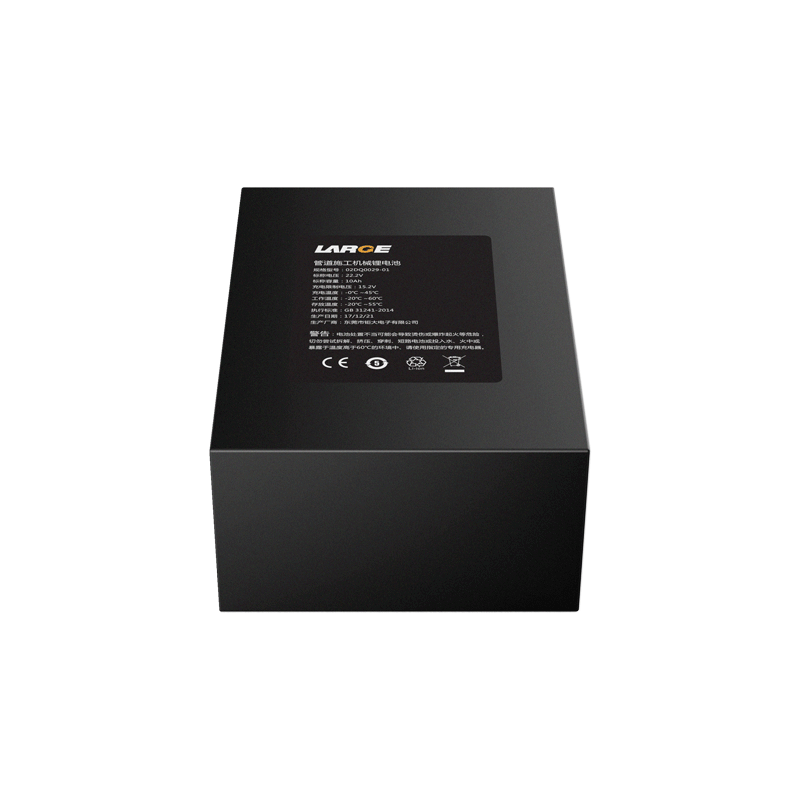

22.2V 10Ah 18650 Lithium Ion Battery Sanyo Battery for Machine for Pipe Constrution

Offers reliable power, long cycle life, and consistent performance in industrial environments.

Product number: 02DQ0029-01
Cell model：18650/3.7V/2.5Ah
Battery specification: 18650-6S4P/22.2V/10Ah
Nominal voltage：22.2V
Nominal capacity：10Ah
Charging voltage: 15.2V
Charging current: ≤5A
Discharging current: 5A
Instant discharging current: 10A
End-off voltage: 18.0V
Internal resistance: ≤150mΩ
Battery weight: 1.9Kg
Product dimension: 181*127*71mm（Max）
Charging temperature：0～45℃
Discharging temperature: -20～60 ℃
Storage temperature: -20～35℃
Battery case: blue PVC
Lithium ion battery protection: short circuit protection, overcharging protection, over-discharging protection and overcurrent protection.
Application field: pipeline construction, testing equipment
