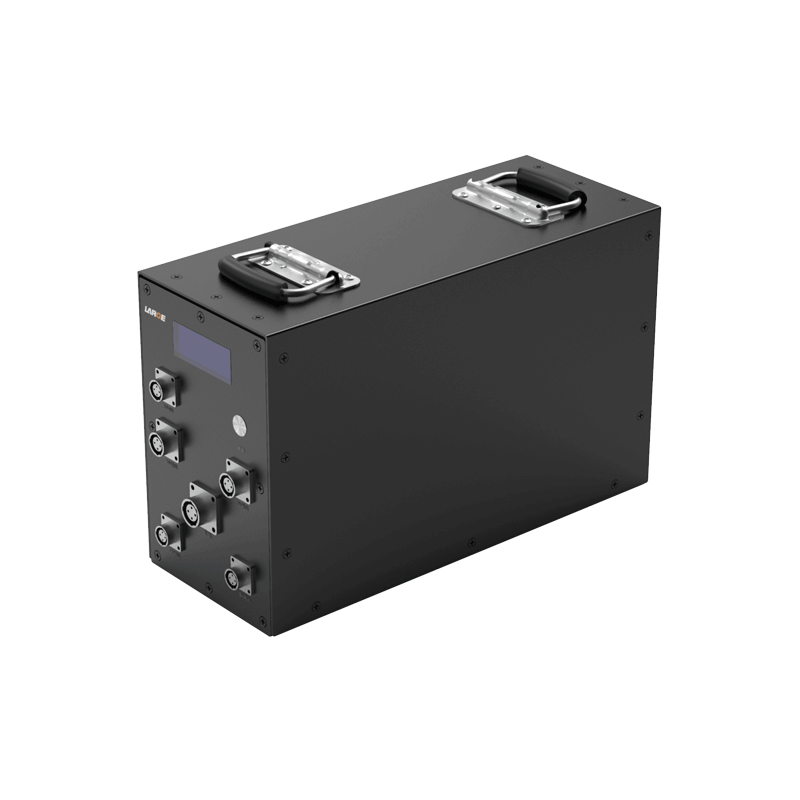

25.2V 70000mAh Lithium-ion Battery
For Air Purifier
- Product Number: 05DQ0057-01
- Nominal voltage: 25.6V
- Nominal capacity: 70,000 mah
- Battery size: 400*262*160mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application fields: air purification equipment, monitoring equipment, security equipment and other fields
- Product Number: 05DQ0057-01
- Battery cell model: 26650-3400mAh-3.2V
- Battery specification: 26650-8S21P-70Ah-25.6V
- Nominal voltage: 25.6V
- Nominal capacity: 70Ah
- DC regulated output: 5V/3A, 12V/3A, 19V/13A, 24V/5A
- Charging voltage: 29.2V
- Charging current: ≤20A
- Discharge current: 13A
- Discharge cut-off voltage: 20V
- Finished product internal resistance: ≤300mΩ
- Battery weight: 16Kg
- Product size: 400*262*160mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60 ℃
- Storage temperature: -20 to 35 ℃
- Battery casing: Aluminum alloy casing
- Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
- Application fields: air purification equipment, monitoring equipment, security equipment and other fields
The aluminum alloy shell enhances the reliability and firmness of the battery, making it easy to install, transport and carry.
Connector plug output end: It adopts the aviation plug output mode, and the interlocking increases the reliability of electrical conduction.
Data communication management: 485 communication for precise data transmission, CAN bus, precise temperature control, and real-time battery status monitoring and control are adopted to eliminate potential safety hazards to the greatest extent
BMS communication employs optocoupler isolation. The product supports 485 bus as an optional communication option for customers, supports networking, and has a communication baud rate of 9600bps
The battery pack is safe, has good discharge performance and a long cycle life.
The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.
