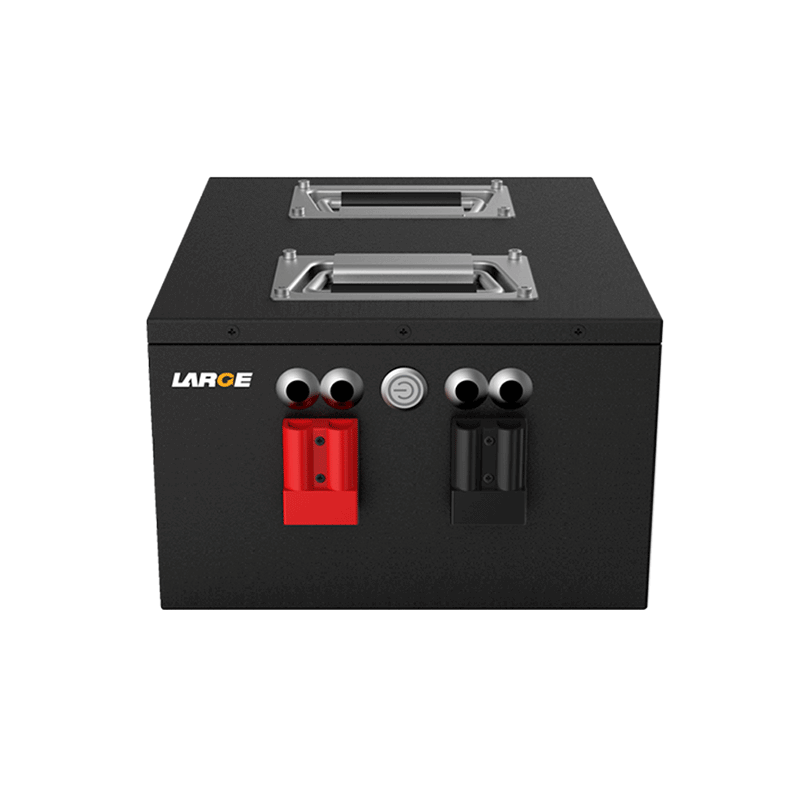

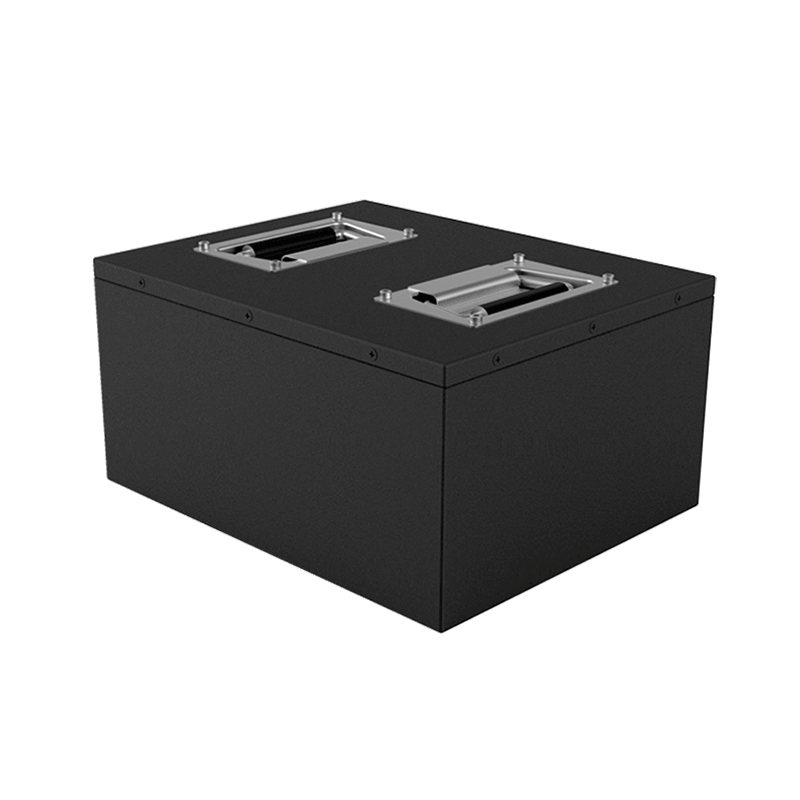

25.6V 60Ah LiFePO4 Battery Pack
Designed for AGV Systems, RS485 Communication Supported
- Product number: 30AQ078-01
- Nominal voltage: 25.6V
- Nominal capacity: 60000mAh
- Battery size: 3×152 (Max)
- Charging temperature: 0-45℃
- Discharging temperature: -20~55℃
- Application areas: Robots, AGV/RGV
- Product number: 30AQ078-01
- Cell model: 26650/3.2V/3.5Ah
- Battery specifications: 26650/8S18P/25.6V/60Ah
- Nominal voltage: 25.6V
- Nominal capacity: 60Ah
- Charging voltage: 29.2V
- Charging current: ≤30A
- Discharge current: 20A
- Instantaneous discharge current: 60A
- Discharge cut-off voltage: 20V
- Finished product internal resistance: ≤200mΩ
- Product size: 304×243×152 (Max)
- Battery weight: 15Kg
- Charging temperature: 0～45℃
- Discharge temperature: -20～55℃
- Storage temperature: -20～55 ℃
- Temperature protection: 65℃±5℃
- Battery housing: cold-rolled sheet metal
- Lithium battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, balancing, etc.
- Application areas: Robot AGV RGV
- Shockproof and dustproof: cold rolled sheet metal, powder-coated surface, internally filled with shockproof structure, shockproof and dustproof.
- The battery pack is safe and equipped with a temperature probe, which automatically starts protection when the temperature exceeds the limit;
- The battery pack has a long cycle life and complies with the value concept of low carbon, energy saving and environmental protection;
