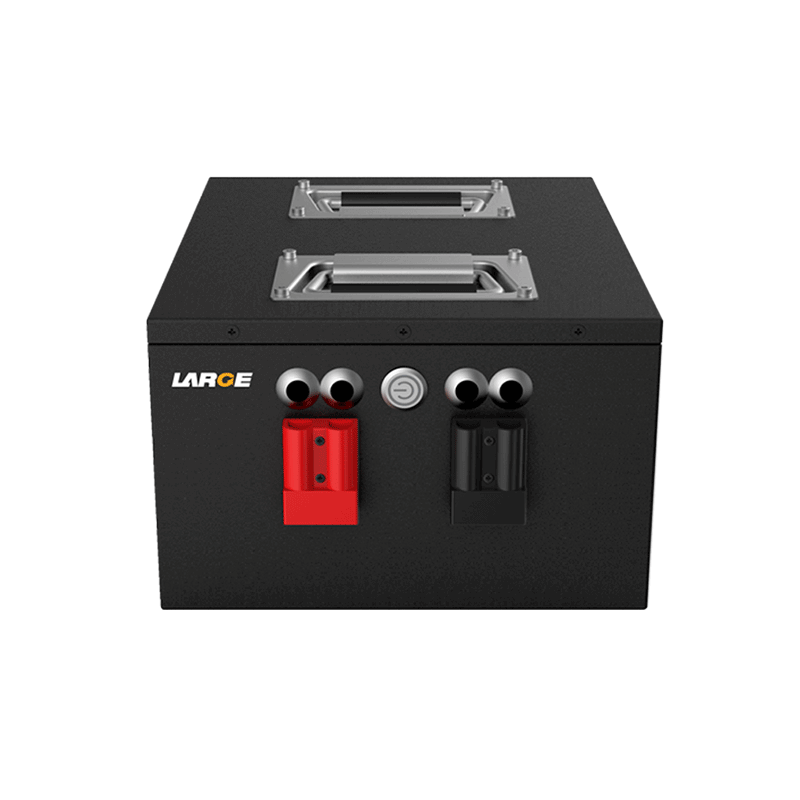

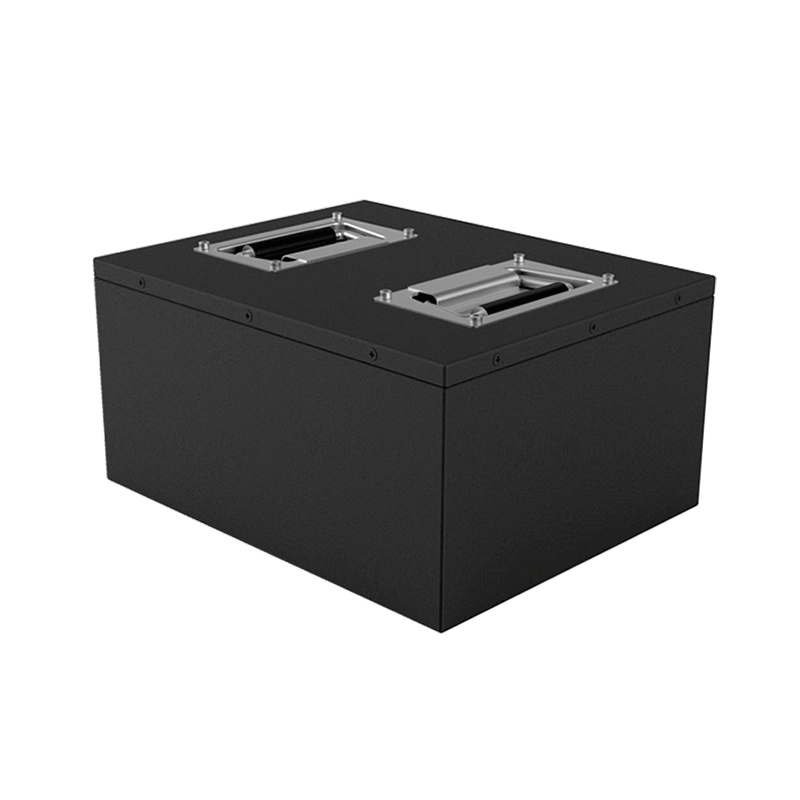

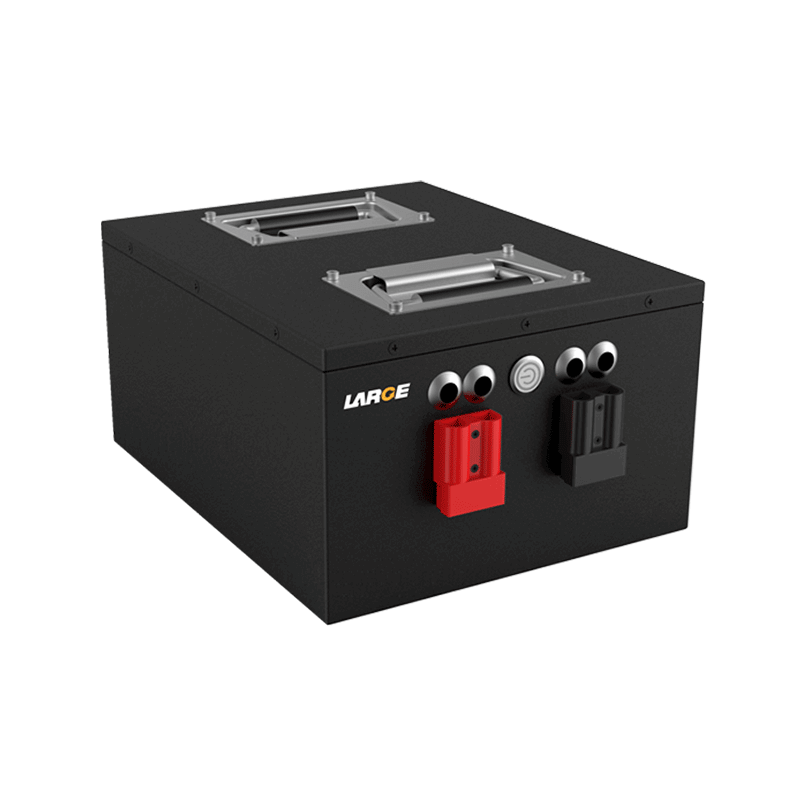

26650 25.6A 60Ah LiFePO4 Battery for AGV with RS485 Communication Port
Product number: 30AQ078-01
Cell model：26650/3.2V/3.5Ah
Battery specification: 26650/8S18P/25.6V/60Ah
Nominal voltage：25.6V
Nominal capacity：60Ah
Charging voltage: 29.2V
Charging current: ≤30A
Discharging current: 20A
Instant discharging current: 60A
End-off voltage: 20V
Internal resistance: ≤200mΩ
Product dimension: 304×243×152（Max）
Battery weight: 15kg
Charging temperature：0～45℃
Discharging temperature: -20～55 ℃
Storage temperature: -20～55 ℃
Temperature protection: 65℃±5℃
Battery case: cold rolling and metal plate
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, equilibrium, etc.
Application field: robot, AGV, RGV
Product features
1. Shock-resistant and dustproof: fill in the shock-resistant structure inside with cold rolling metal plate on which spray the powder to satisfy the requirements of shock-resistant and dustproof.
2. Safety management of the battery: when the temperature probe of battery finds out over temperature status, the protection system is on automatically.
3. The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
