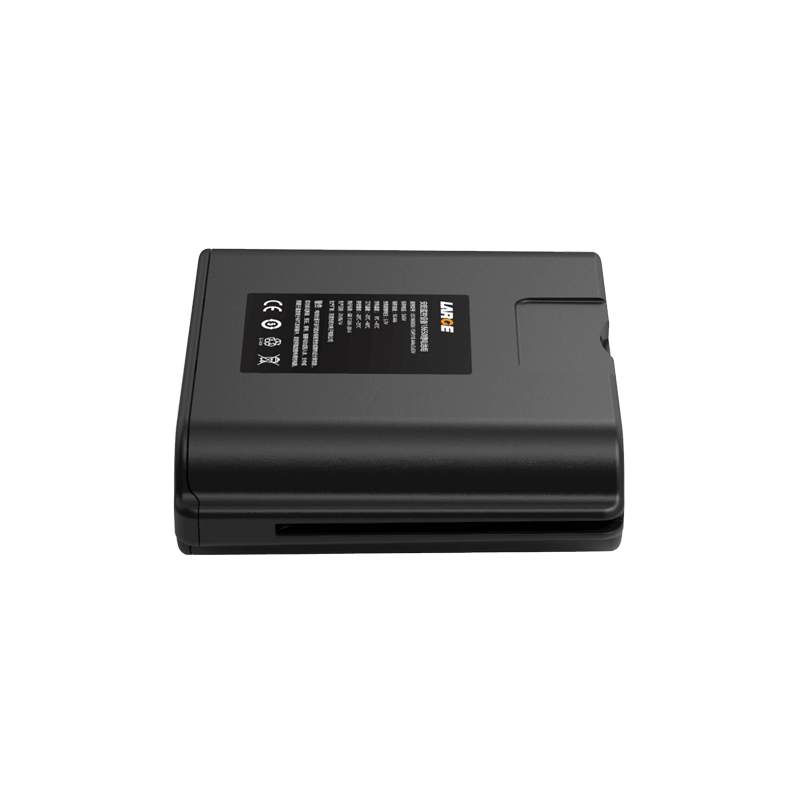

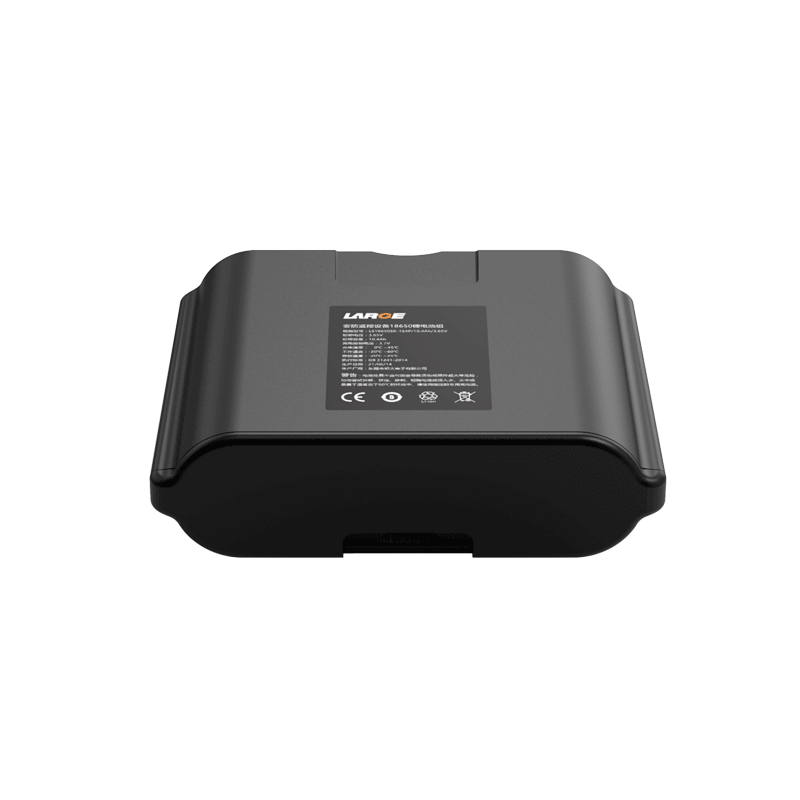

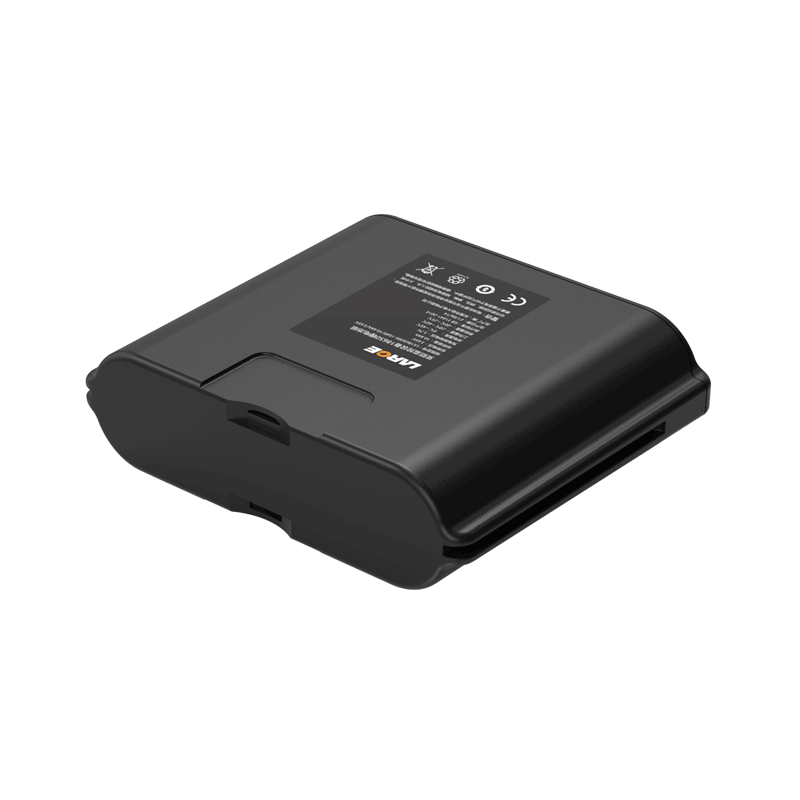

3.65V 10.4Ah security monitoring equipment 18650 lithium battery pack
- Product Number: 01DQ0040-18
- Nominal voltage: 3.7V
- Nominal capacity: 10400mAh
- Battery size: 24.2*87.0*71.0mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Security monitoring
Project Number: 01DQ0040-18
Cell model: LR18650SK/2600mAh/3.65V-LSV
Battery specification: LS18650SK-1S4P/10.4Ah/3.65V
Nominal voltage: 3.7V
Nominal capacity: 10.4Ah
Charging voltage: 5V to 4.2V charging
Charging current: ≤2.5A
Discharge current: 3.0A
Instantaneous discharge current: 9A
Discharge cut-off voltage: 3.0V
Finished product internal resistance: ≤250mΩ
Battery weight: 250g
Product dimensions: 24.2*87.0*71.0mm
Charging temperature: 0-45℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 25℃
Battery housing: ABS+PC
Intelligent lithium battery protection: power calculation, short circuit protection, overcharge protection, overdischarge protection, overcurrent protection, USB charging, etc
Application field: Security monitoring
