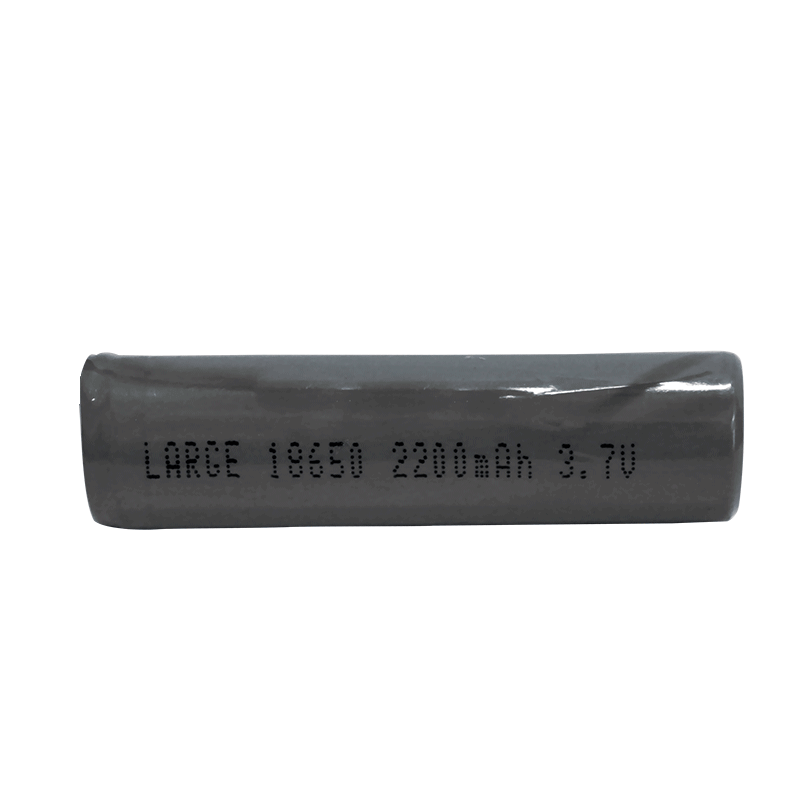

3.7V 2200mAh 18650 Portable Electrocardiogram Monitoring Battery – Lithium Cobalt Oxide Material
Battery packs suitable for medical equipment
Product Number: 13BQ007-01
Rated voltage: 3.7V
Rated capacity: 2200mAh
Battery size: 71mm × 19mm × 2.1mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Medical equipment
Project Number: 13BQ007-01
Battery Model: BAK18650/1S/2200mAh/3.7V
Nominal Voltage: 3.7V
Nominal Capacity: 2200mAh (discharged at 0.2C to 2.75V)
Factory Voltage: ≥3.7V
Product Size: MAX 71×19×2.1mm
Product Resistance: ≤280mΩ
Weight: 80g
Output Type: UL1007 24#80±5 Red Black, Strip 2±0.5mm
Execution Standard: GB/T 18287-2000
Shelf Life: 12 months
Operating Temperature: 0~45℃ (Charging), -20~60℃ (Discharging)
Battery Charging: Charging Limit Voltage: 4.2V Charging Current: 1100mA (Standard), 2200mA (Maximum)
Battery Discharging: Discharge Cut-off Voltage: 2.75V Discharge Current: 440mA (Standard), 4400mA (Maximum)
