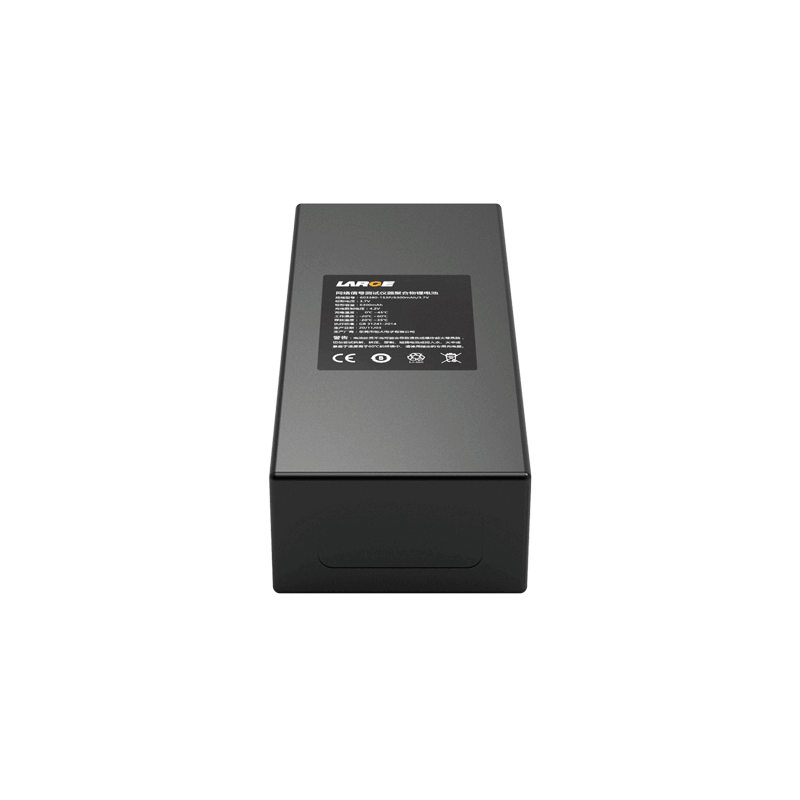

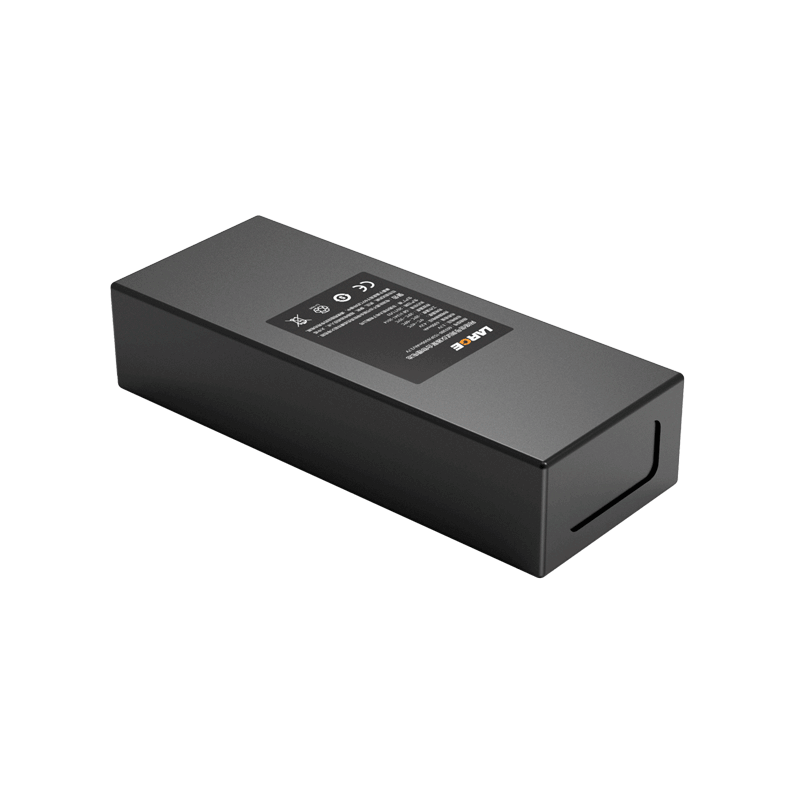

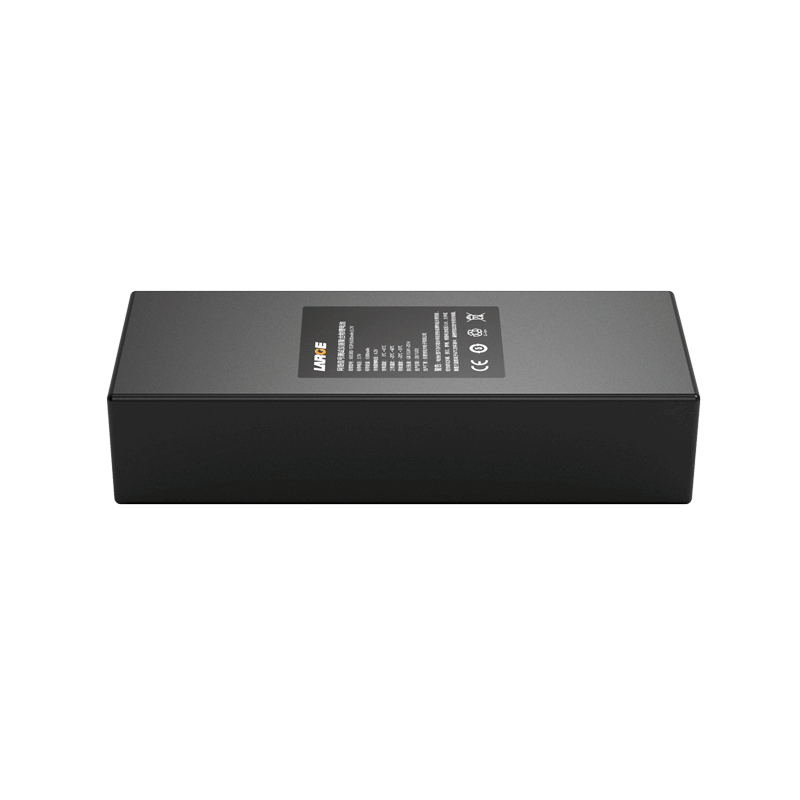

3.7V 6300mAh network signal testing instrument polymer lithium battery
- Product Number: 01WQ0037-20
- Nominal voltage: 3.7V
- Nominal capacity: 6300mAh
- Battery size: 86×34×19mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60 ℃
- Application fields: Network signal testing instruments, portable and handheld terminal testing equipment fields
3.7V 6300mAh network signal testing instrument polymer lithium battery
Product Number: 01WQ0037-20
Battery cell model: 603380-2100mAh-3.7V
Battery specification: 603380-1S3P/6300mAh/3.7V
Product dimensions: 86×34×19mm (Max)
Nominal voltage: 3.7V
Nominal capacity: 6300mAh
Charging voltage: 4.2V
Charging current: ≤3A
Discharge current: ≤3A
Discharge cut-off voltage: 3.0V
Finished product internal resistance: ≤180mΩ
Battery weight: 140g
Charging temperature: 0-45℃
Discharge temperature: -20 to 60℃
Storage temperature: -20 to 35℃
Battery packaging: PVC heat shrink film packaging
Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc
Application fields: Network signal testing instruments, portable and handheld terminal testing equipment fields
