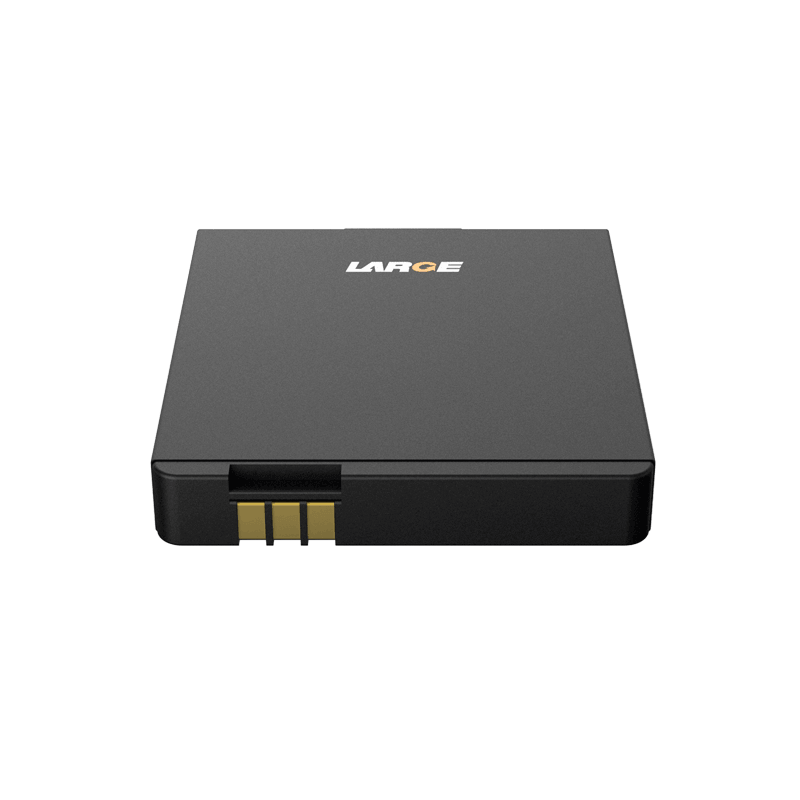

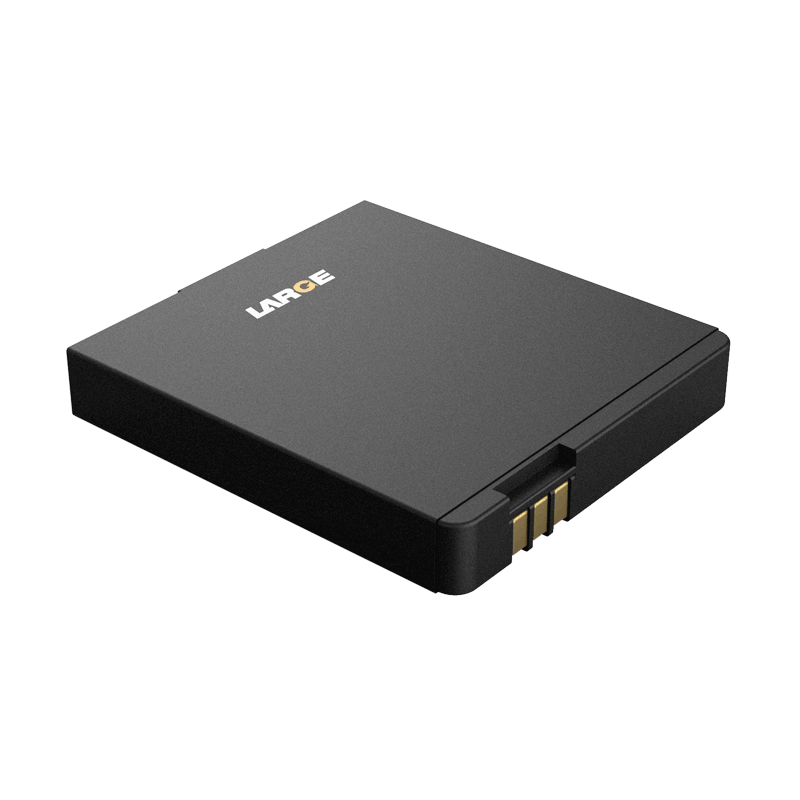

3.7V 780mAh Li-Polymer Battery

Designed for Power System Decoder Applications, Compact and Reliable

Product number: 03DQ0101-05
Nominal voltage: 3.7V
Nominal capacity: 780mAh
Battery size: 40*36.6*6.8mm (Max)
Charging temperature: 0～45℃
Discharging temperature: -25～60℃
Application areas: Power system decoder, handheld tester, portable handheld device field

Product number: 03DQ0101-05
Cell model: 553436-780mAh-3.7V
Battery specifications: 553436-1S1P-780mAh-3.7V
Nominal voltage: 3.7V
Nominal capacity: 780mAh
Charging voltage: 4.2V
Charging current: ≤0.78A
Discharge current: 0.15A
Instantaneous discharge current: 1.6A
Discharge cut-off voltage: 3.0V
Finished product internal resistance: ≤200mΩ
Battery weight: 20g
Product size: 40*36.6*6.8mm (Max)
Charging temperature: 0～45℃
Discharge temperature: -25～60℃
Storage temperature: -25～35℃
Battery shell: engineering plastic ABS+PC
Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, overcurrent protection, etc.
Application areas: power system decoder, handheld tester, portable handheld device field

ABS+PC shell increases the reliability and firmness of the battery
Hardware output end: uses gold-plated shrapnel output to increase the reliability of conductivity;
Battery protection chip: uses imported precision protection chip, with high stability, high-precision monitoring, precise control, and maximum elimination of safety hazards.
The battery pack is safe, has good discharge performance, and has a long cycle life;
The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving, and environmental protection;
