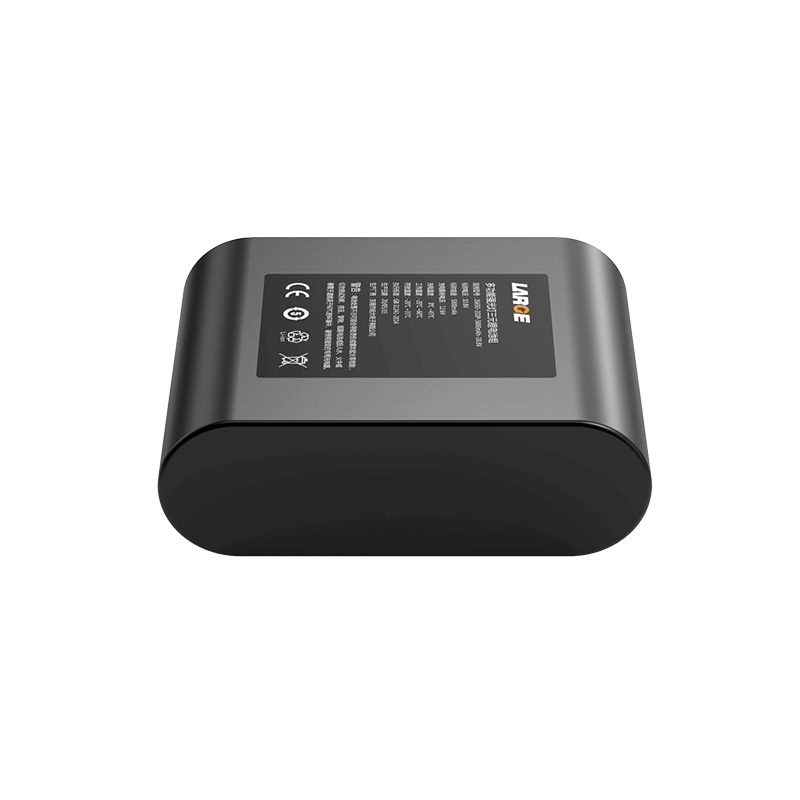

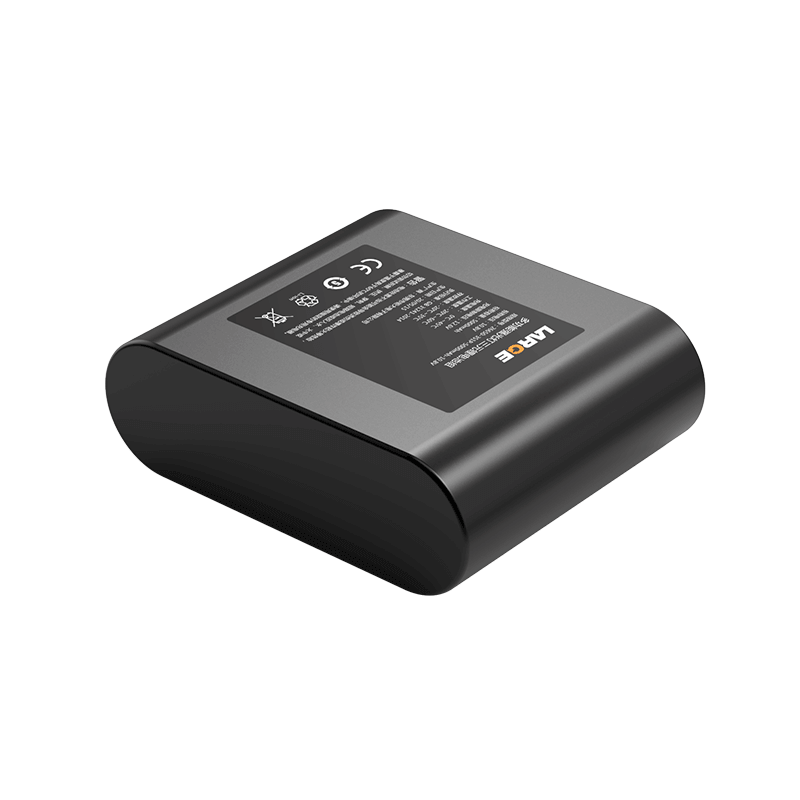

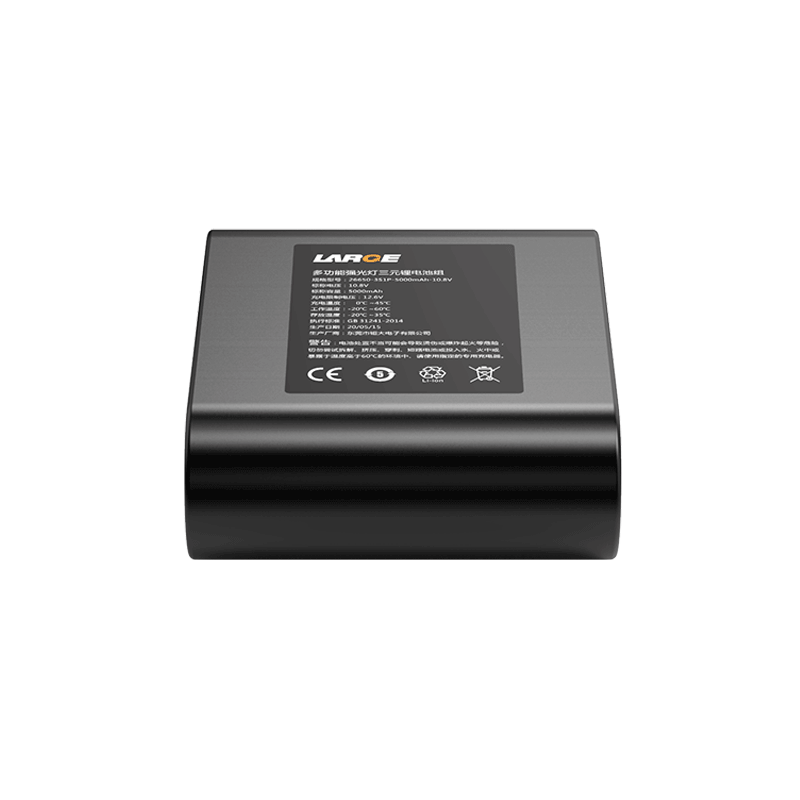

Custom Lithium ion Battery Pack
Product number: 04BQ118-37
Cell model: 26650-5000 MAH-3.6V
Battery specifications: 26650-3S1P-5000mah -10.8V
Product size: 82*74*28.5mm
Nominal voltage: 10.8V
Nominal capacity: 5000mAh
Finished internal resistance: ≤200mΩ
Charging voltage: 12.6V
Charging current: ≤2.4A
Discharge current: ≤2.4A
Discharge cut-off voltage: 8.25V
Battery weight: 300g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 ~ 35℃
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over temperature protection, over current protection,ESD protection and so on
Application: portable multi-functional light, portable lighting equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
