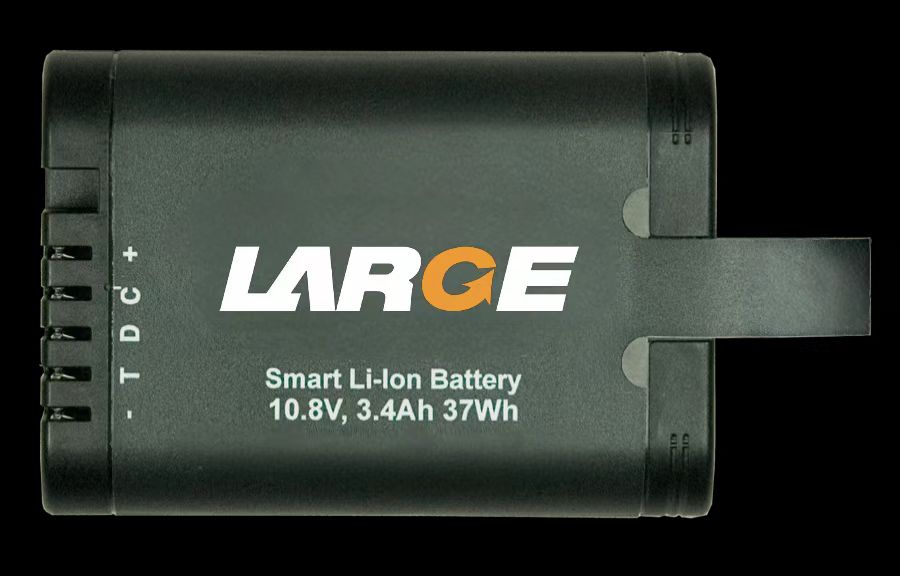

41AQ508
The 41AQ508 (3S1P) 10.8V smart lithium-ion battery is the IEC, UL, CSA 62133-2, KC, BIS, and PSE certified version of the 41AQ507 model. It incorporates the safety and functionality features trusted by designers and engineers, including SMBus communication, a convenient pull tab for easy removal, and an on-pack LCD display for relative State of Charge (SOC) indication.
The 41AQ508 10.8V battery pack operates reliably in low-temperature environments down to -20°C, with low internal resistance that ensures excellent capacity retention and discharge performance. (Note: For low-temperature applications, we recommend testing the device under normal conditions to verify performance.)
With its IEC certification and ongoing compliance support, this 10.8V design makes it an excellent choice for portable medical and instrumentation devices.
Dimensions (inches): 3.34″ × 2.31″ × 0.86″
Dimensions (mm): 84.87 mm × 58.77 mm × 21.89 mm
Energy (Wh): 37
Shape: Rectangular
Chemistry / Cell Configuration: 2 × 18650 Li-ion cells / 2S1P configuration
Lithium Equivalent Content: 3 g
Cavity Size: 23.5 mm × 60 mm cross-section
Fuel Gauge Display: Always-on 5-bar LCD display
IP Rating: None
Features:
• SMBus communication
• Convenient pull tab for easy removal
• On-pack LCD display for relative State of Charge (SOC) indication
Our expertise lies in creating customized hybrid battery systems that seamlessly integrate standard components to achieve optimal performance.
Want to get in touch with our experts? Click here to contact us.
41AQ508 Smart Li-ion Battery Customization Options:
• SHA-1 security handshake
• Custom labeling
• Custom firmware
• Additional performance options for OEM applications
It is recommended to use the N-Series charger for charging these batteries.
