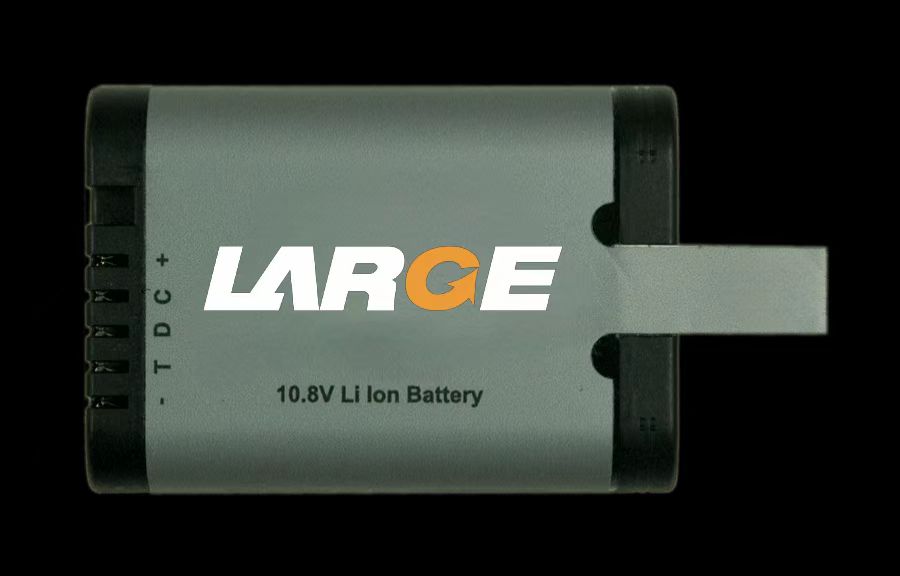

41AQ510
The 41AQ510 battery pack offers a higher discharge rate and lower operating temperature than the 41AQ507 smart battery, while maintaining the trusted safety and functionality features relied upon by designers and engineers — including SMBus communication, a convenient pull tab for easy removal, and an on-pack LCD display for relative State of Charge (SOC) indication.
The 41AQ510 (3S1P) 10.8V Li-ion battery pack has been tested to operate reliably at temperatures as low as -30°C, making it ideal for compact handheld devices. (Note: For low-temperature applications, we strongly recommend testing the device within your specific use conditions.)
The 41AQ510 cell delivers an 8A discharge capability, making it an excellent choice as a small hot-swappable battery to temporarily power devices while the main battery is being charged.
Dimensions (inches): 3.40″ × 2.40″ × 0.90″
Dimensions (mm): 85.1 mm × 59.02 mm × 22.4 mm
Energy (Wh): 30
Shape: Rectangular
Chemistry / Cell Configuration: 3 × 18650 Li-ion cells / 3S1P configuration
Lithium Equivalent Content: 3 g
Cavity Size: 23.5 mm × 60 mm cross-section
Fuel Gauge Display: Always-on 5-bar LCD display
IP Rating: None
Features:
• SMBus communication
• Convenient pull tab for easy removal
• On-pack LCD display for relative State of Charge (SOC) indication
Our expertise lies in developing custom hybrid battery systems that seamlessly integrate standard components to achieve optimal performance.
Want to connect with our experts? Click here to contact us.
41AQ510 Smart Li-ion Battery Customization Options:
• SHA-1 security handshake
• Custom labeling
• Custom firmware
• Additional performance options for OEM applications
It is recommended to use the N-Series charger for charging these batteries.
