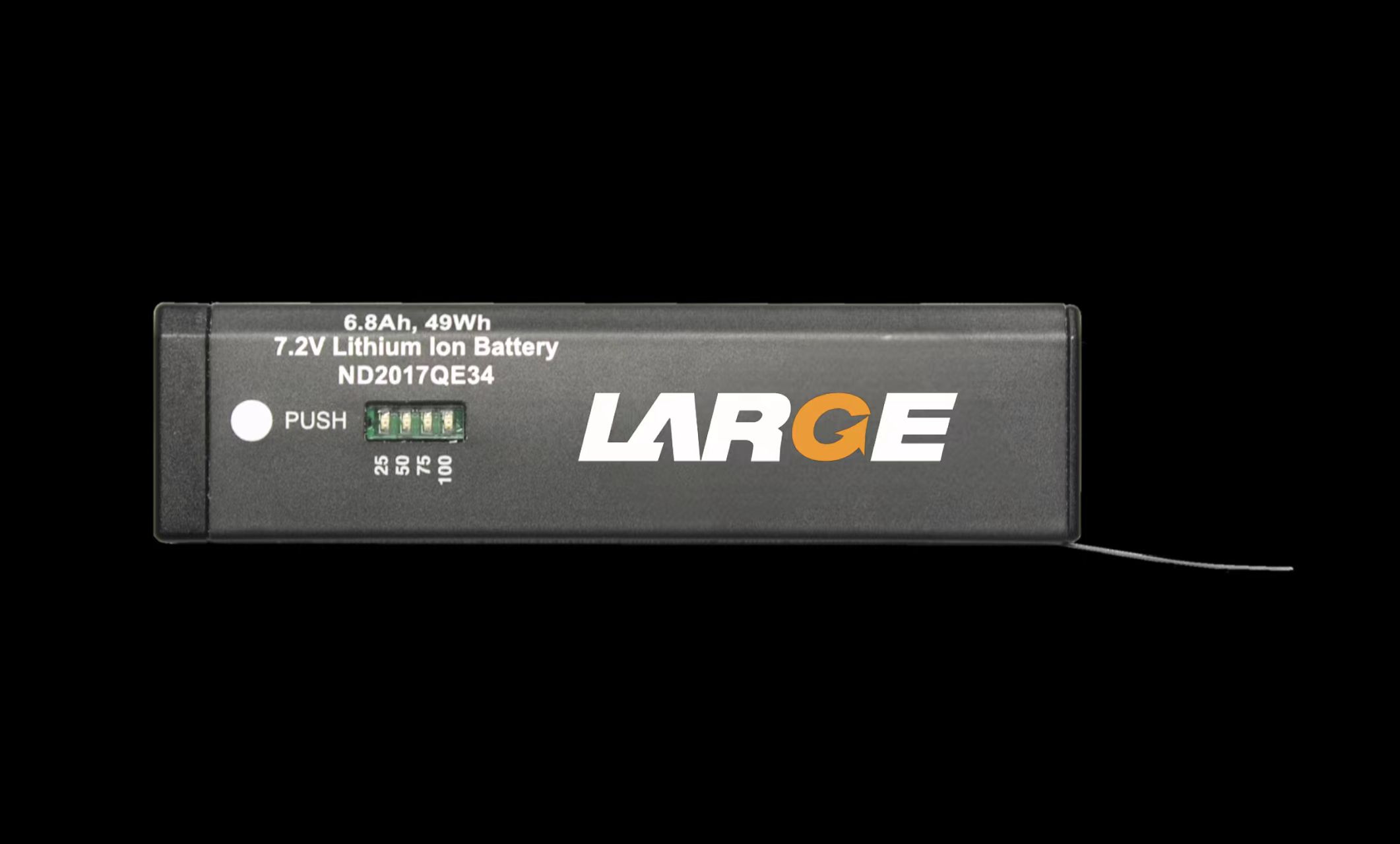

41AQ515
The 41AQ515 (2S2P) 7.2V smart lithium-ion battery is the IEC, UL, CSA 62133-2, and KC certified version of the 41AQ514 model.
It integrates the safety and functionality features trusted by designers and engineers, including SMBus communication, a convenient pull tab for easy removal, and an on-pack LED display for relative State of Charge (SOC) indication.
This battery is designed for portable and handheld devices, ensuring reliable performance and safety across a wide range of operating conditions.
Dimensions (inches): 5.69″ × 1.48″ × 0.79″
Dimensions (mm): 144.65 mm × 37.59 mm × 20.07 mm
Energy (Wh): 49
Shape: Rectangular
Chemistry / Cell Configuration: 4 × 18650 Li-ion cells / 2S2P configuration
Fuel Gauge Display: Button-activated 4-bar LED display
IP Rating: None
Features:
• SMBus communication
• Convenient pull tab for easy removal
• On-pack LCD display for relative State of Charge (SOC) indication
Our expertise lies in developing custom hybrid battery systems that seamlessly integrate standard components to deliver optimal performance.
Want to connect with our experts? Click here to contact us.
41AQ515 Smart Li-ion Battery Customization Options:
• SHA-1 security handshake
• Custom labeling
• Custom firmware
• Additional performance options for OEM applications
