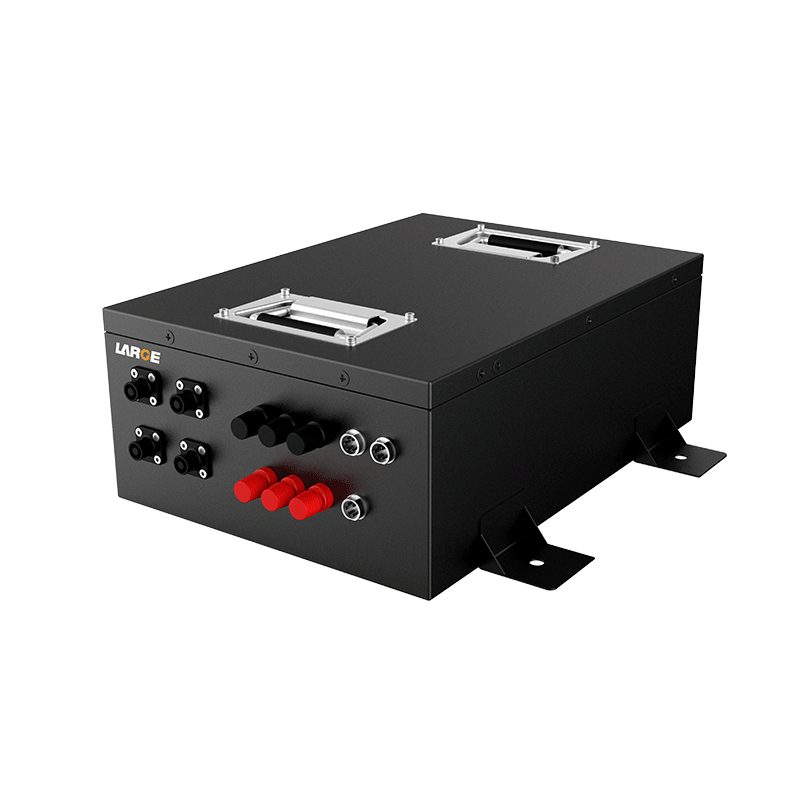

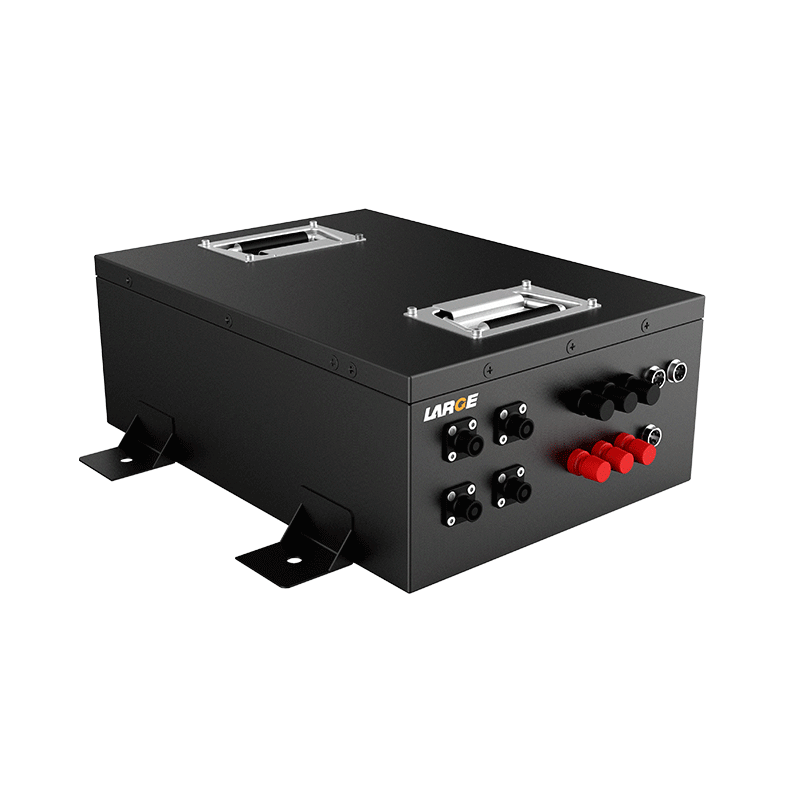

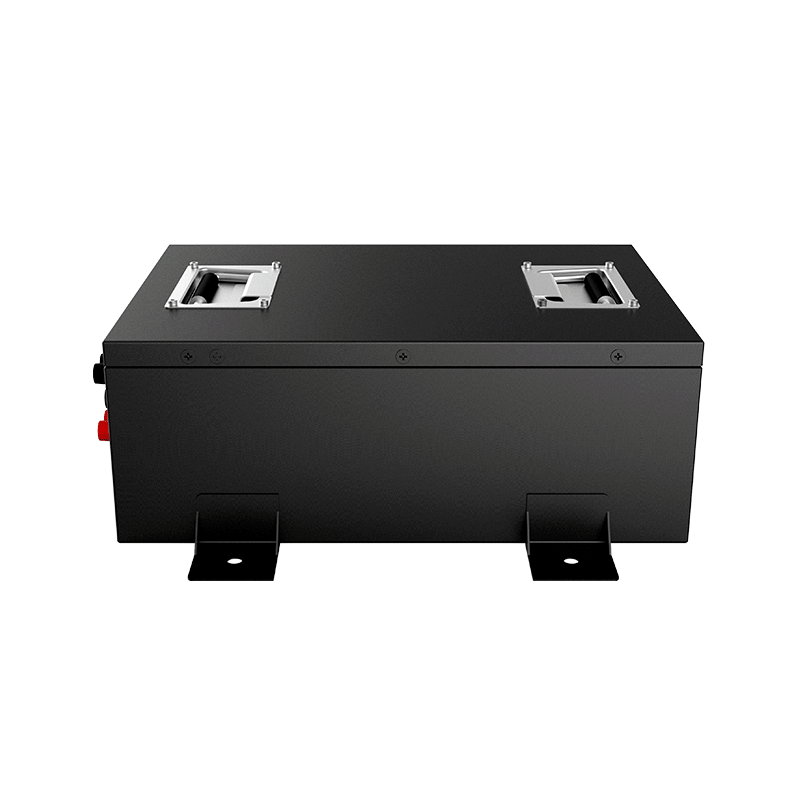

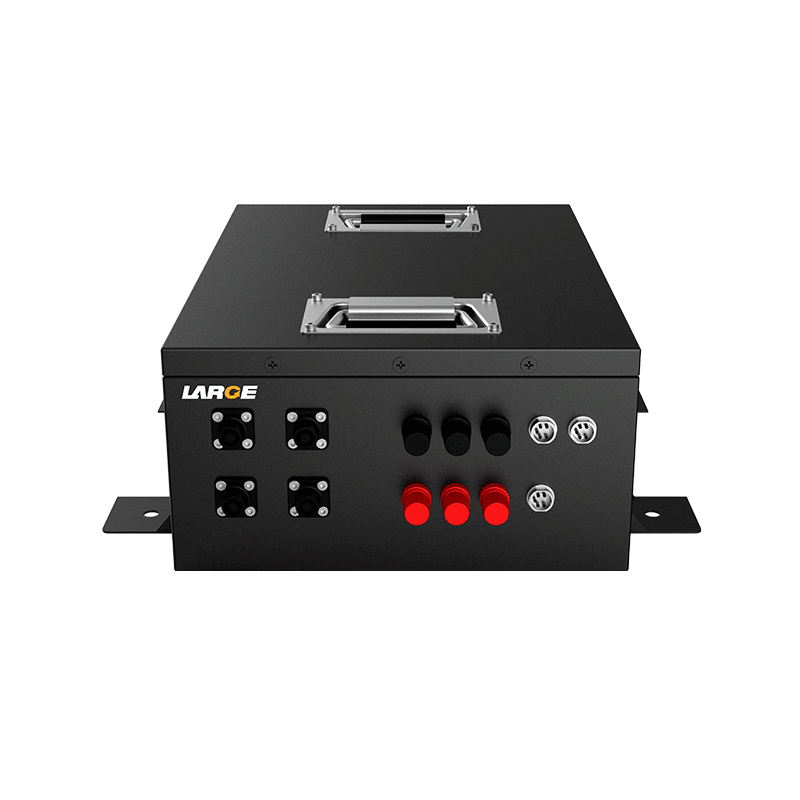

48V 50000mAh LiFePO4 Battery
For AGV, with CAN Communication
- Product Number: 37DZ031-01
- Nominal voltage: 48.0V
- Nominal capacity: 50,000 mah
- Battery size: 420*300*170mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application fields: AGV vehicles, robots
- Project Number: 37DZ031-01
- Battery cell model: 0150651500/3.2V/10Ah
- Battery specification: 15S5P/48V/50Ah
- Nominal voltage: 48V
- Nominal capacity: 50Ah
- Charging voltage: 54.75V
- Charging current: ≤15A
- Discharge current: 100A
- Instantaneous discharge current: 150A
- Discharge cut-off voltage: 30V
- Finished product internal resistance: ≤100mΩ
- Battery weight: 30Kg
- Product size: 420*300*170mm (Max)
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Storage temperature: -20 to 35℃
- Temperature protection: 70℃±5℃
- Battery casing: Sheet metal casing
- Communication Management: CAN
- Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature protection, balancing, etc
- Application field: AGV vehicles
High current output
The battery is equipped with built-in temperature protection
The battery is equipped with a power detection port
CAN communication management: SOC management, fault early warning
The battery pack is safe and has a long cycle life
The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection
