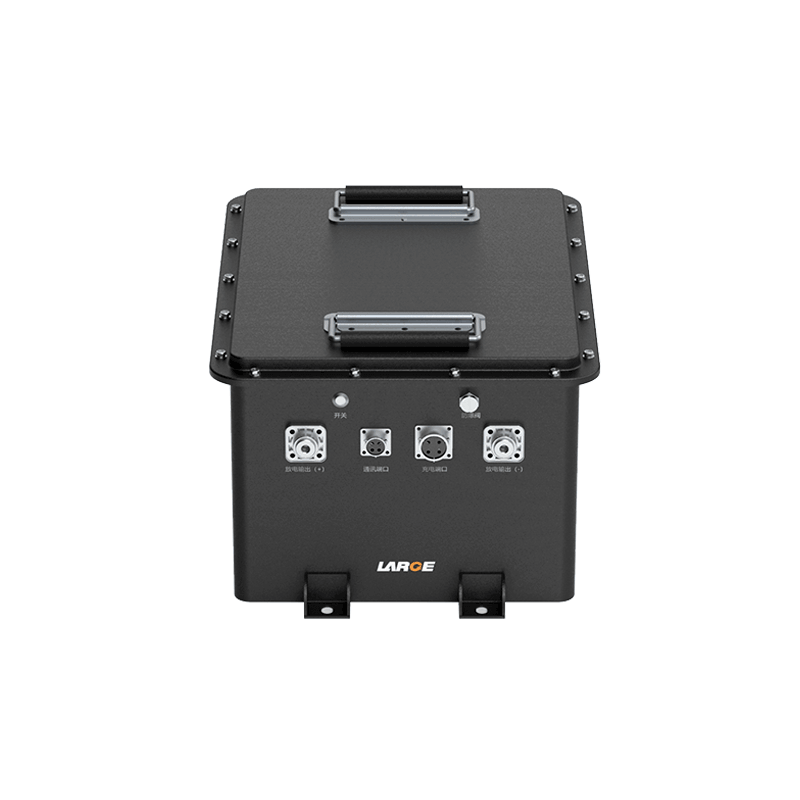

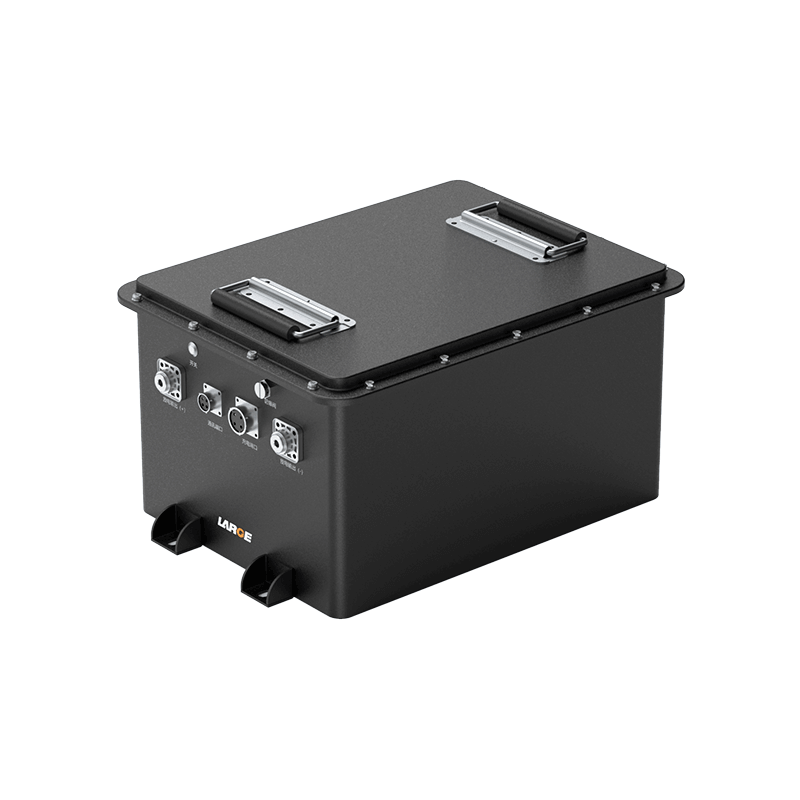

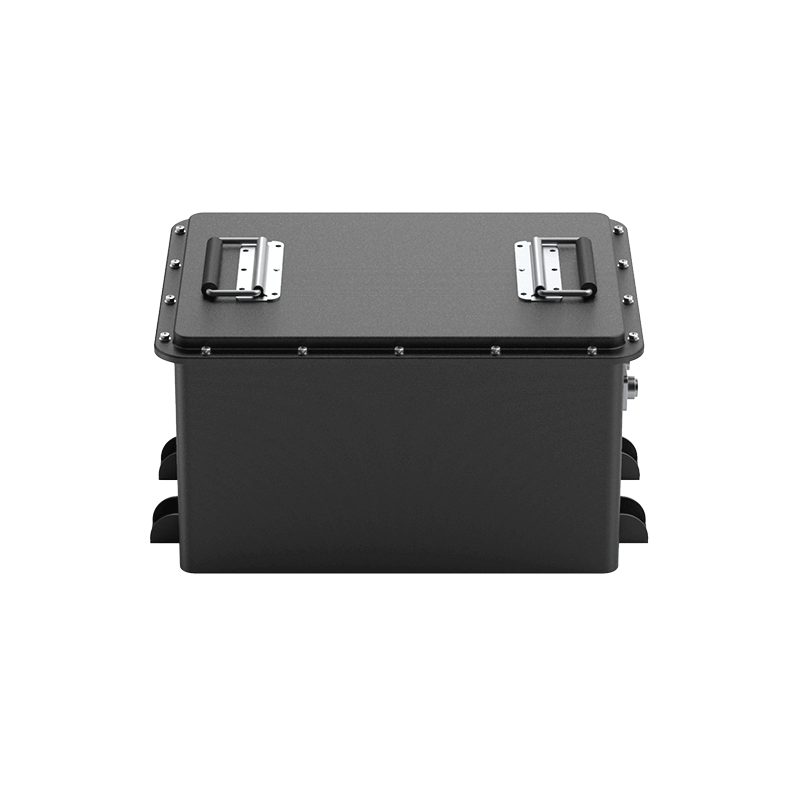

51.2V 105000mAh LiFePO4 Battery
For Golf Cart
Product Number: 00BQ48100-01
Nominal voltage: 51.2V
Nominal capacity: 105,000 mah
Battery size: 240*300*460mm
Charging temperature: 0-55℃
Discharge temperature: -20 to 55℃
Application fields: golf carts, robots, UPS, energy storage
Project Number: 00BQ48100-01
Battery cell model: LF105/105Ah/3.2V
Battery specification: LF105-16S1P/105Ah/51.2V
Nominal voltage: 51.2V
Nominal capacity: 105Ah
Charging voltage: 58.4V
Charging current: ≤50A
Discharge current: 105A
Instantaneous discharge current: 120A
Discharge cut-off voltage: 40.0V
Finished product internal resistance: ≤100mΩ
Battery weight: ≤54kg
Product size: 240*300*460mm
Charging temperature: 0-55℃
Discharge temperature: -20 to 55℃
Storage temperature: -20 to 45℃
Battery casing: Sheet metal casing
Intelligent lithium battery protection: power management (RS485,CAN protocol), short-circuit protection, overcharge protection, over-discharge protection, overcurrent protection, over-temperature protection, etc
Application fields: golf carts, robots, UPS, energy storage
