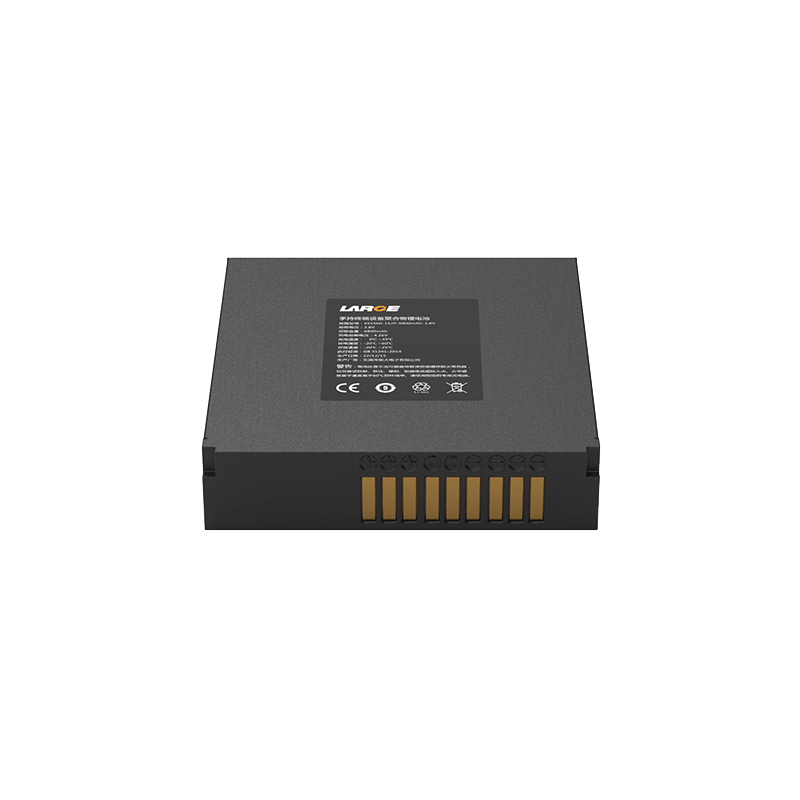

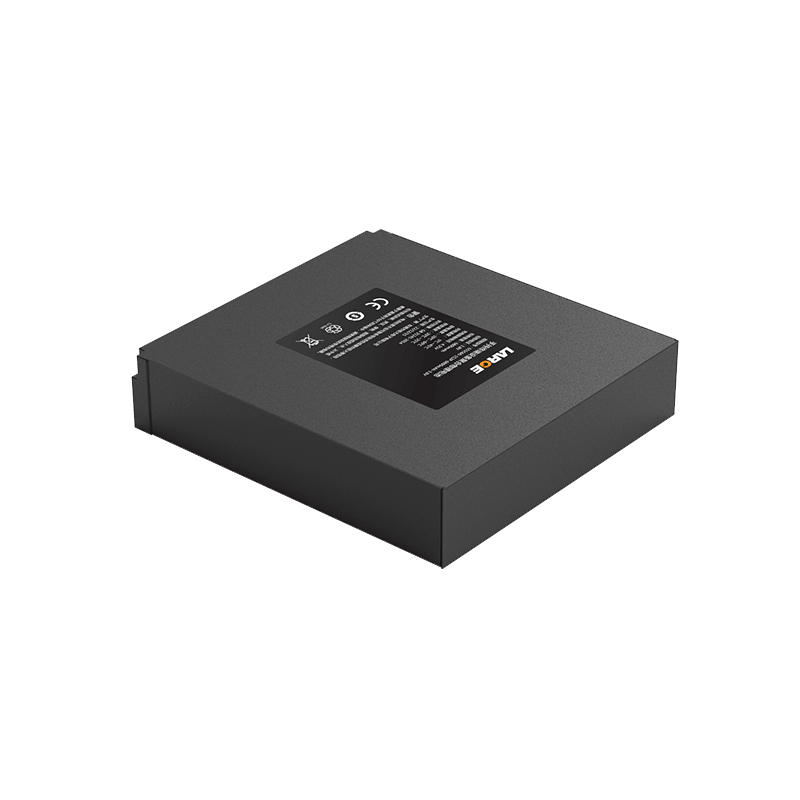

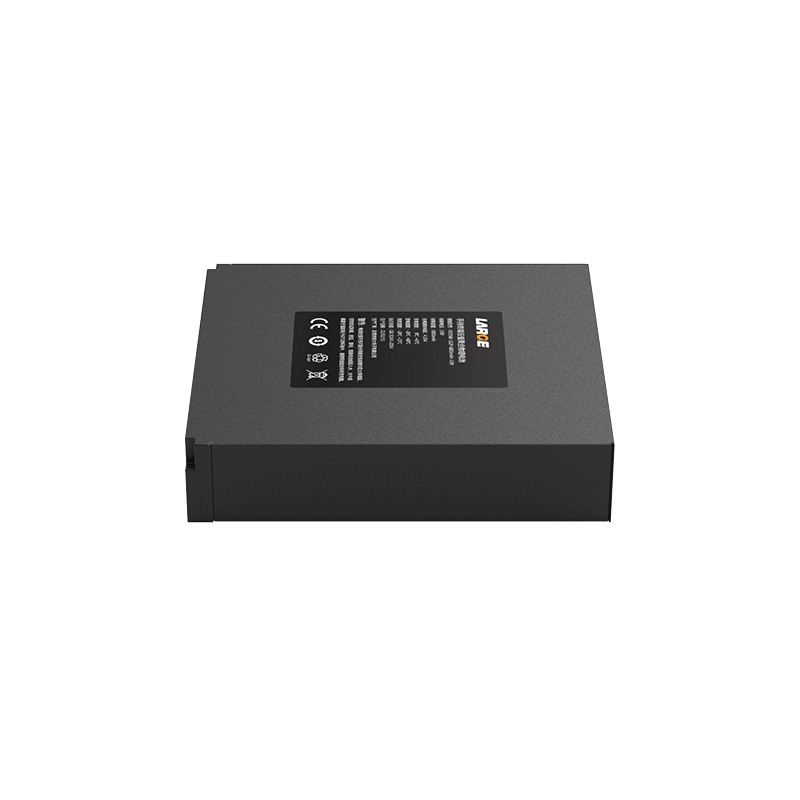

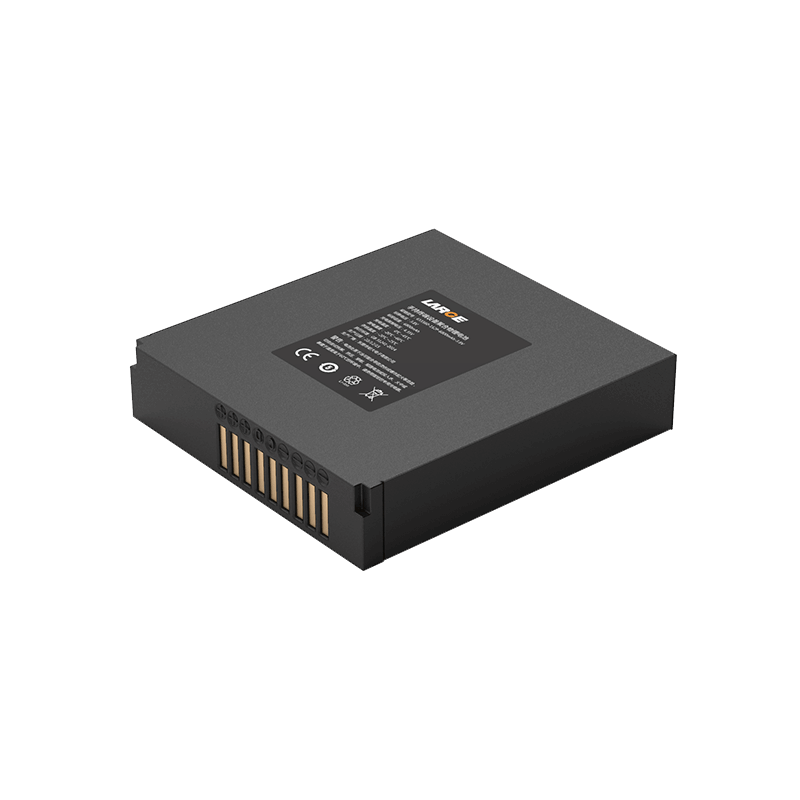

Custom Lithium ion Battery Pack
Product number: 35AQ6817-01
Battery model: 655560-3400mAh-3.8V
Battery specification: 655560-1S2P-6800mAh-3.8V
Product size: 65*60*14mm (Max)
Nominal voltage: 3.8V
Nominal capacity: 6800mAh
Finished internal resistance: ≤150mΩ
Charging voltage: 4.35V
Charging current: ≤3.3A
Discharge current: ≤3.3A
Discharge cut-off voltage: 3.0V
Battery weight: 100g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 ~ 35 ℃
Battery package: Engineering plastic ABS+PC
Output: Gold plated shrapnel
Communication protocol: SMBus
Lithium-ion battery protection: short circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc.
Applications: Handheld devices, portable devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
