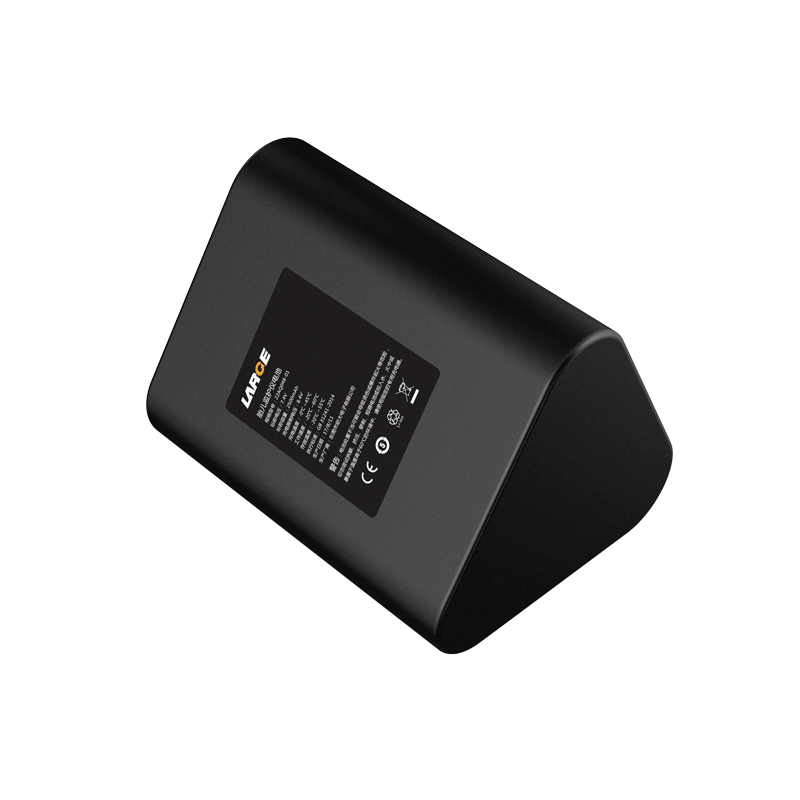

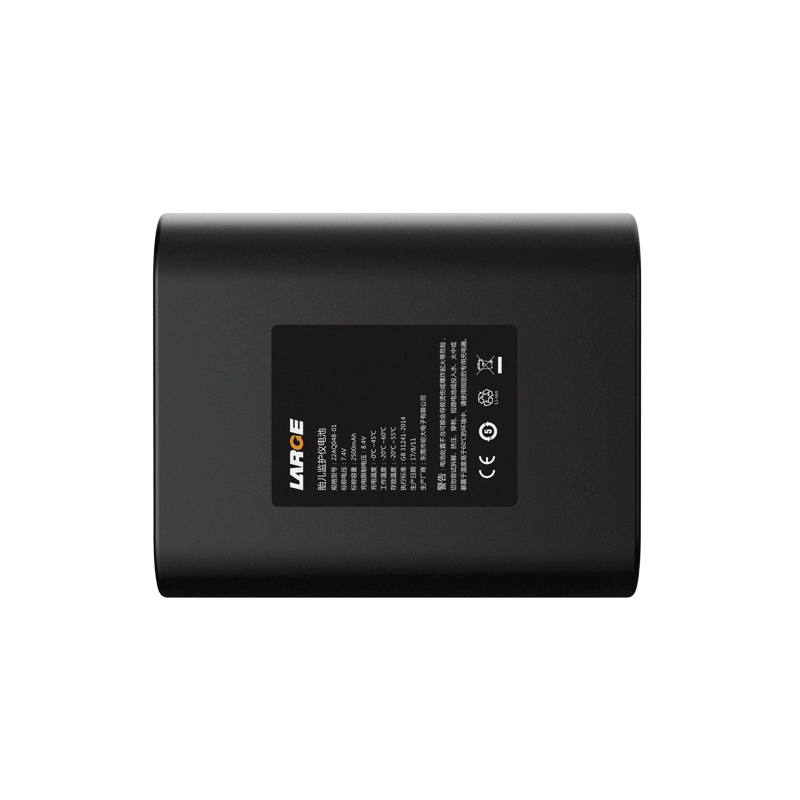

7.4V 2600mAh 18650 fetal monitor battery – lithium cobalt oxide material
Manufacturers of lithium battery packs suitable for medical equipment
Product Number: 22AQ048-01
Rated voltage: 7.4V
Rated capacity: 2500mAh
Battery size: 67.2mm x 37.9mm x 20mm
Charging temperature: 0 – 45℃
Discharge temperature: -20 to 60 degrees Celsius
Application field: Medical equipment
Project Number: 22AQ048-01
Battery Model: Sanyo 18650/2S/2500mAh/7.4V
Nominal Voltage: 7.4V
Nominal Capacity: 2500mAh (discharged at 0.2C to 5.5V)
Factory Voltage: ≥7.4V
Product Size: MAX 67.2 × 37.9 × 20mm
Product Resistance: ≤ 280MΩ
Weight: 100g
Output Method: UL1007 18# 30±5 red and black wires, stripped wire 3±0.5mm
Execution Standard: GB/T 18287-2000
Shelf Life: 12 months
Operating Temperature: 0~45℃ (charging), -20~60℃ (discharging)
Battery Charging: Charging Limit Voltage: 8.4V Charging Current: 1250mA (standard), 2500mA (maximum)
Battery Discharging: Discharge Cut-off Voltage: 5.5V Discharge Current: 500mA (standard), 5000mA (maximum)
