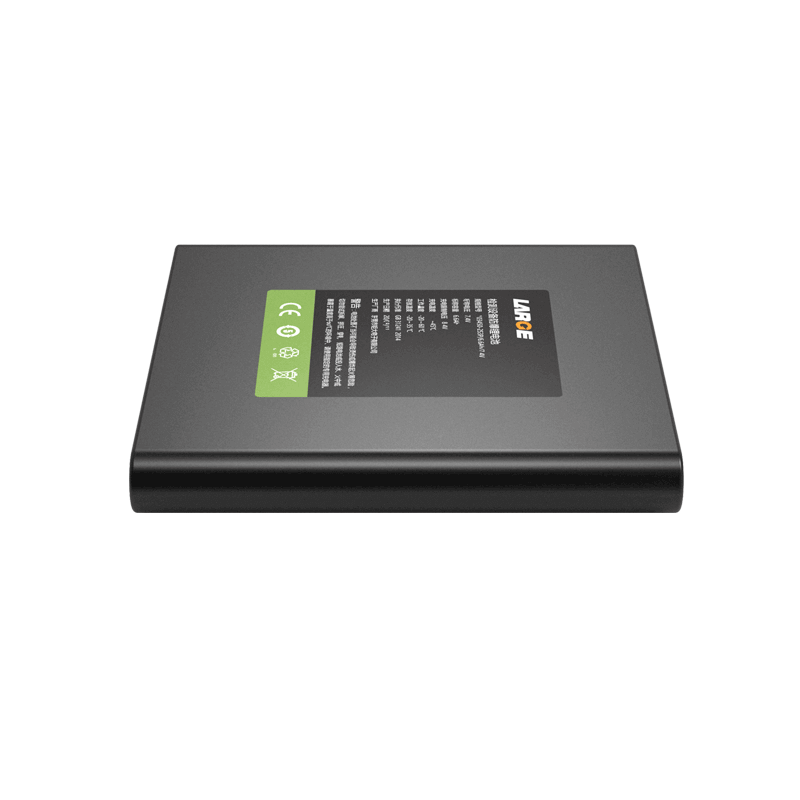

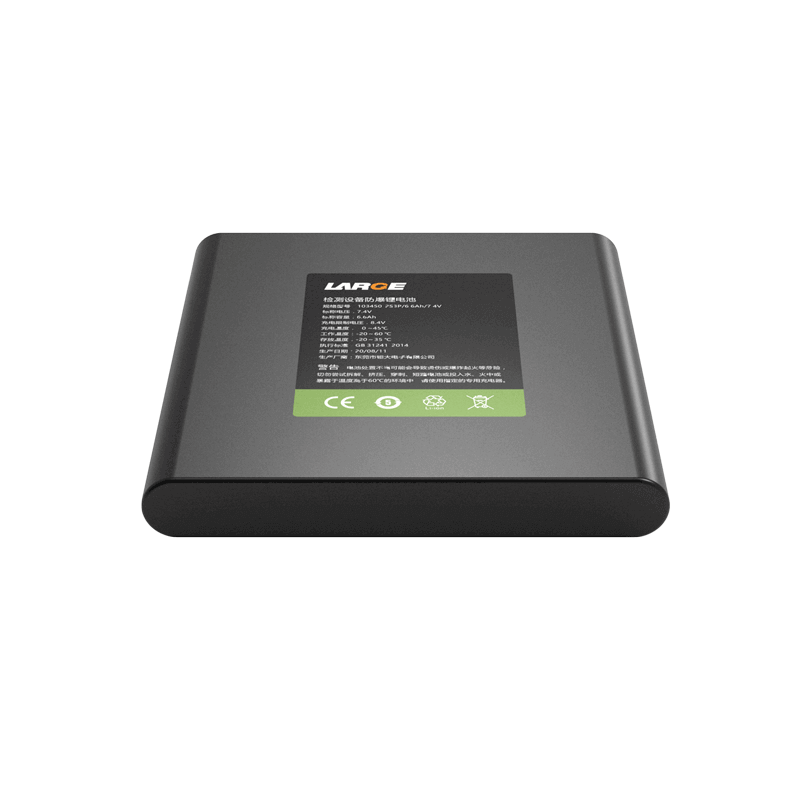

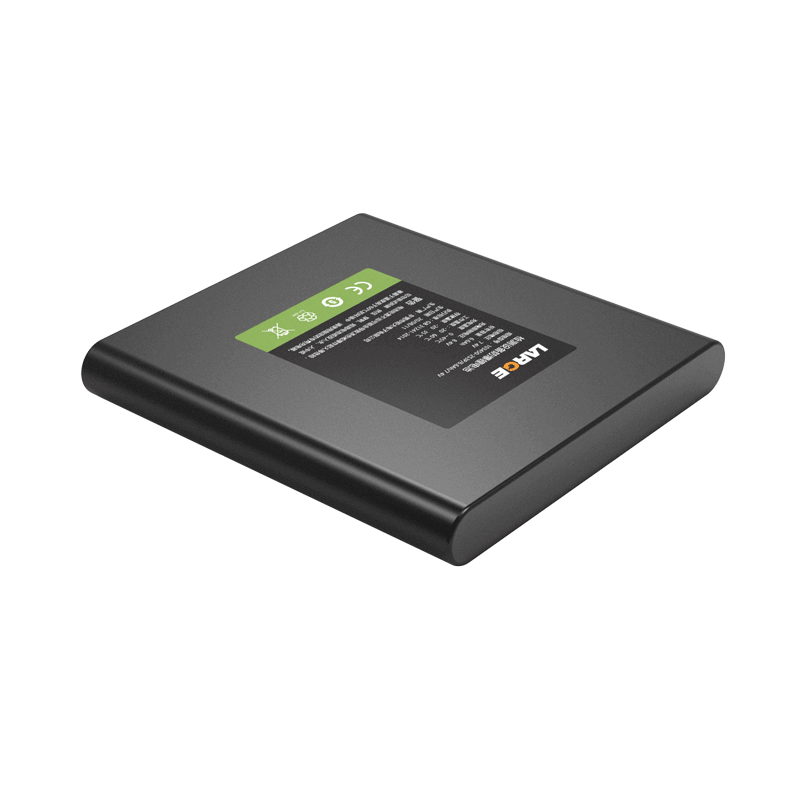

7.4V 6600mAh 103450 explosion-proof lithium battery for testing equipment

Product Number: 02DQ0381-01

Cell model: 103450-2200mAh-3.7V

Battery specification: 103450-2S3P-6.6Ah-7.4V

Product dimensions: 110*103*14mm (Max)

Nominal voltage: 7.4V

Nominal capacity: 6600mAh

Charging voltage: 8.4V

Charging current: ≤2A

Discharge current: ≤2A

Discharge cut-off voltage: 6.0V

Finished product internal resistance: ≤180mΩ

Battery weight: 300g

Charging temperature: 0-45℃

Discharge temperature: -20 to 60℃

Storage temperature: -20 to 35℃

Battery packaging: Blue PVC heat shrink film packaging

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection,ESD protection, etc

Application fields: Portable detection equipment, portable explosion-proof equipment fields

Product features

It can pass the GB3836/Exib iiB T4 explosion-proof test and be applied in special explosion-proof fields. The battery pack is safer and more reliable.

Battery protection management: Utilizing imported protection chips, it features high stability, high-precision monitoring, and precise control, eliminating potential safety hazards to the greatest extent.

The battery pack is safe, has good discharge performance and a long cycle life.

The battery pack has a high cycle life and conforms to the value concepts of low carbon, energy conservation and environmental protection.

Blue PVC heat shrink film encapsulation, simple and reliable, easy to install

It adopts the national standard wire output method, and the plug-in pairs enhance the reliability of conductivity.
