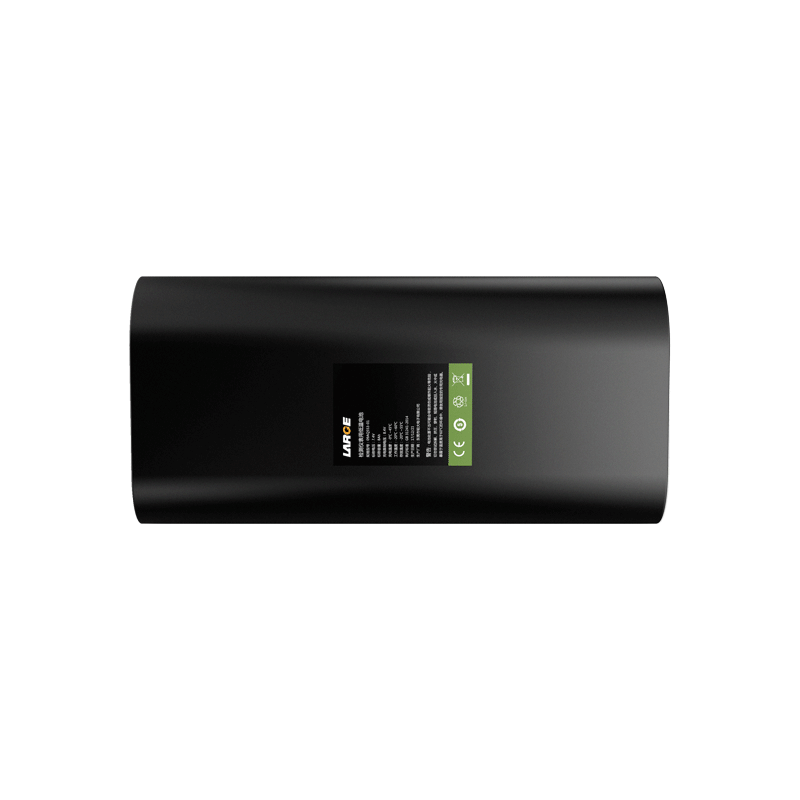

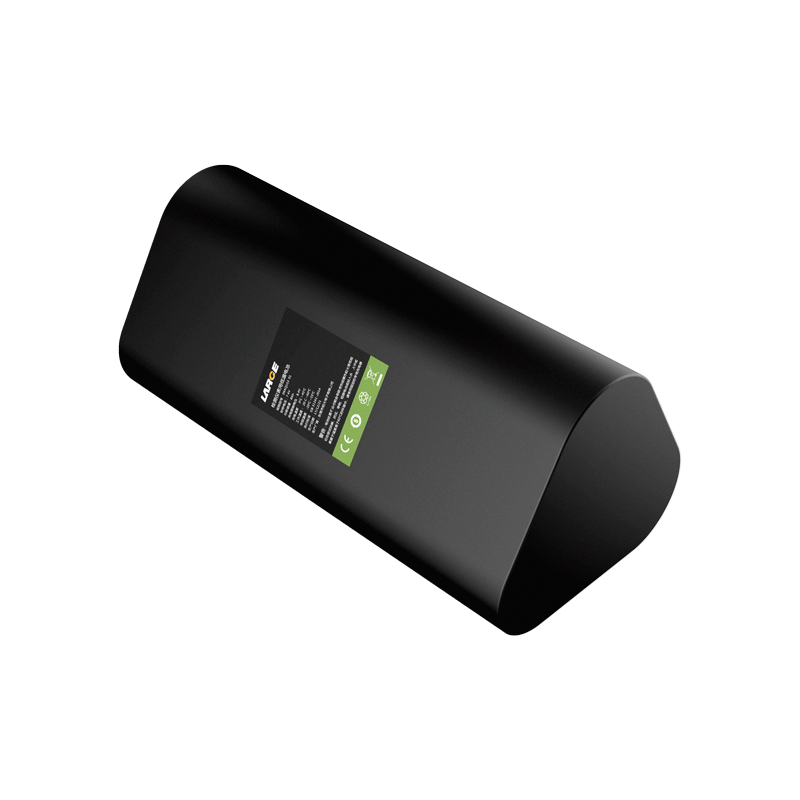

7.4V 8000mAh Low Temperature Lithium-ion Battery (18650)
For Measuring Instrument
- Model number:09AQ553-01
- Nominal voltage:7.4V
- Nominal capacity:8000mAh
- Battery cell:18650/3.7V/2000mAh
- Dimension:210*40*40mm（Max）
- Application:low temperature instrument
Product number: 09AQ553-01
Cell model：18650/3.7V/2000mAh
Battery specification: 18650-2S4P/7.4V/8000mAh
Nominal voltage：7.4V
Nominal capacity：8Ah
Charging voltage: 8.4V
Charging current: ≤3A
Discharging current: 3A
Instant discharging current: 4A
End-off voltage: 2.4V
Internal resistance: ≤150mΩ
Battery weight: 360g
Product dimension: 210*40*40mm（Max）
Charging temperature：0～45℃
Discharging temperature: -40～60℃
Storage temperature: -20～35℃
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: low temperature instrument
