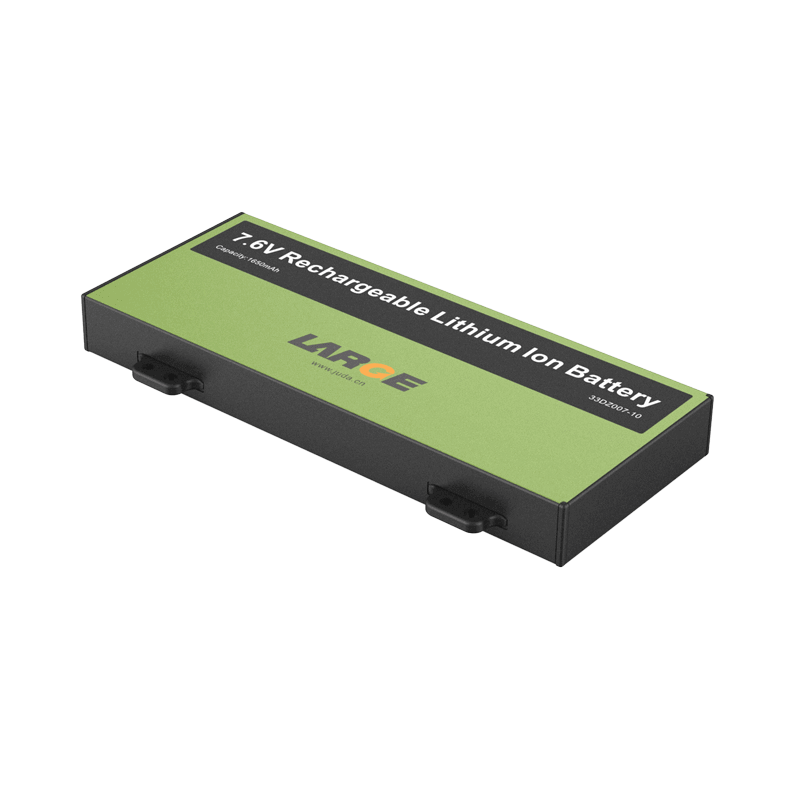

7.6V 1650mAh Low-Temperature LiCoO₂ Li-Polymer Battery
Designed by JUDIAN for Harsh Environments, Capable of -40°C Discharge, Ideal for Rugged Outdoor Applications
- Product number: 33DZ007-10
- Nominal voltage: 7.4V
- Nominal capacity: 1650mAh
- Battery size: L*W*H 94.2*38.5*10.5mm
- Charging temperature: 0～45℃
- Discharging temperature: -40～60℃
- Application area: Handheld tablet
- Product number: 33DZ007-10
- Battery model: LA483685/1650mAh/3.70V
- Nominal voltage: 7.4V
- Nominal capacity: 1650mAh
- Charging voltage: 8.4V
- Charging current: ≤800mA
- Discharge current: 1.65A
- Instantaneous discharge current: 1.65A
- Discharge cut-off voltage: 5V
- Finished product internal resistance: ≤150mΩ
- Battery weight: 100g
- Product size: L*W*H 94.2*38.5*10.5mm
- Charging temperature: 0～45℃
- Discharge temperature: -40～55℃
- Storage temperature: -20～45℃
- Battery shell: industrial grade
- Lithium battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, balancing, with IIC communication, etc.
- Application areas: handheld tablets
- Current: Maximum sustainable discharge of 1.65A.
- Data communication management: Adopt imported software management chip, IIC communication function, accurate data transmission, precise temperature control, and eliminate safety hazards to the maximum extent.
- Battery characteristics: Adopt self-developed ultra-low temperature polymer battery, which can continuously discharge more than 80% of capacity at -40℃.
- The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection.
