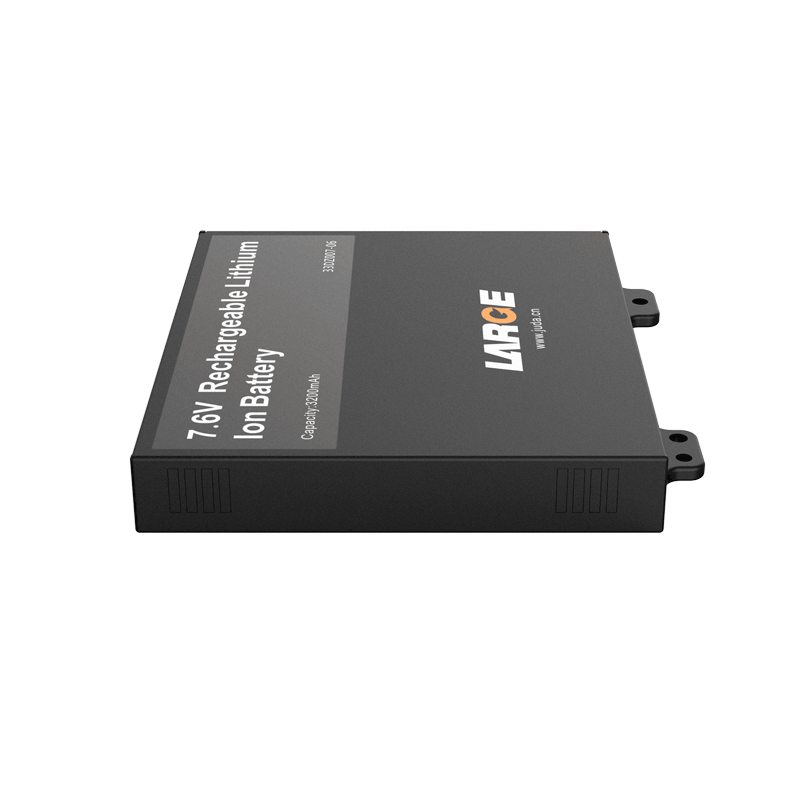

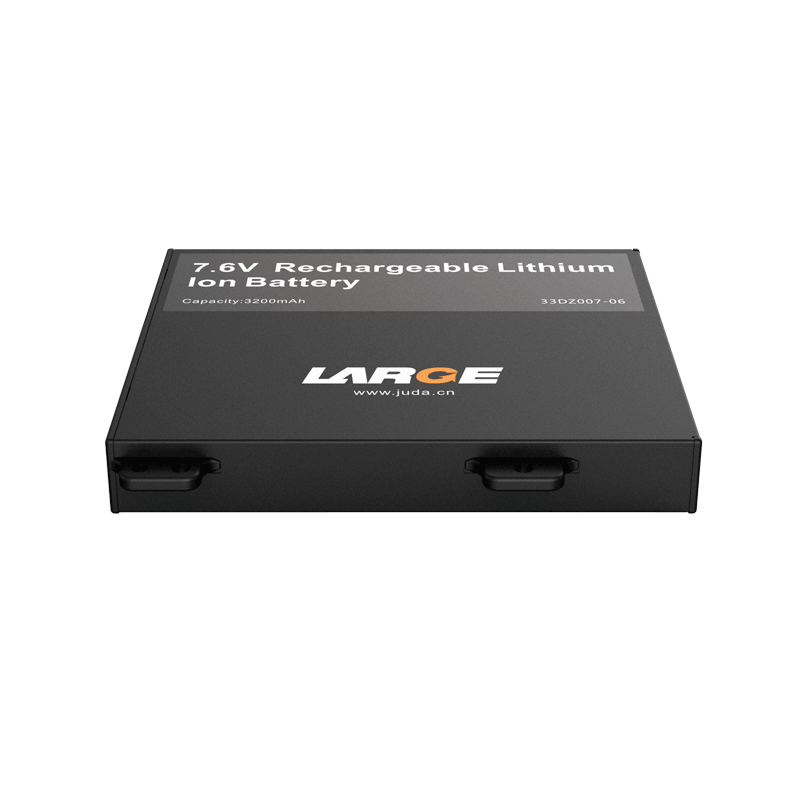

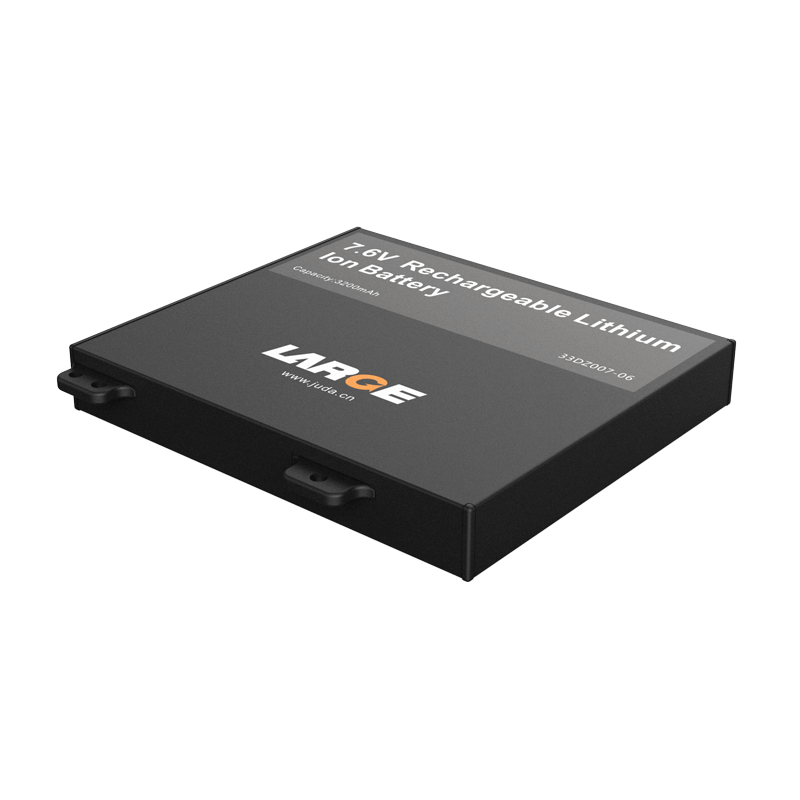

7.6V 3200mAh Smart Li-Polymer Battery Pack
Designed for Handheld Tablets, Supporting I²C Communication Protocol
- Product number: 33DZ007-06
- Nominal voltage: 7.6V
- Nominal capacity: 3200mAh
- Battery size: 73*68.5*10.5mm (L*W*H)
- Charging temperature: 0~45℃
- Discharging temperature: -10~55℃
- Application area: Handheld tablet
- Product number: 33DZ007-06
- Cell model: LA486068/3200mAh/3.80V
- Battery specifications: LA486068-1S1P/7.6V/3200mAh
- Nominal voltage: 7.6V
- Nominal capacity: 3.2Ah
- Charging voltage: 8.7V
- Charging current: ≤1.6A
- Discharge current: 3A
- Instantaneous discharge current: 3.2A
- Discharge cut-off voltage: 6V
- Finished product internal resistance: ≤150mΩ
- Battery weight: 300g
- Product size: 73*68.5*10.5mm (L*W*H)
- Charging temperature: 0~45℃
- Discharge temperature: -10～55℃
- Storage temperature: -20～45℃
- Battery casing: industrial grade
- Lithium battery protection: short circuit protection, overcharge protection, over discharge protection, overcurrent protection, balancing, with IIC communication, etc.
- Application areas: handheld tablets
- Current: Maximum sustainable discharge of 3.2A.
- Data communication management: Adopt imported software management chip, IIC communication function, accurate data transmission, precise temperature control, and minimize safety hazards.
- Battery characteristics: Adopt self-developed ultra-high capacity polymer battery.
- The battery pack has a high cycle life, which conforms to the value concept of low carbon, energy saving and environmental protection;
