Integrated Solar Cell
Custom 12.8V 60Ah solar power supply system with 120W panel for outdoor B2B projects.

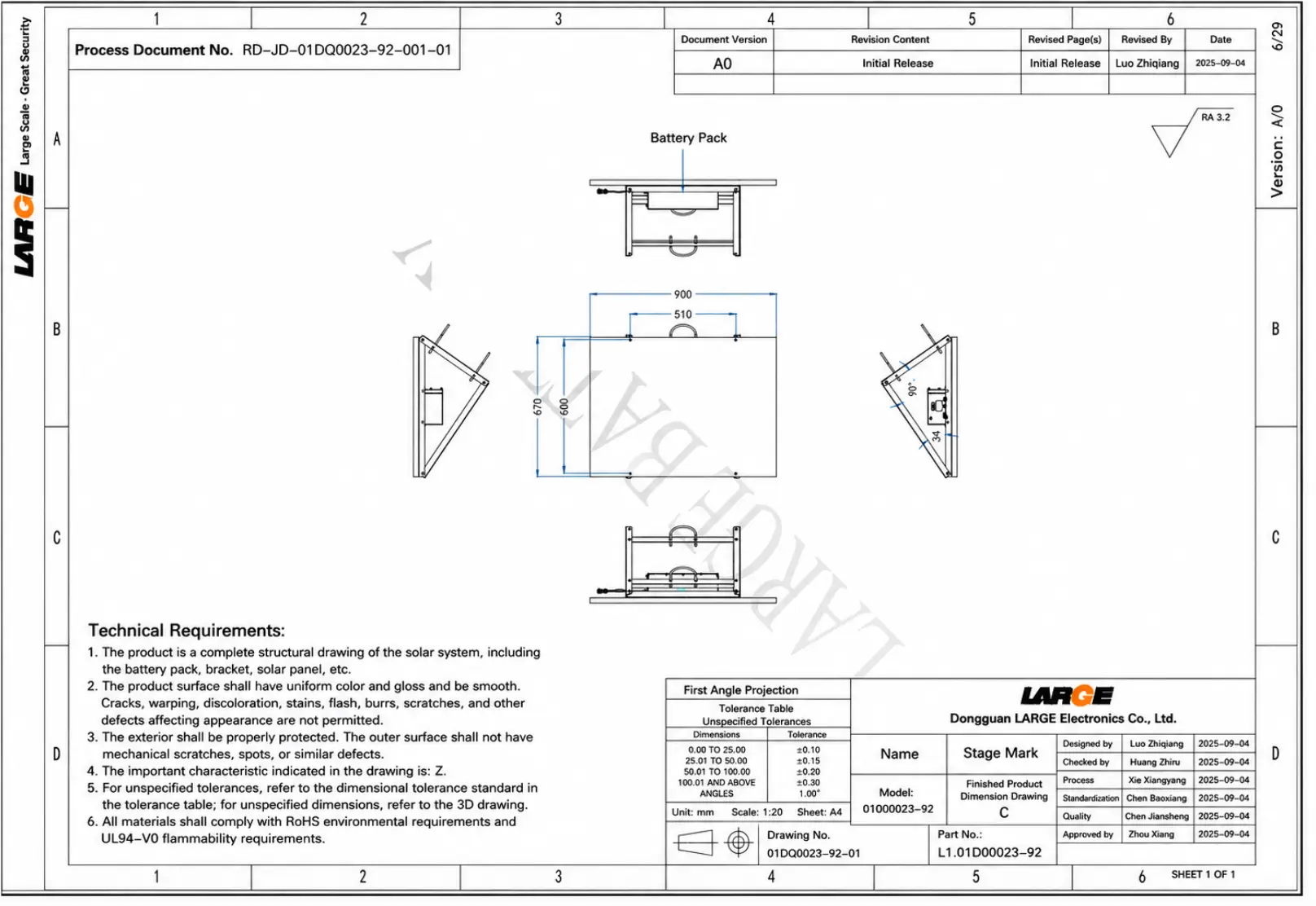

- Integrated solar panel, battery pack, controller, and mounting bracket design
- 12.8V 60Ah battery pack with 716.8Wh energy output
- 120W solar panel supports off-grid charging for outdoor use
- Intelligent BMS protection for safer charge and discharge operation
- IP65 battery pack enclosure for outdoor power applications
Solar Power System Description
This integrated solar power supply system combines a 12.8V 60Ah battery pack, 120W solar panel, MPPT charge controller, and mounting bracket into one compact outdoor power solution. It is designed for projects that require stable off-grid power supply, easier installation, and reliable energy storage in outdoor environments.
The system uses a lithium battery pack with intelligent BMS protection to support safer charging, discharging, over-current, over-voltage, and temperature protection. With IP65 protection for the battery pack and MPPT solar charging control, it helps B2B customers reduce system integration work and improve project deployment efficiency.
For customized projects, this product can be developed as a custom solar battery pack, outdoor solar power supply system, or integrated solar energy storage solution according to required voltage, capacity, enclosure, connector, cable, and mounting structure.
Solar Power System Data Sheet
| Item | Specification |
|---|---|
| Product Name | Integrated Solar Power Supply System |
| Product Model | 60Ah/12.8V + 120W/18V |
| Battery Cell | 32135 / 15.0Ah / 3.2V |
| Battery Type | Lithium-ion / LiFePO4 Battery Pack |
| Battery Configuration | 4S Intelligent BMS System |
| Nominal Capacity | 60.0Ah |
| Rated Capacity | 56.0Ah |
| Energy | 716.8Wh |
| Nominal Voltage | 12.8V |
| Open Voltage | 12.8V–13.5V |
| Charge Voltage | 14.6V |
| Standard Charge Current | 11.2A |
| Max Continuous Charge Current | 15.0A |
| Standard Discharge Current | 11.2A |
| Max Continuous Discharge Current | 15.0A |
| Discharge Cut-off Voltage | 10.0V |
| Charge Temperature | 0℃–50℃ |
| Discharge Temperature | -20℃–60℃ |
| Storage Temperature | -20℃–45℃, less than 3 months |
| IP Protection | IP65 |
| Battery Pack Weight | About 8.00kg |
| Solar Panel | 120W / 18V |
| Solar Controller Type | MPPT |
| Controller Model | 12V / 10A |
| Solar Input Voltage | ≤50V |
| Max Charging Current | 10A |
| Rated PV Input Power | 130W |
| Tracking Efficiency | >99% |
| Charging Conversion Efficiency | 97% |
| Controller Waterproof Rating | IP67 |
Solar Power System Applications
This integrated solar power supply system is suitable for outdoor equipment and off-grid power projects that require independent solar charging and battery energy storage. It can be used in remote monitoring systems, outdoor IoT devices, security camera systems, communication equipment, smart agriculture devices, roadside electronic equipment, temporary outdoor installations, and industrial field power supply projects.
For B2B buyers, the integrated design helps reduce separate sourcing of solar panels, battery packs, controllers, brackets, and wiring accessories. It is especially suitable for customers who need a project-ready solar battery system with customized capacity, waterproof structure, cable interface, and installation method.
Get Solar Power System Quote
Looking for a reliable integrated solar power supply system for your outdoor project? We can support customized solar battery solutions based on your required voltage, battery capacity, solar panel power, working time, connector type, enclosure design, and installation environment.
Send us your equipment power consumption, daily working hours, installation location, and project quantity. Our engineering team can help evaluate the suitable battery capacity, solar panel configuration, BMS protection, and mounting structure for your application.
