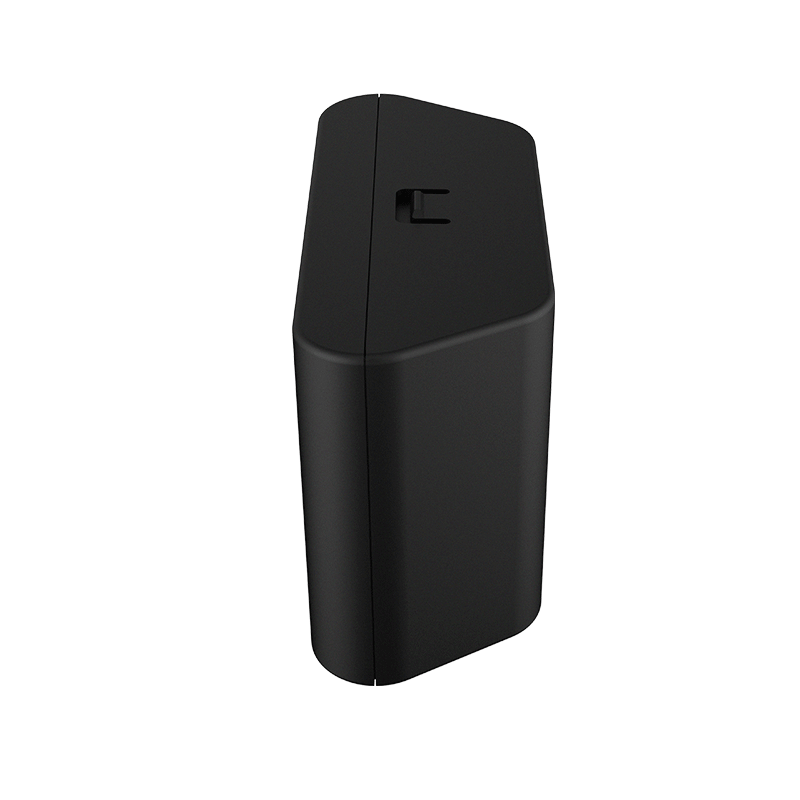

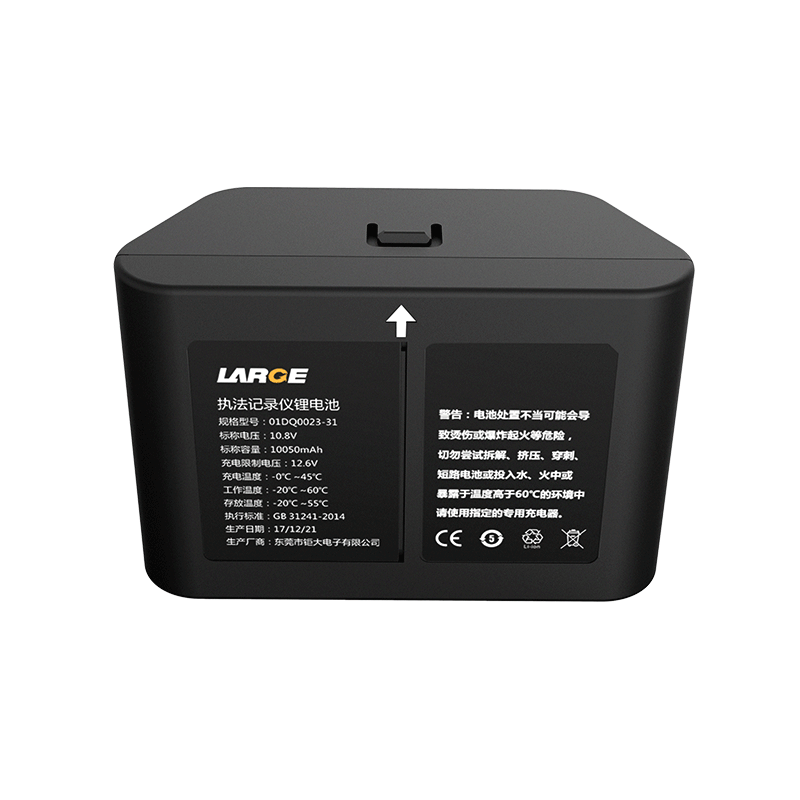

Lithium battery 18650 10.8V 10050mAh for smart city monitoring equipment

Product Number: 01DQ0023-31

Battery cell model: 18650/3.6V/3350mAh

Battery specifications: 18650-3S3P/10.8V/10050mAh

Nominal voltage: 10.8V

Nominal capacity: 10050mAh

Charging voltage: 12.6V

Charging current: ≤5A

Discharge current: 5A

Instantaneous discharge current: 6A

Discharge cut-off voltage: 7.5V

Finished product internal resistance: ≤200mΩ

Battery weight: 0.5Kg

Product dimensions: 105.75*73.68*44.15mm (Max)

Charging temperature: 0-45℃

Discharge temperature: -20 to 60 ℃

Storage temperature: -20 to 35 ℃

Battery housing: ABS+PC

Lithium battery protection: short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, temperature detection, etc

Application fields: Smart city monitoring equipment, security monitoring
