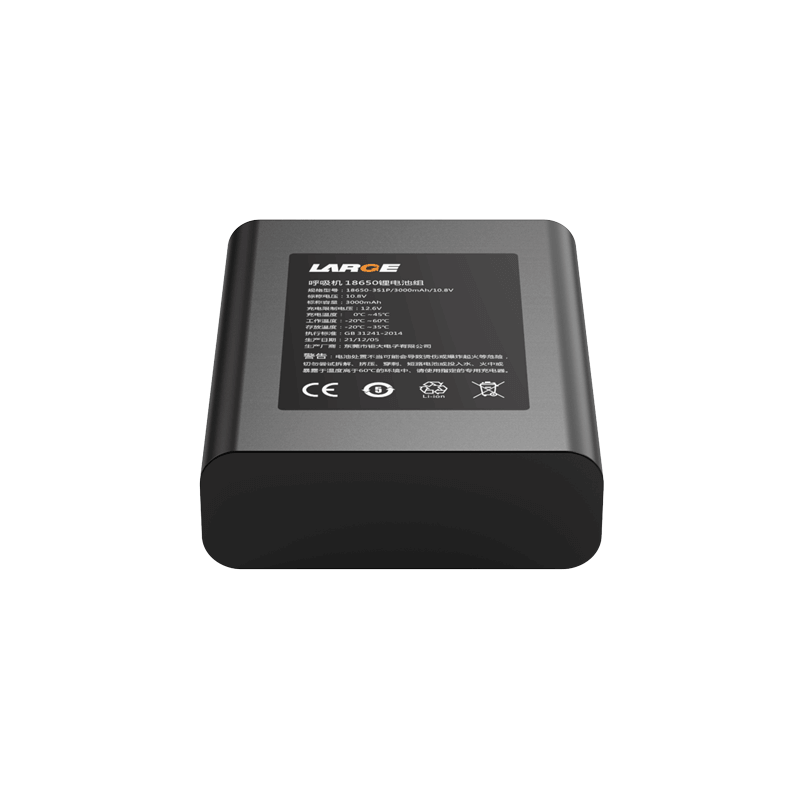

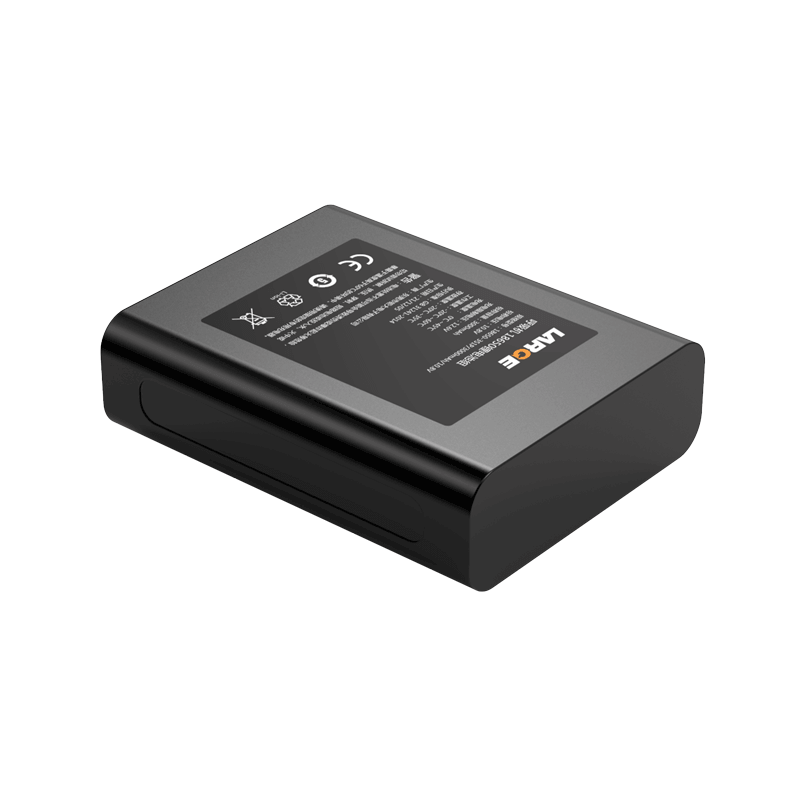

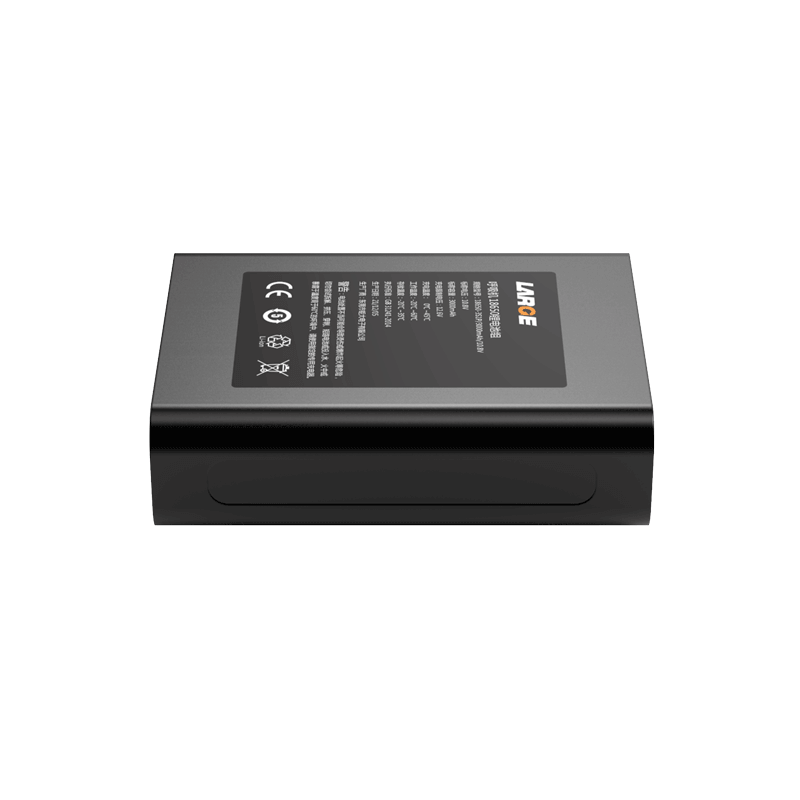

10.8V 3180mAh breathing machine 18650 lithium battery pack
- Product Number: 04DQ0082-01T
- Nominal voltage: 10.8V
- Nominal capacity: 3180mAh
- Battery size: 19.5*56*69.0mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Application field: Medical equipment
- Project Number: 04DQ0082-01T
- Battery cell model: NCR18650BD/3180mAh/3.6V
- Battery specification: 18650-3S1P/3000mAh/10.8V
- Nominal voltage: 10.8V
- Nominal capacity: 3180mAh
- Charging voltage: 12.6V
- Charging current: ≤0.909A
- Discharge current: 2.0A
- Instantaneous discharge current: 5.0A
- Discharge cut-off voltage: 7.50V
- Finished product internal resistance: ≤250mΩ
- Battery weight: 160g
- Product dimensions: 19.5*56*69.0mm
- Charging temperature: 0-45℃
- Discharge temperature: -20 to 60℃
- Storage temperature: -20 to 35℃
- Battery case: /
- Intelligent lithium battery protection: power calculation, short-circuit protection, overcharge protection, overdischarge protection, overcurrent protection, etc
- Application field: Ventilator
