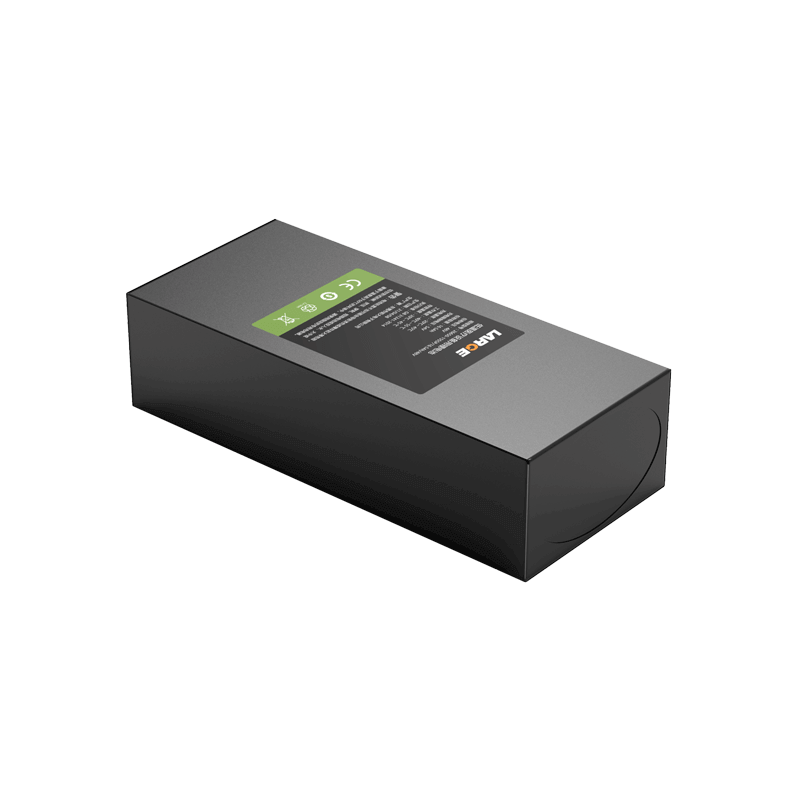

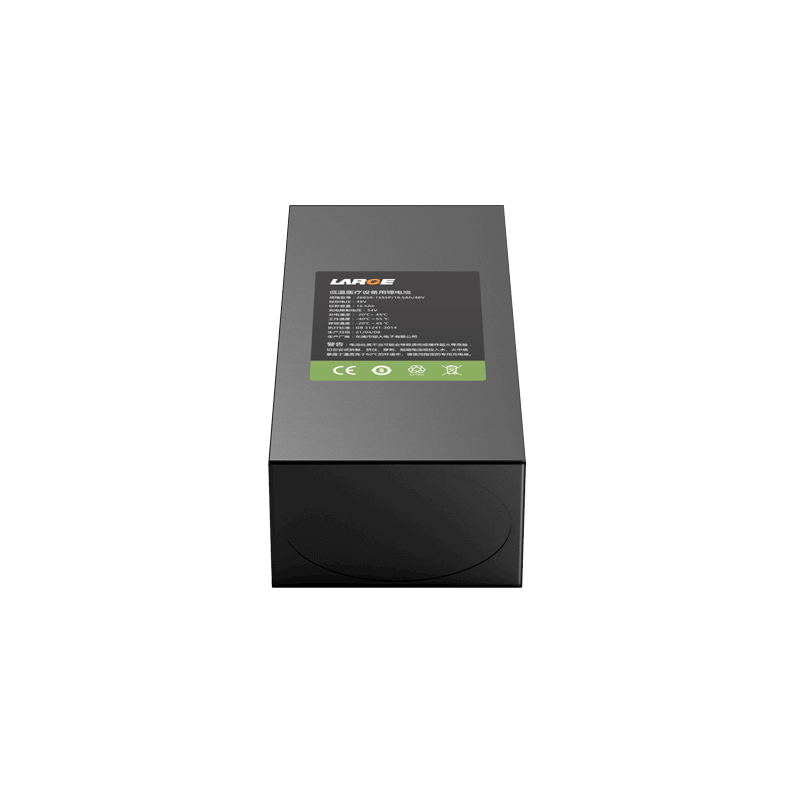

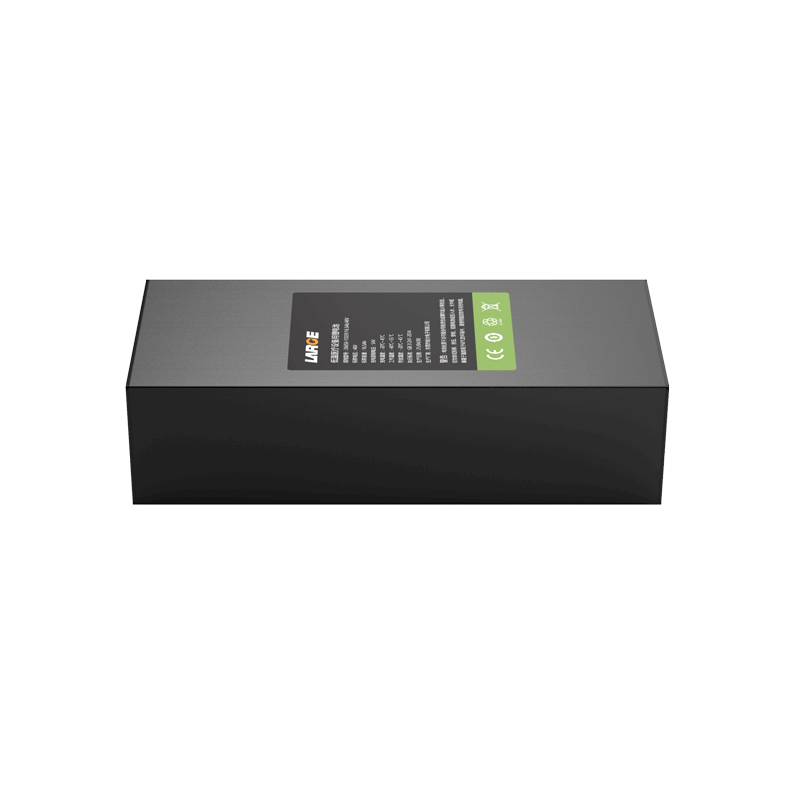

Custom Lithium ion Battery Pack
Product number: 40AQ016-01
Cell model: IFR26650G2X/3300mAh/3.2V
Battery specification: 26650-15S5P/ 16.5AH /48V
Nominal voltage: 48V
Nominal capacity: 16.5Ah
Charging voltage: 54V
Charging current: 3.3A
Discharge current: 2A
Instant discharge current: 16A
Discharge cut-off voltage: 17.5V
Finished product internal resistance: ≤300mΩ
Battery weight: 7500g
Product dimension: 346*152*90mm
Charging temperature: -20 ~ 45℃
Discharge temperature: -40 ~ +55℃
Storage temperature: -20 ~ +45℃
Battery case: PVC
Lithium battery protection: conventional protection +RS485 communication function
Product features
1.Data communication management: Use Meixin software management chip, accurate data transmission, precise temperature control to maximize the elimination of security risks;
2.The battery pack has nice safety, good performance and compact structure design;
3.It can accurately monitor the battery power.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
