Low Temperature Battery Manufacturer

Low Temperature Lithium Battery Manufacturer

Charge and Discharge in Low Temperature | Ternary, Lithium Iron Phosphate System

Low temperature lithium battery is a special battery specially developed for the inherent temperature defect of chemical power supply. Adopting innovative design concept, it has advanced formula system and materials, rigorous manufacturing process and method, overcomes many technical bottlenecks, develops a series of low-temperature lithium battery products.

1.-40℃ 0.2C discharge capacity ≥90%
2.-50℃ 0.2C discharge capacity ≥75%
3.Low temperature charge and discharge: -20℃ charge and -40℃ discharge
4.Low temperature high rate: -40℃ 5C continuous discharge, capacity retention rate ≥80%
5.Low temperature over acupuncture: over acupuncture, heavy impact and other safety tests
6.Low temperature high energy density: about 220~240Wh/kg
7.Stable operation at low temperature of -40~55℃

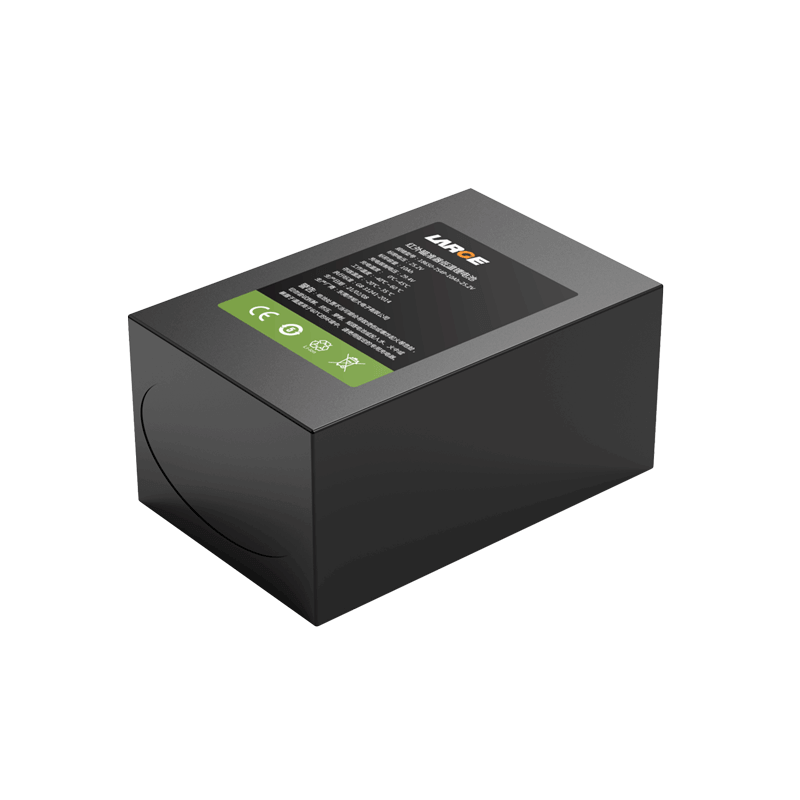

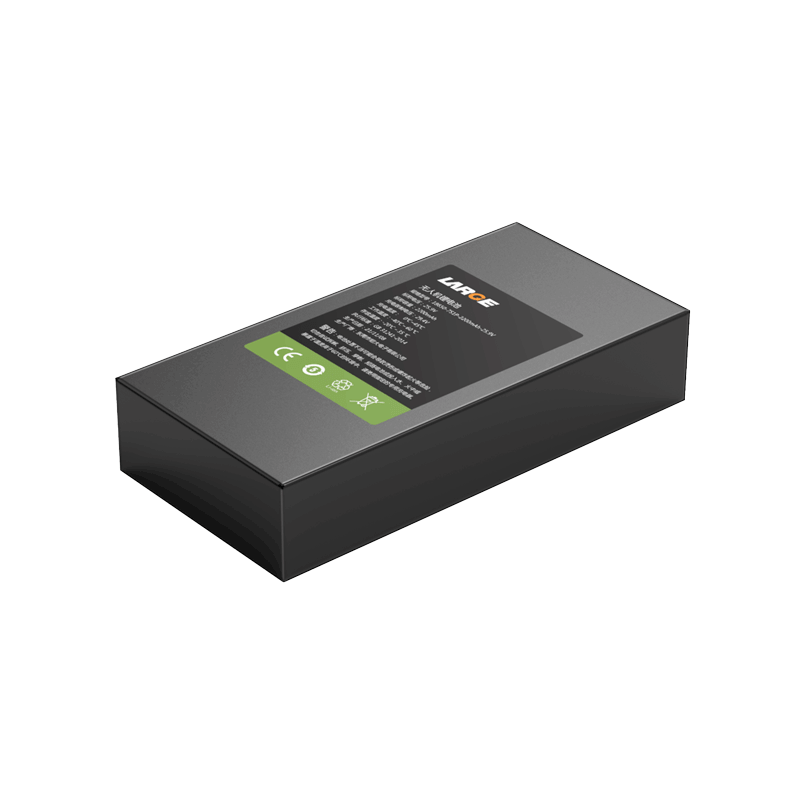

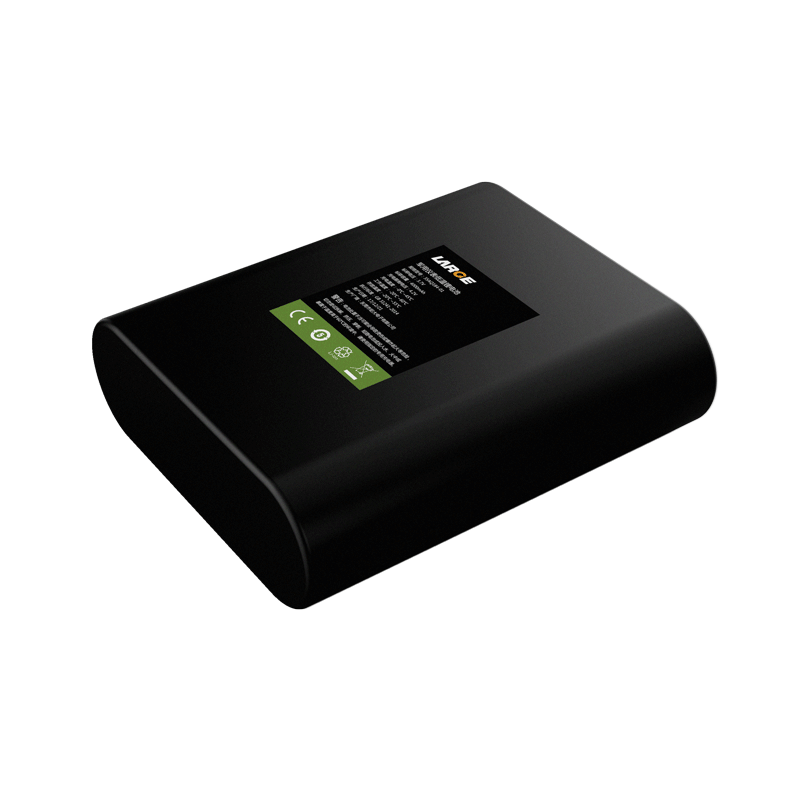

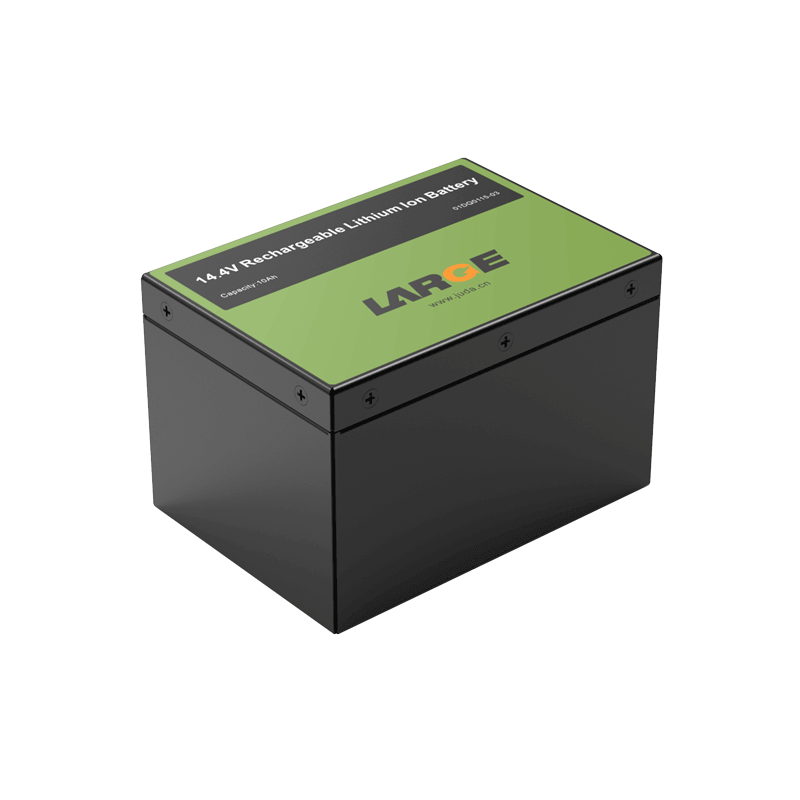

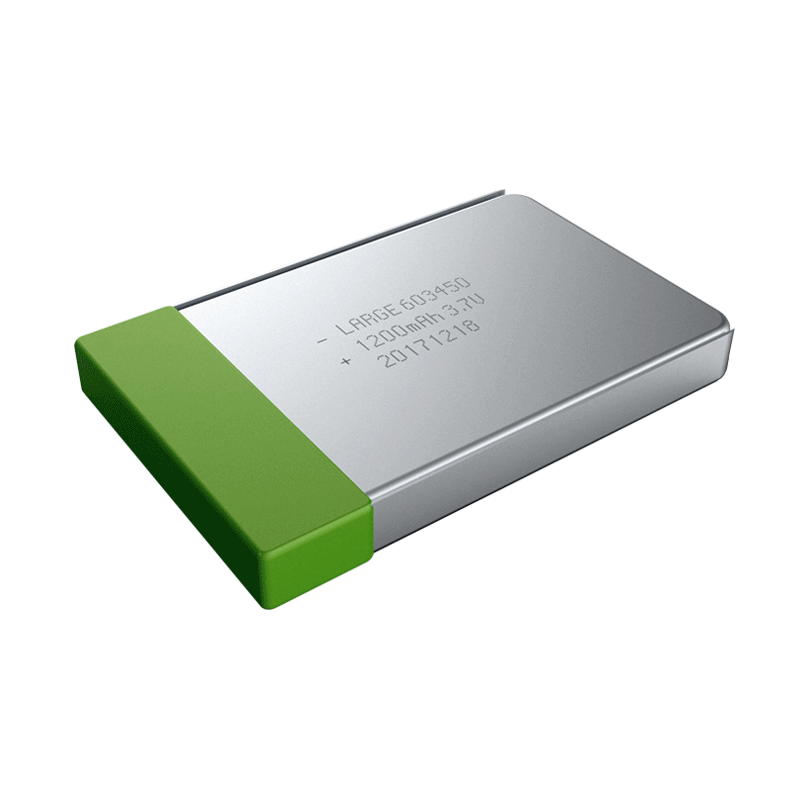

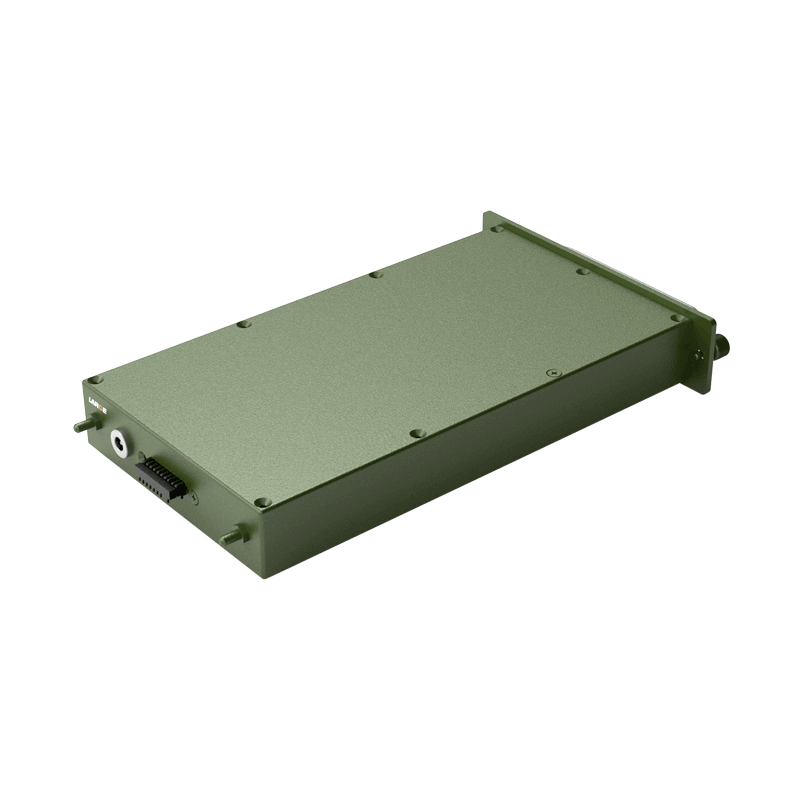

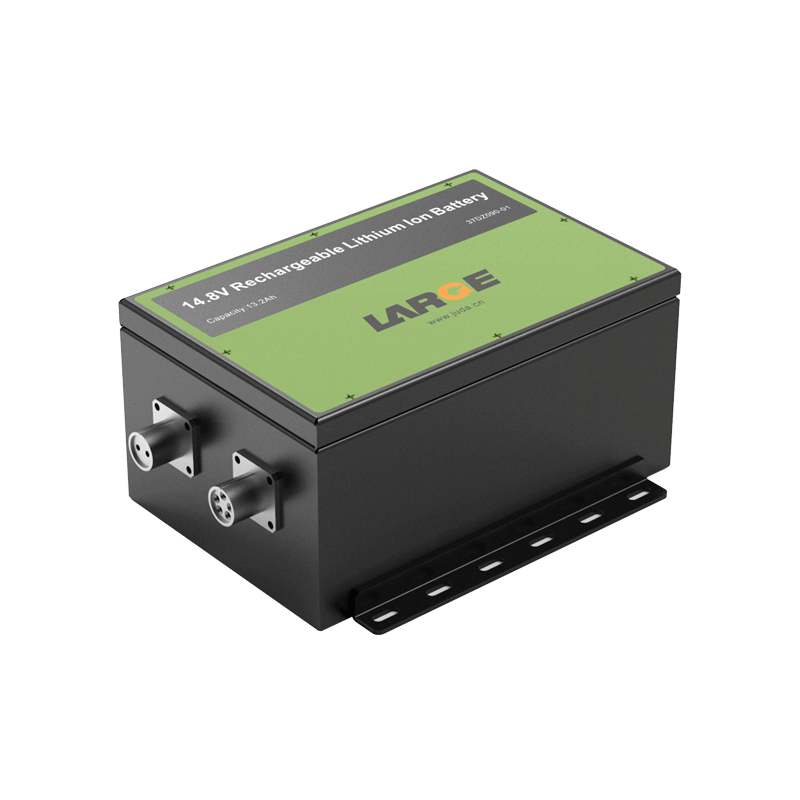

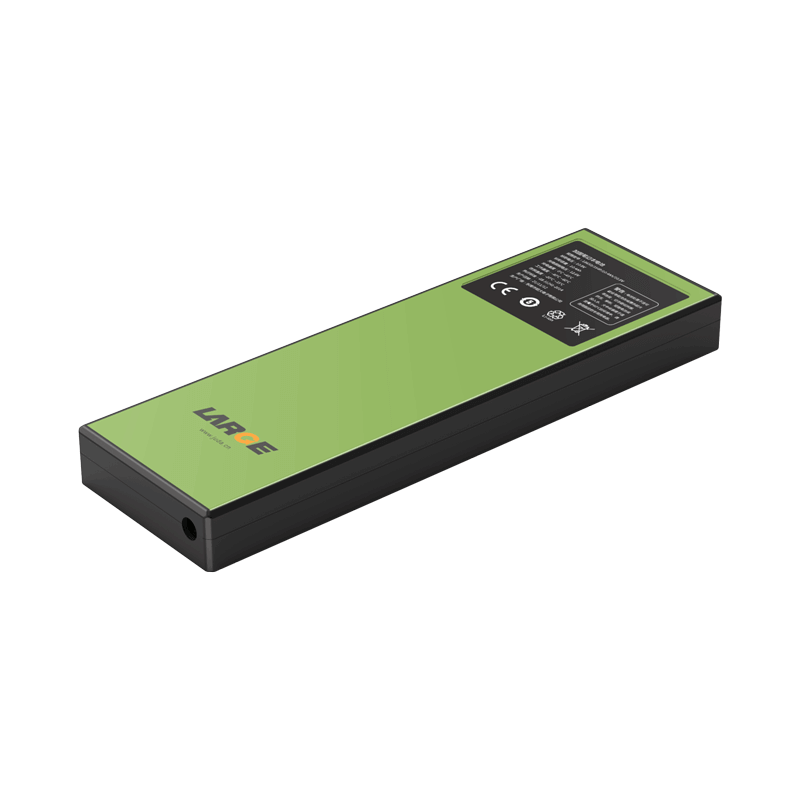

Low Temperature Battery Products

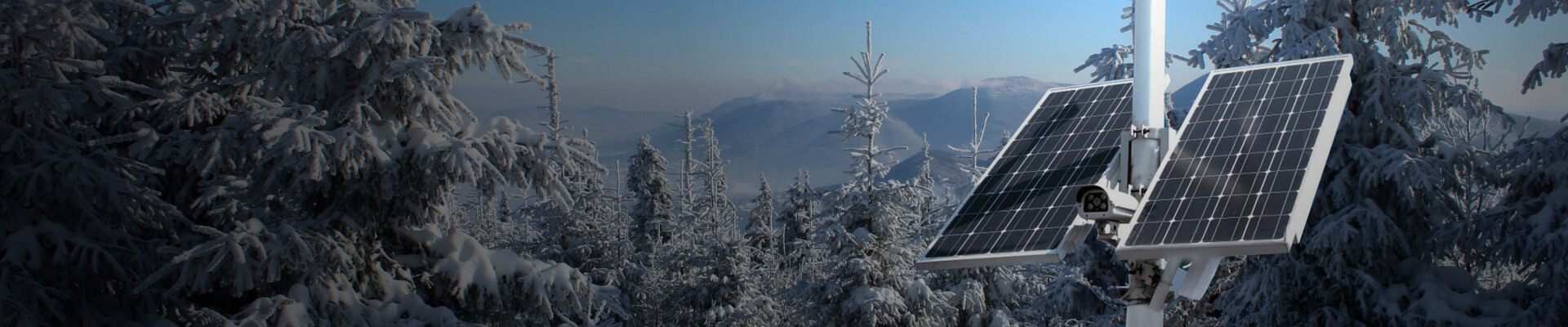

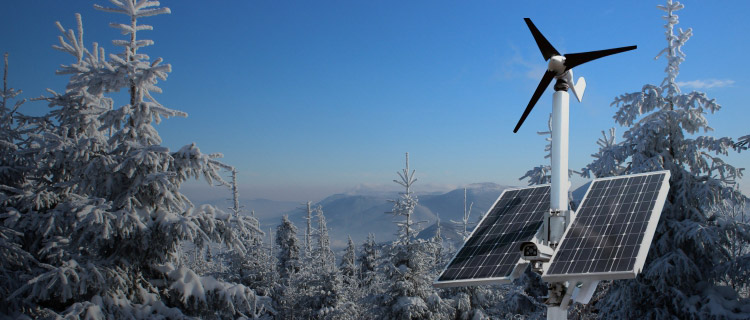

Low Temperature Battery Applications

Polar research, frigid zone rescue, special equipment (robot, UAV), cold storage monitoring system, motion camera, power communication, public security, medical electronics, electric warm shoes and clothing, etc., which is especially suitable for the equipment in the temperate zone, cold zone and low temperature area.

Low Temperature Battery Applications

Custom Lithium Batery Design

Battery Cell Selection + PCM & BMS + Structure Design + Chargers

We provide full turn-key services in product development, production of batteries, chargers, and batteries with embedded BMS control.
  • Cell Selection and Cell Quality Detection

  • Design of shape and internal structure

  • Electrical performance design:protection function, accurate power display, host communication, certification, battery set-making, charging

  • Charger design:External or built-in charger

  • Mid-term overall re-evaluation

  • First sample

  • Basic electrical performance test, and test under different environmental conditions

#

Low Temperature Battery Feature

Low Temperature Lithium Battery Features

Characteristics of Low Temperature Lithium Polymer Battery

1.Low temperature discharge performance: -50℃ 0.2C discharge capacity ≥60%; -40℃ 0.2C discharge capacity ≥80%;
2.Wide operating temperature range: -50℃~50℃;
3.Excellent low temperature cycle performance, 0.5C charge and discharge at -30℃, the capacity remains over 85% after 300 cycles;
4.High safety performance, UL/CE/UN certification;
5.Flexible size: It can be customized in size and shape according to customer needs;
6.Compared with the traditional lithium polymer battery, it break the discharge temperature limit of -20℃~ 60℃.
7.It has the capacity of mass production, and the consistency of the battery is good.
8. It can produce a large current at -50℃ and maintain a large capacity.
9.It can still maintain its excellent performance at -50℃ working environment;

Low temperature lithium iron phosphate battery features:
Use superposition technology with low internal resistance;
Low temperature performance: -40℃ 0.5C discharge capacity ≥60%; -35℃ 0.3c discharge capacity ≥70%;
Wide operating temperature range: -40℃~55℃;
It can be charged at -20℃;
Use lithium iron phosphate chemical substance with high safety and long cycle life;
Flexible size: Design the size and shape of the battery according to customer requirements.

Low Temperature Battery Related Problems
