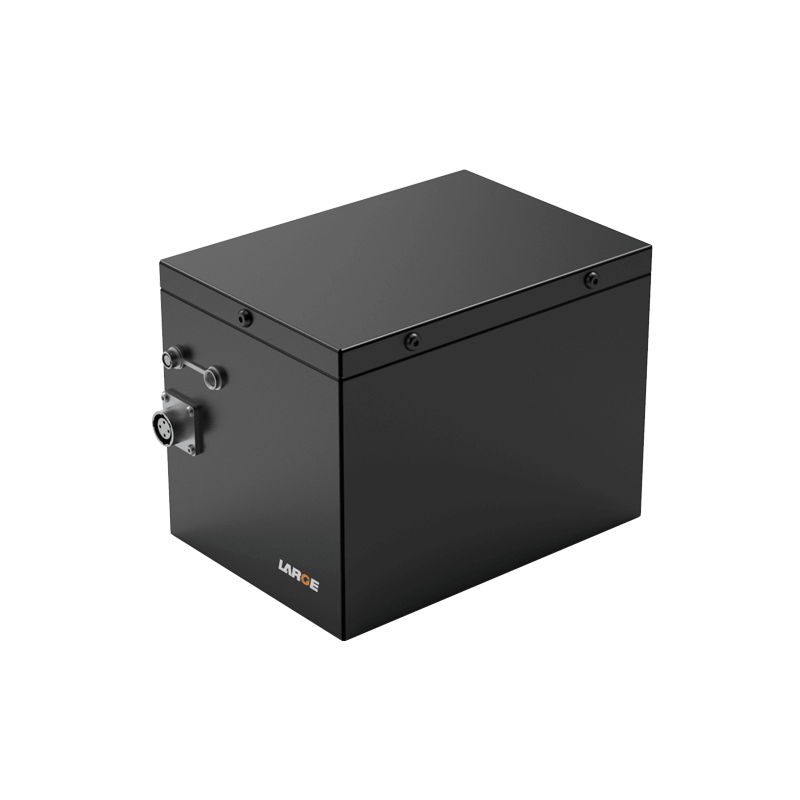

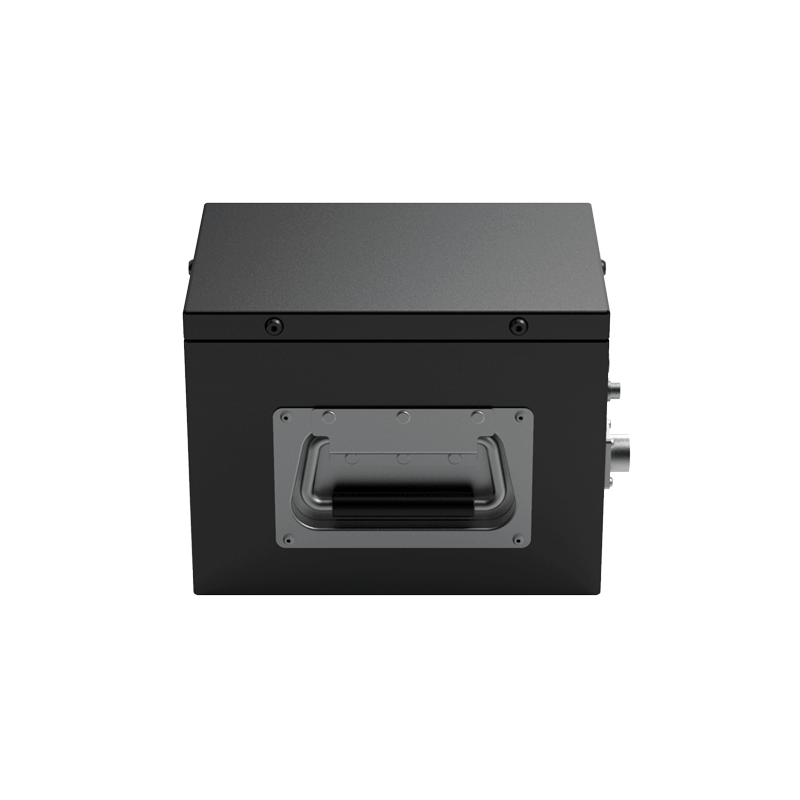

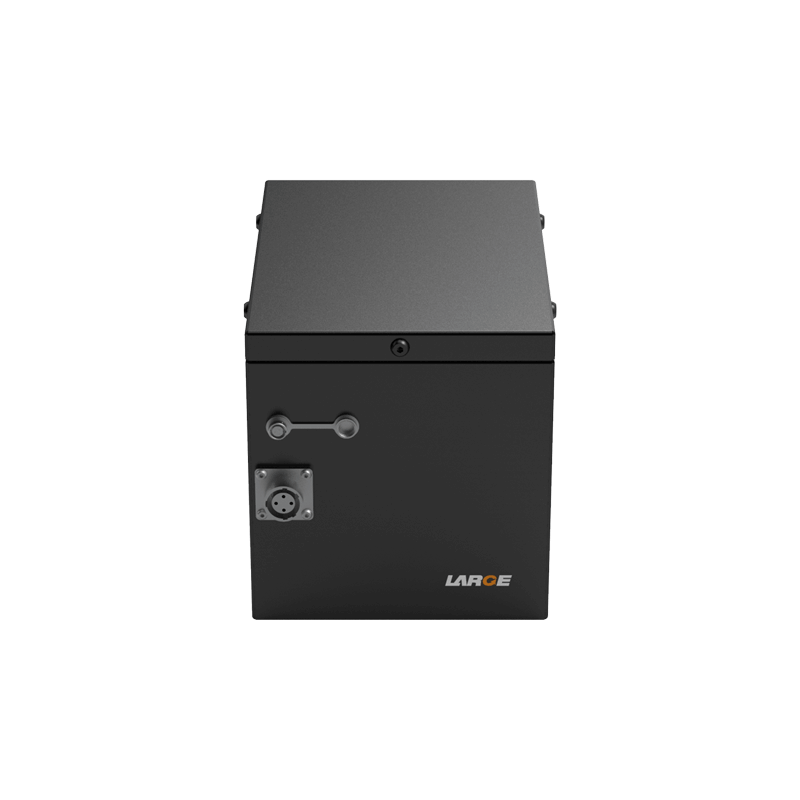

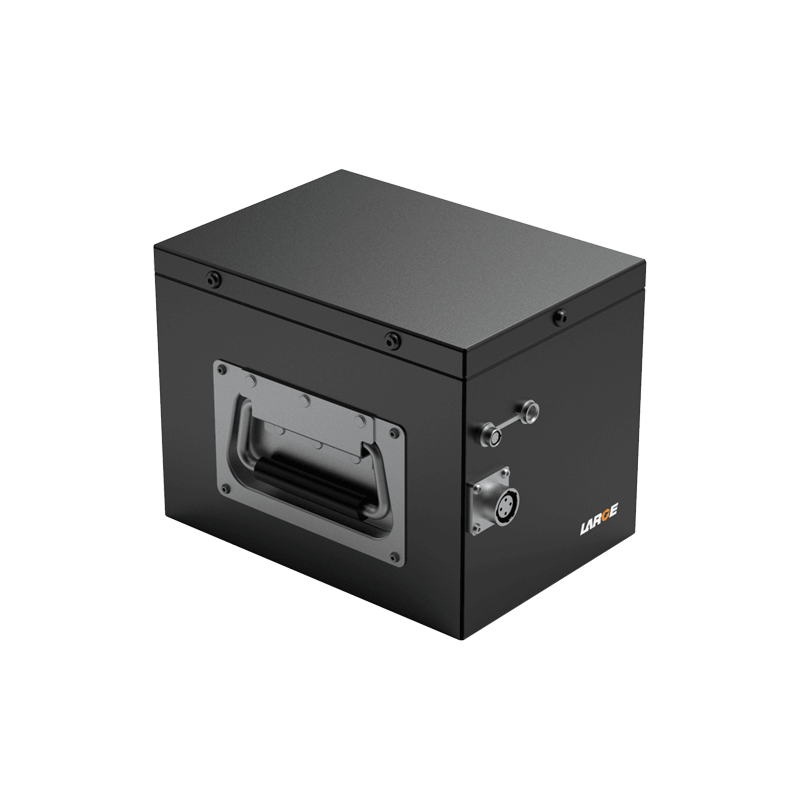

Custom Lithium ion Battery Pack
Project number: 08DQ0082-13
Cell model: IFR26650/4000mah / 3.2V-bak
Battery specification: 26650-4S13P/52Ah/12.8V
Nominal voltage: 12.8V
Nominal capacity: 54Ah
Charging voltage: 14.4V
Charging current: ≤ 10.4A
Discharge current: 30.0A
Instantaneous discharge current: 35.0A
Discharge cut-off voltage: 9.20V
Internal resistance of finished product: ≤100m ω
Battery weight: 5000g
Product dimension: 150*160*210mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Intelligent lithium battery protection: power management, short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Emergency transport car, medical equipment
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
