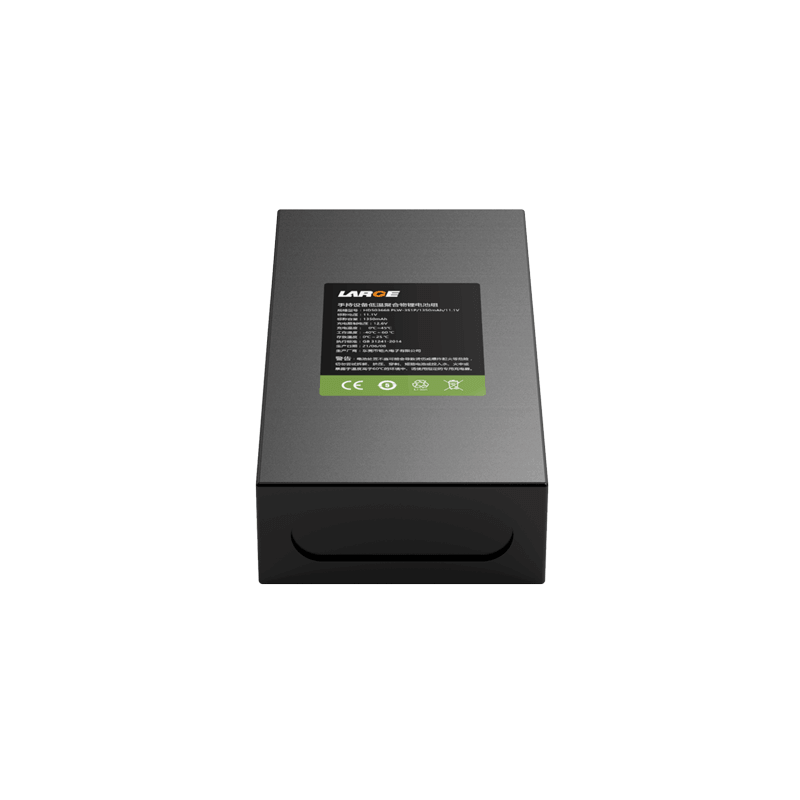

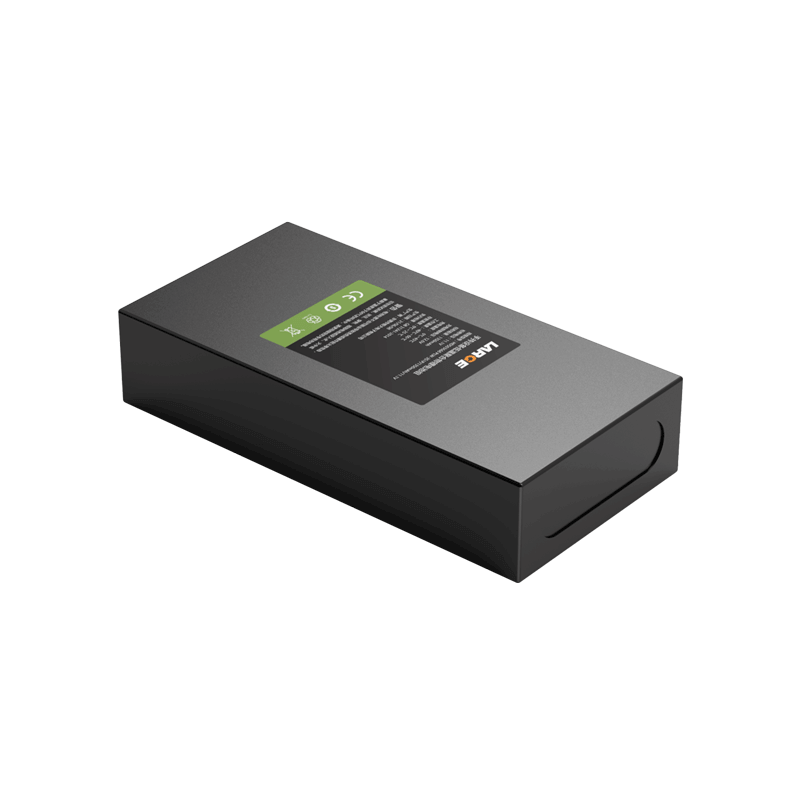

Custom Lithium ion Battery Pack
Project number: 01DQ0120-02
Cell model: 503668/1350mah /3.7V- low temperature
Battery specification: HD503668 PLW-3S1P/1350mAh/11.1V
Nominal voltage: 11.1V
Nominal capacity: 1350mAh
Charging voltage: 12.6V charging
Charging current: ≤675mA
Discharge current: 1350mA
Instantaneous discharge current: 2.7A
Discharge cut-off voltage: 3.0V
Internal resistance: ≤250mΩ
Battery weight: 100G
Product dimension: 15.5*36.5*73.0mm
Charging temperature: 0 ~ 45℃
Discharge temperature: -40 ~ 60℃
Storage temperature: 0 to 25 ° C
Intelligent lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Handheld devices
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
