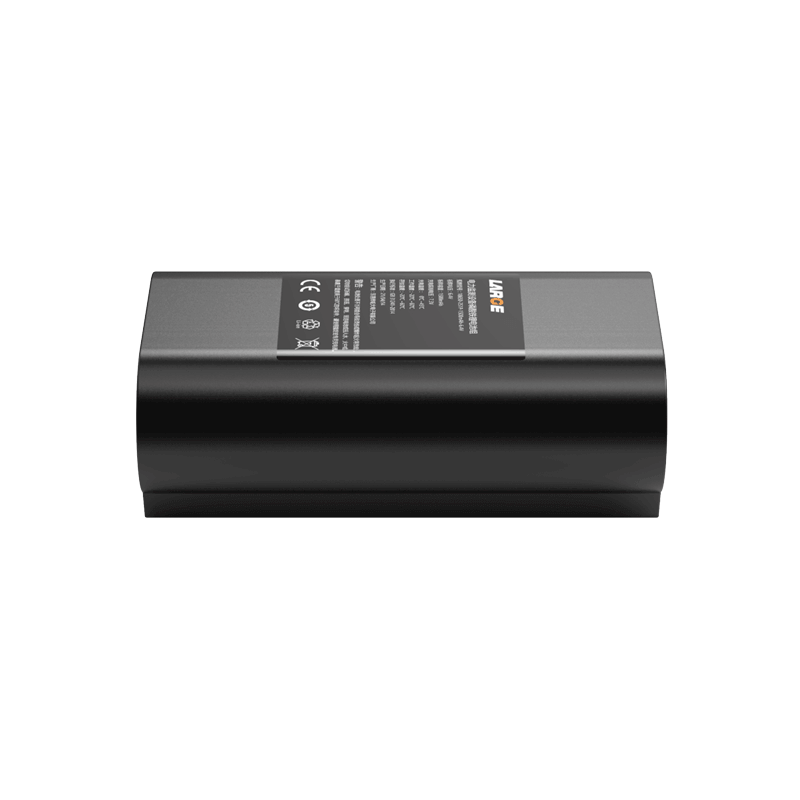

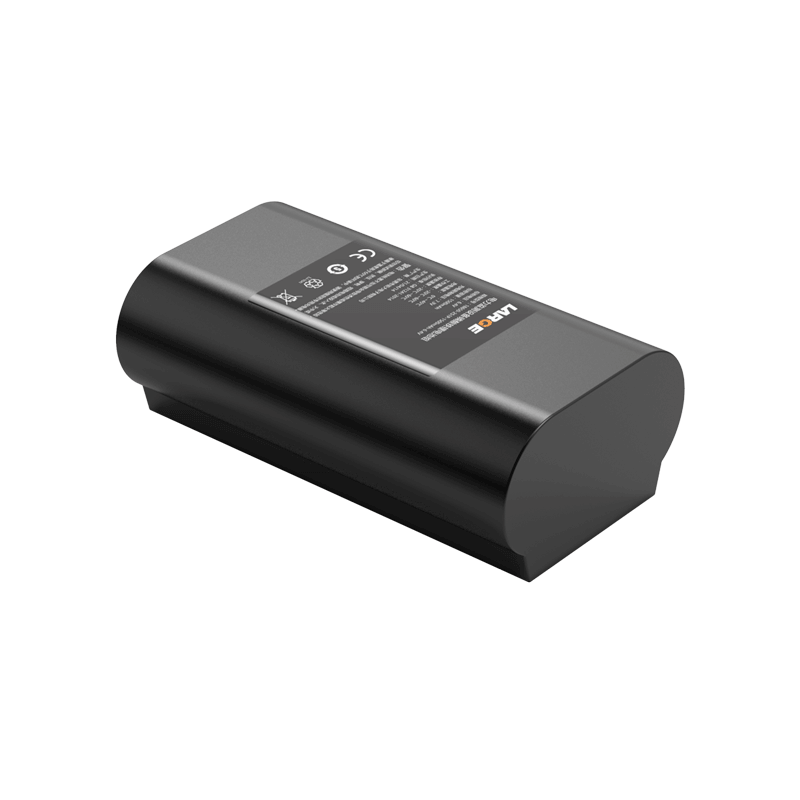

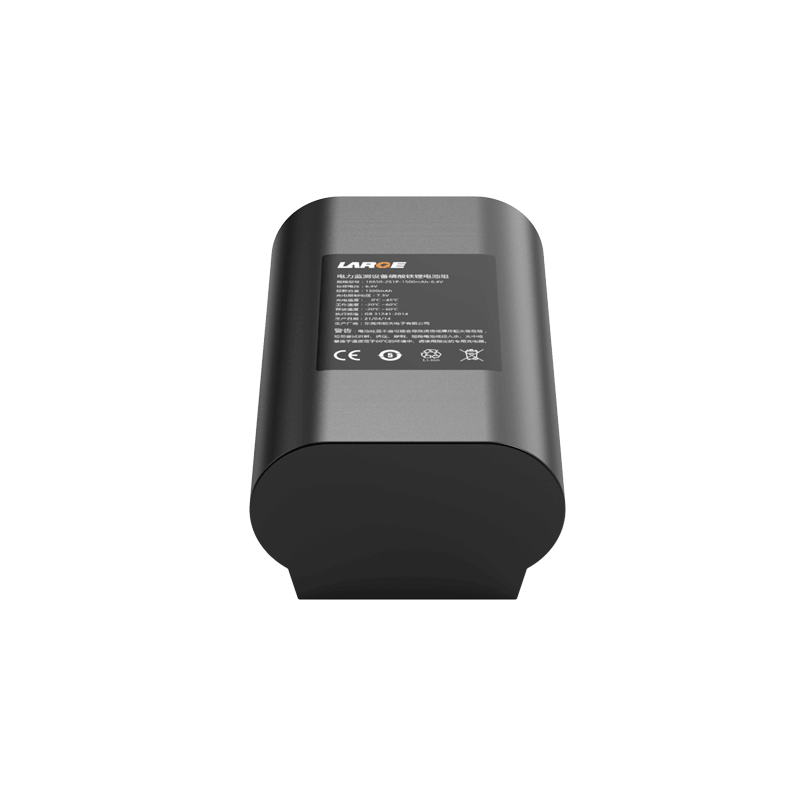

Product number: 34AQ020-03
Cell model: 18650-1500MAH-3.2V
Battery specification: 18650-2S1P-1500MAH-6.4V
Product dimension: 67*37.5*19.7mm (Max)
Nominal voltage: 6.4V
Nominal capacity: 1500mAh
Charging voltage: 7.3V
Charging current: ≤1.6A
Discharge current: ≤ 1.6a
Discharge cut-off voltage: 5.0V
Product internal resistance: ≤280mΩ
Battery weight: 610g
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Power testing equipment
