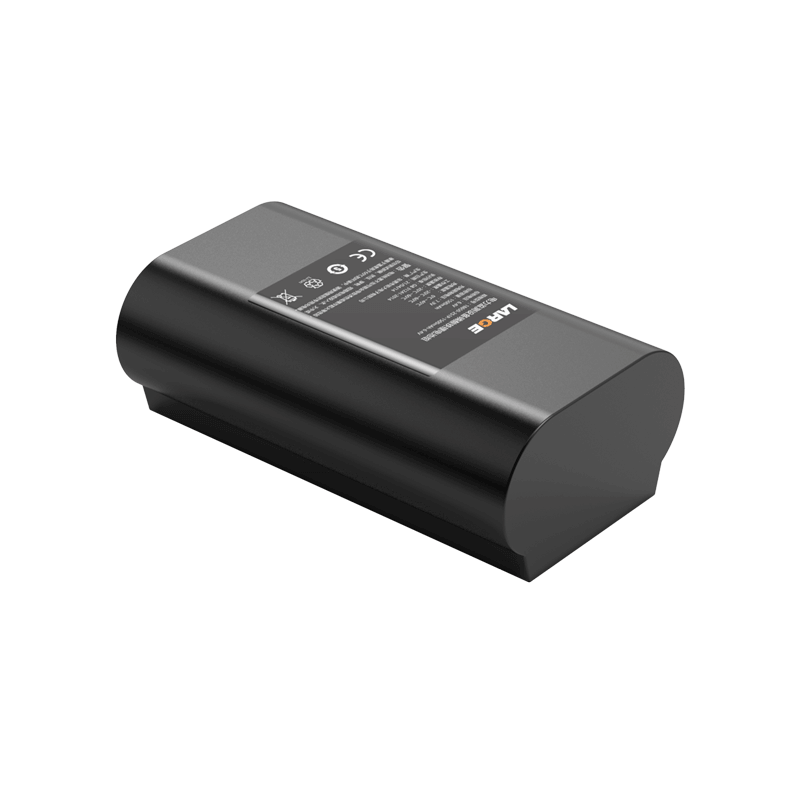

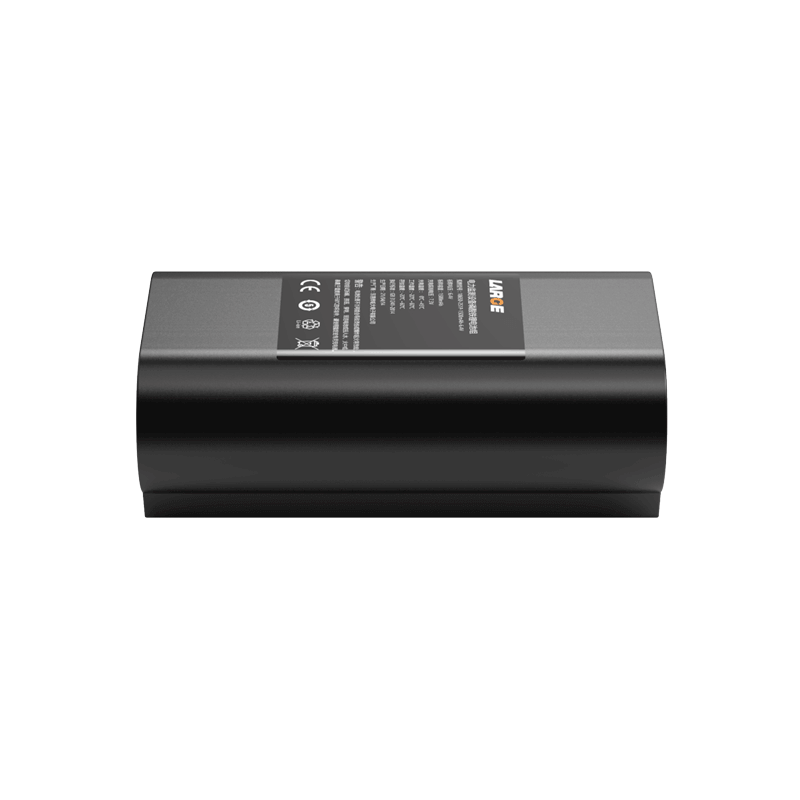

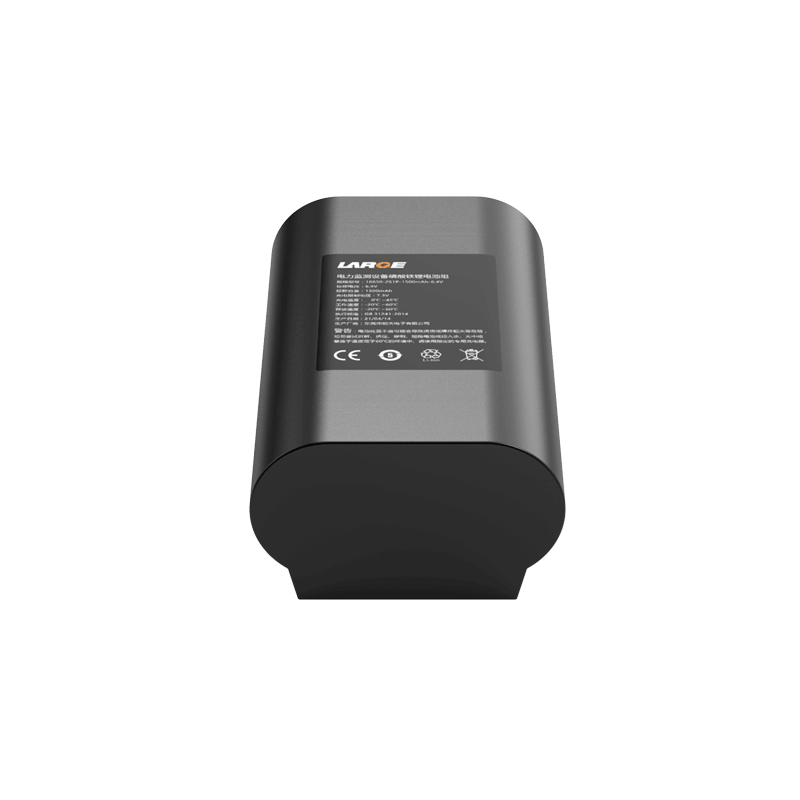

Product Number: 34AQ020-04
Cell model: 18650-1500MAH-3.2V
Battery specification: 18650-2S1P-1500MAH-6.4V
Product dimension: 67*37.5*21.9mm (Max)
Nominal voltage: 6.4V
Nominal capacity: 1500mAh
Charging voltage: 7.3V
Charging current: ≤0.8A
Discharge current: ≤0.8A
Discharge cut-off voltage: 4.0V
Product internal resistance: ≤280mΩ
Battery weight: 110G
Charging temperature: 0 ~ 45℃
Discharge temperature: -20 ~ 60 ℃
Storage temperature: -20 to 35 ° C
Battery package: blue PVC heat shrinkable film package
Lithium battery protection: short circuit protection, over charge protection, over discharge protection, over current protection, etc.
Application: Power testing equipment
Product features
1.Blue PVC heat shrinkable film package is simple, reliable and easy to install.
2.Connector plug terminal: JST plug output mode increases the reliability of electrical conduction.
3.Battery management: Adopt imported protective chip, which has high stability, high precision monitoring, precise control, ESD protection, temperature protection and other functions, so as to eliminate security risks to the greatest extent.
4.Voltameter: The battery comes with DS2781-HDQ communication protocol, allowing users to read battery charge information via HDQ.
5.The battery has good security, nice discharge performance and long cycle life.
6.The battery pack has long cycle life, which conforms to the principle of low carbon, energy conservation and environmental protection.
We custom battery solutions for every application Please fill out the form below to request a quote. Our design team will be in touch within 24 hours to discuss your specifications.
